HDMI Input/Output Port Specifications
Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps signals
›
See Supported standard 4K Video Formats table
›
Supports HDR10
›
Compliant with HDCP 2.2 and previous
›
Supports lossless compressed audio formats including Dolby
›
Atmos , and DTS-HD Master Audio
® ™
CEC pass-through to selected HDMI source
›
For Display Port sources/monitors, use active converters
›
Supported standard 4K Video Formats:
Resolution
1 4K@24/25/30 [4:4:4] 8bit
2 4K@24/25/30 [4:2:2] 8/10/12bit
3 4K@50/60 [4:2:0] 8bit
4 4K@24/25/30 [4:4:4] 10/12bit
5 4K@50/60 [4:2:2] 8/10/12bit
6 4K@50/60 [4:2:0] 10/12bit
7 4K@50/60 [4:4:4] 8bit
Analog L/R Audio Output
3.5mm stereo jack with de-embedded audio from the selected HDMI source
›
Automatically mutes if audio formatting is not PCM 2ch
›
Optical Audio Output
Optical audio output with de-embedded audio from the selected HDMI source
›
SPDIF IEC 60958 format
›
Supports multi-channel Dolby ® and DTS ™
›
Automatically mutes if audio formatting is not PCM, Dolby
›
® TrueHD, Dolby ® Digital Plus, Dolby
Bandwidth
< 10.2Gbps
< 10.2Gbps
< 10.2Gbps
< 18Gbps
< 18Gbps
< 18Gbps
< 18Gbps
surround formats up to 5.1
, or DTS
® ™
Audio Ports Specifications
Each audio output drives audio signals up to 2VRMS with a sampling rate of 192KHz
›
There are no volume or tone control features
›
There are no DSP features
›
Audio Input
Signal Format
2ch PCM Pass-Through
Multi-Channel PCM Front L/R Pass-Through
Dolby DTS
HD Audio

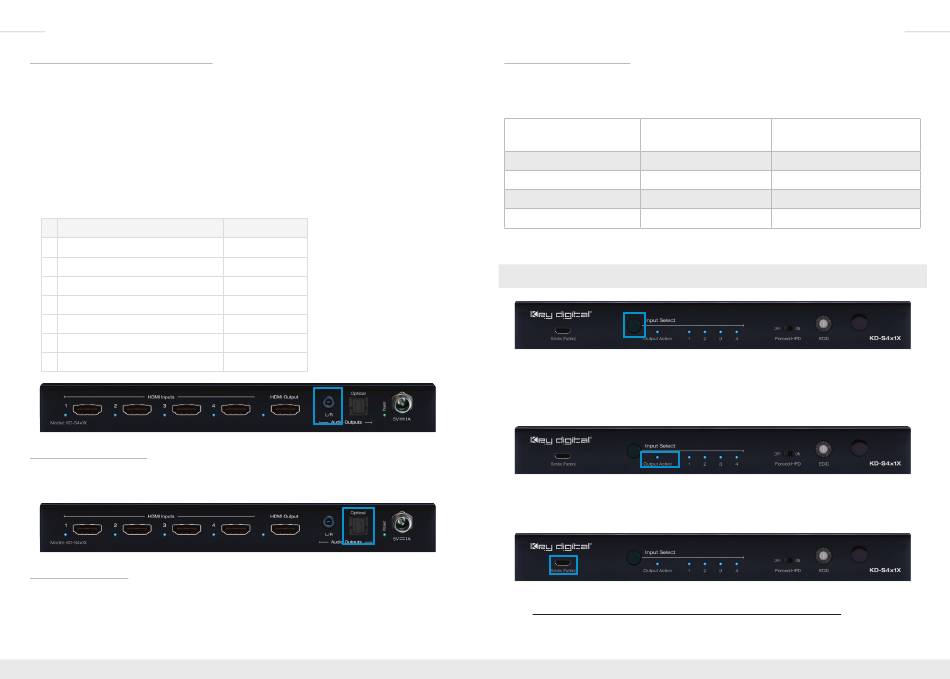

FRONT PANEL

Input Select button
Used to choose which connected source is output to the connected display/device
»
Selecting a source with the Input Select button or IR remote will disable Auto Sensing Mode
»
To factory reset the unit, press and hold for approx. 10 seconds until the front LEDs blink twice
»
Output Active LED
Blue LED illuminates solid when Hot Plug Detection (HPD) is received from the connected display/
»
output device
Service (Factory) USB
This port is for factory servicing only. Does not have standard USB functionality.
»
Audio L/R Digital Audio Output
Output (Optical)
Pass-Though
MUTE
MUTE Pass-Though
MUTE MUTE
