4 Channel Security Hubs
Operating Instructions
KD-4PUV
KD-4AUVRX
Four Channel Passive Video
Four Channel Active Video
Transceiver
Receiver

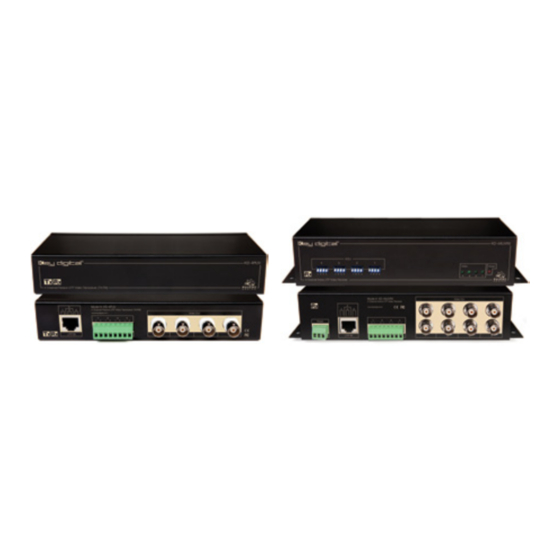

KD-4AUVRX & KD-4PUV are multi-channel video hubs that allow for the
transmission or reception of Color or Black & White single-channel video signals
up to 4,000 feet (KD-4AUVRX) or 2,600 feet (KD-4PUV) with standard, unshielded
CAT5 cabling.
Advertisement
Table of Contents
Related Manuals for Key Digital FatCAT Tx KD-4PUV
Summary of Contents for Key Digital FatCAT Tx KD-4PUV
-
Page 1: Operating Instructions
4 Channel Security Hubs Operating Instructions KD-4PUV KD-4AUVRX Four Channel Passive Video Four Channel Active Video Transceiver Receiver KD-4AUVRX & KD-4PUV are multi-channel video hubs that allow for the transmission or reception of Color or Black & White single-channel video signals up to 4,000 feet (KD-4AUVRX) or 2,600 feet (KD-4PUV) with standard, unshielded CAT5 cabling. -
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . How to Contact Key Digital . -
Page 3: Kd-4Auvrx
Page 1 KD-4AUVRX Four Channel Active Video Receiver Quick Setup Guide Step 1: Begin with all input/output devices turned off with power cables removed Step 2: Connect video source, CAT5/6/7 cabling, and Power into Active or Passive Transmitter Baluns Step 3: Insert twisted pair wires into “UTP In” Phoenix Connector or “UTP In” CAT5/6/7 RJ45 connector as instructed on chassis above RJ45 input. -
Page 4: About Kd-4Auvrx
➔ KD-AUVTX Extends video up to 4,000 ft using a standard CAT cable when used ➔ with an Active Transmitter (Key Digital Model KD-AUVTX). KD-4AUVRX extends video up to 2,600 ft when used with a Passive Transmitter ➔ Balun (Key Digital Models KD-PVB and KD-4PUV) Manual Distance Adjustment switches for optimum picture quality at any length ➔... -
Page 5: Power Connections
Negative (-) polarity can be inserted into any of the two “Power” inputs. Insert Ground wire into Pin 3 if desired. Uses with Active Transmitters KD-4AUVRX units can be coupled with Key Digital’s KD-AUVTX Active Video ➔ Transmitter as part of a multi-camera CCTV system. Using the KD-4AUVRX with the KD-AUVTX Active Hub will provide quality video up to 4,000 ft. -
Page 6: Distance Adjustment Settings
Page 4 Security Cam Security Cam Security Cam Security Cam Video Video Video Video KD-4PUV CAT5/6/7 KD-4AUVRX CAT5/6/7 4,000’ Video CAT5/6/7 Monitor Monitor Monitor Monitor Video Video Video Video Video Video Video Video Distance Adjustment Settings Dip Switch Configurations: Configuration Distance 1111 1’-150’... -
Page 7: Mechanical / Technical Specifications
Page 5 Mechanical / Technical Specifications Input 4 twisted pair from CAT5 line In on Phoenix type stripping and cramping connector or 1 CAT5 on RJ45 Connector Output BNC connector for Composite Video 1Vpp with 75Ω at display side or Audio SPDIF or any other format of video, audio, RS-232 or IR signaling. -
Page 8: Kd-4Puv
Page 6 KD-4PUV Four Channel Passive Video Transceiver Quick Setup Guide Step 1: Begin with all input/output devices turned off with power cables removed. Step 2: Connect video source and CAT5/6/7 cabling to Transmitter/Receiver Baluns Step 3: Insert twisted pair wires into “UTP In” Phoenix Connector or “UTP In” CAT5/6/7 RJ45 connector as instructed on chassis above RJ45 input. -
Page 9: Installation And Operation
Active Receiver (Key Digital models KD-AUVRX or KD-4AUVRX). Extends Black & White video up to 1,300 ft using a standard CAT cable when ➔ paired with a Passive Transmitter Balun (Key Digital models KD-PVB or KD-4PUV). Built-in interference rejection enables wire bundling with other low-voltage lines ➔... -
Page 10: Uses With Passive Multi-Channel Receivers
Note: The usage of a KD-4PUV balun to receive video signals from an Active Transmitter (Key Digital model KD-AUVTX) is not recommended. For best results in an active/passive coupling, it is recommended that the KD-4PUV Passive Video Balun be used as the Transmitter, while the KD-AUVRX or KD-4AUVRX Active Video Receiver Baluns be used as the Receiver. -
Page 11: Mechanical / Technical Specifications
Page 9 Mechanical / Technical Specifications Tx Input / Rx Output 1 BNC connector for Composite Video 1Vpp with 75Ω at display side or Audio SPDIF or any other format of video, audio, RS-232 or IR signaling. Tx Output / Rx Input 1 twisted pair from CAT5 line In on Phoenix type stripping and cramping connector or 1 CAT5 on RJ45 Connector... - Page 12 Page 10 Key Digital Security Products Compatibility Chart ® Passive Active 4-Channel 4-Channel Transceiver Receiver Passive Active Balun Balun Receiver Receiver Passive Transceiver 1300’ 2600’ 1300’ 2600’ Balun Active Video 4000’ 4000’ Balun Recommended Recommended 4-Channel Passive 1300’ 2600’ 1300’...
-
Page 13: Important Product Warnings
Page 1 1 Important Product Warnings: Always test for proper operation of the unit before permanently securing to final location. Connect all cables before providing power to the unit. Safety Instructions. Please be sure to follow these instructions for safe operation of your unit. -
Page 14: How To Contact Key Digital
For system design questions please contact us at: Phone: 914-667-9700 ➔ E-mail: sdg@keydigital.com ➔ Key Digital Trainings For questions about Key Digital Trainings please contact us at: Phone: 914-667-9700 ➔ E-mail: training@keydigital.com ➔ Customer Support For customer support questions please contact us at: Phone: 914-667-9700 ➔... -
Page 15: Warranty
For accounting questions please contact us at: Phone: 914-667-9700 ➔ E-mail: accounting@keydigital.com ➔ Repairs and Warranty Service Should your product require warranty service or repair, please obtain a Key Digital ® Return Material Authorization (RMA) number by contacting us at: Phone: 914-667-9700 ➔... - Page 16 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high quality video imaging is important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
