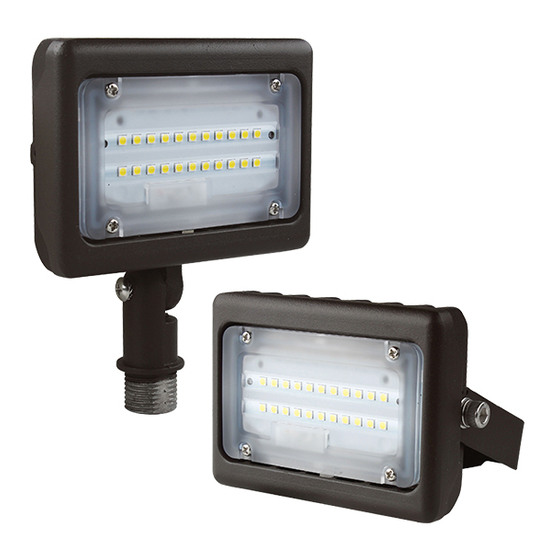

BARRON TRACE-LITE AXL2 Installation Instructions

80-280w

Download this manual

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

When using electrical equipment, basic safety precautions should always be followed including the following:

• DISCONNECT AC POWER SUPPLY BEFORE SERVICING.

• Installation and servicing of this equipment should be performed by qualified service personnel only.

• Ensure that the electrical wiring conforms to the National Electrical Code NEC® and local regulations if applicable.

• Do not mount near gas or electric heaters.

• Equipment should be mounted in locations and at heights where it will not be readily subjected to tampering by

unauthorized personnel.

• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.

• Any modification or use of non-original components will void the warranty and product liability.

• Do not use this equipment for other than intended use.

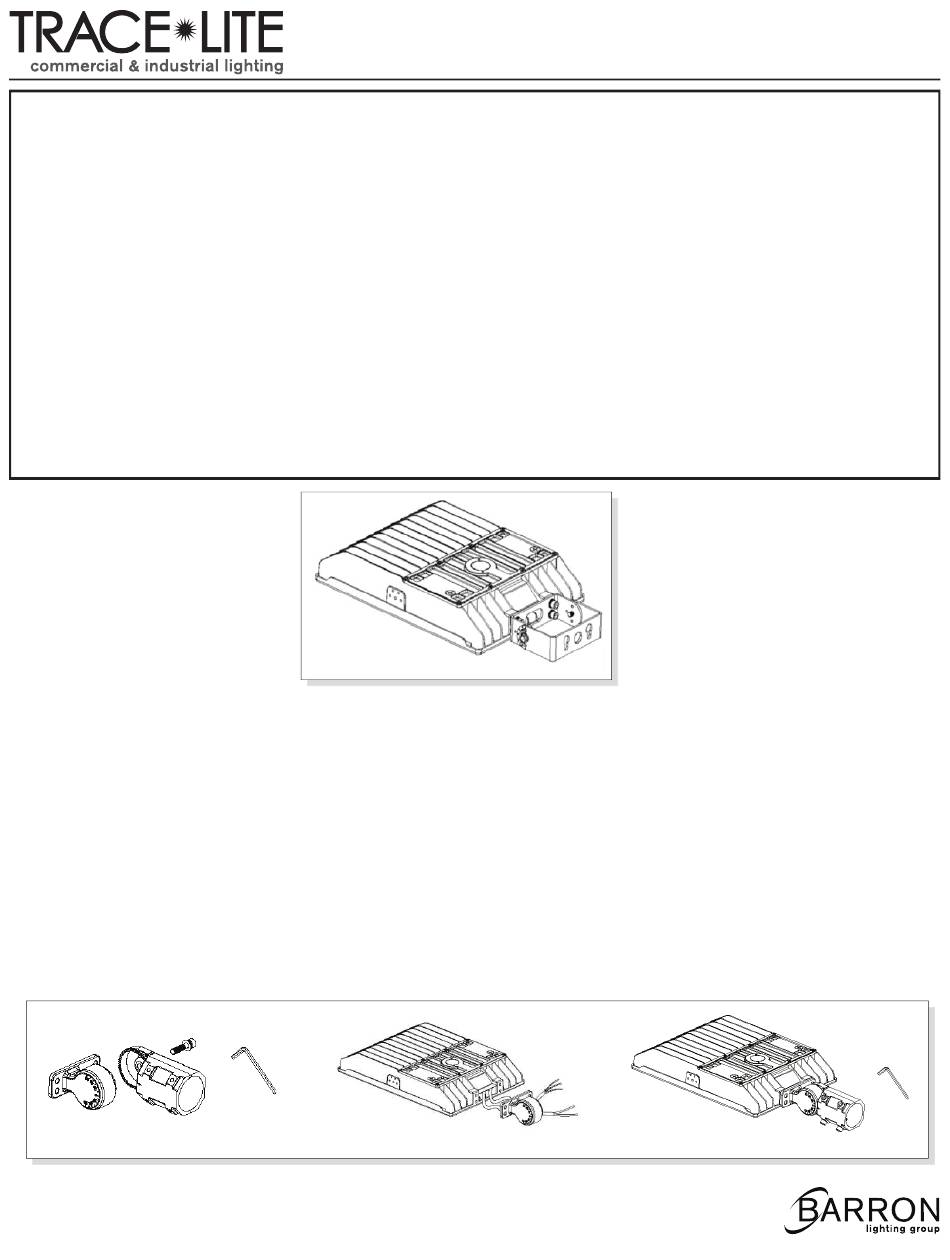

Mounting Preparation

Slip Fitter (fits up to 2 3/8" OD)

1. Separate the slip-fitter from the knuckle by removing the adjustment bolt with a hex wrench (provided by

others) (Fig. 1).

2. Feed wire leads from the AXL2 through the knuckle and attached the knuckle to the head (Fig. 2).

3. Feed wire leads through the slip-fitter and then attach the slip-fitter to the knuckle (Fig. 3).

4. Electrical connections should be made at this time (see Wiring section).

5. Install the slip-fitter on the pole and secure with screws.

Fig. 1

20070138 REV 1 P-5 - 2/19

SAVE THESE INSTRUCTIONS!

Fig. 2

AXL2 (80-280W)

INSTALLATION INSTRUCTIONS

Fig. 3

800.533.3948 • www.barronltg.com

Do you have a question about the TRACE-LITE AXL2 and is the answer not in the manual?

Page 1: Installation Instructions
AXL2 (80-280W) INSTALLATION INSTRUCTIONS IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS. When using electrical equipment, basic safety precautions should always be followed including the following: • DISCONNECT AC POWER SUPPLY BEFORE SERVICING. • Installation and servicing of this equipment should be performed by qualified service personnel only. •...
Page 2 AXL2 (80-280W) INSTALLATION INSTRUCTIONS Trunnion 1. Feed wire leads through slot in trunnion (Fig. 4). 2. Attach trunnion to the head (Fig. 5). Fig. 4 Fig. 5 Yoke 1. Attach yoke to the head using a hex wrench (provided by others) (Fig 6). Fig.
Page 3 AXL2 (80-280W) INSTALLATION INSTRUCTIONS Surface/Pole Mounting Slip-Fitter 1. Connect wires from AXL2 to supply (see Wiring section) and Adjustment Bolt position wires inside pole (Fig. 7) 2. Secure slip-fitter over pole and tighten. 3. To position, loosen the adjustment bolt using a hex wrench (provided by others), position head as desired, then retighten Slip Fitter the bolt.
Page 4 AXL2 (80-280W) INSTALLATION INSTRUCTIONS Yoke 1. Drill hole in mounting surface or rectangular pole. 2. Attach AXL2 to mounting surface or rectangular pole (Fig 12). 3. Make supply connection in waterproof J-box or inside pole (see Wiring section). Mounting surface or rectangular pole Fig.
