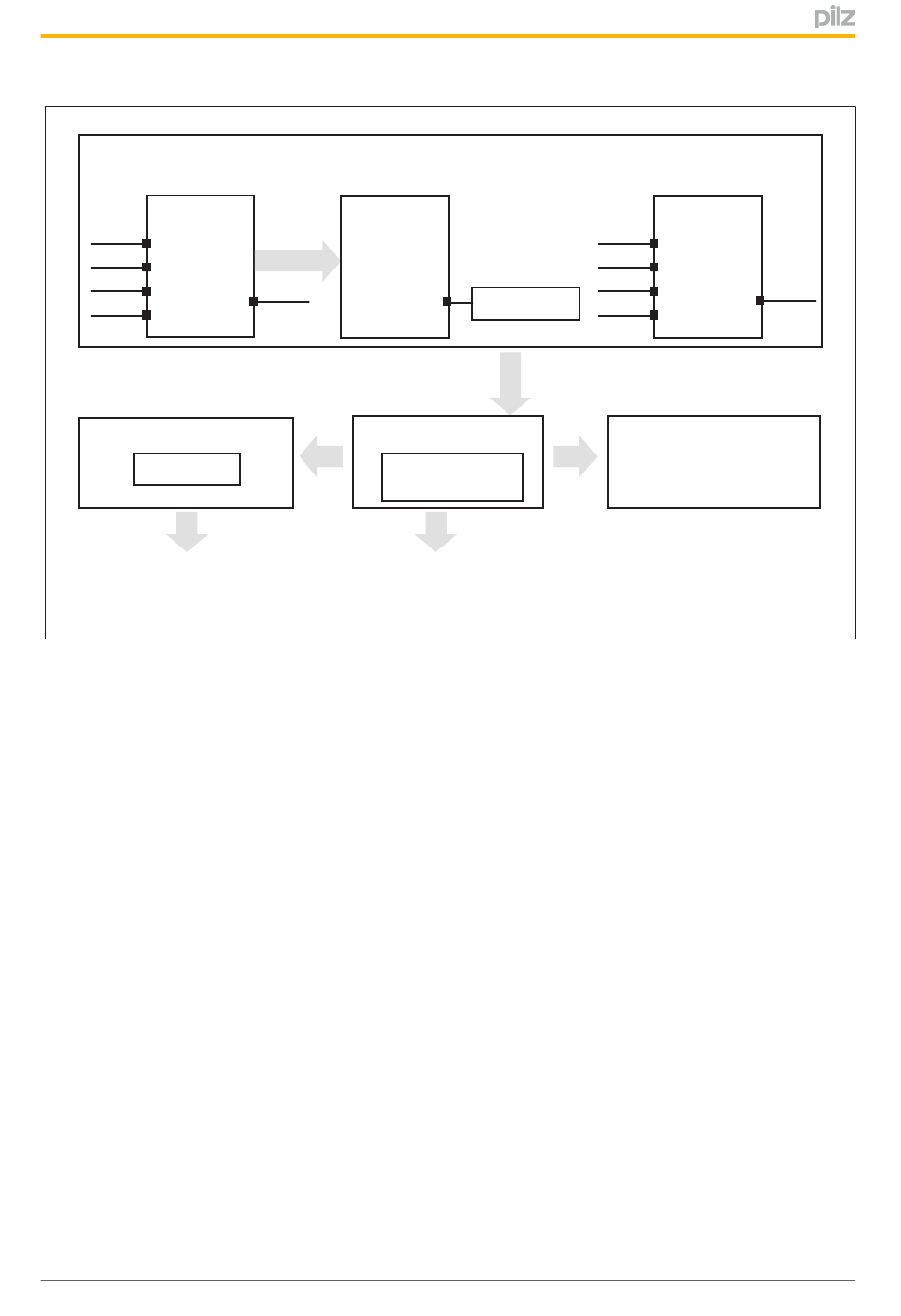

Diagnostic word
PNOZmulti Configurator
Element with status
Element with
ID = 1 ... 100
PNOZmulti 2 fieldbus module
Fieldbus
Read diagnostic word
Operating Manual Communication interfaces
1002971­EN­03
Element diagnostic word
Link bit
Diagnostic word
within the
for
user program
element with
e.g. to an
ID = 1 ... 100
output
PNOZmulti 2 base unit
1 fieldbus module or
1 communication
module
Read diagnostic word or display
the event messages and actions
using the PMImicro diag, for example
Output
Download
project
PNOZmulti 2 communi-
cation module
PVIS
Element with
ID = 1 ... 100
PVIS:
e.g. activate
Bit 2 and 3
