Complete Unit Installation (New and Ret-
rofit)
1. Install end panel, controller, or sheet metal
controller cover. Install and tighten retain-
ing fasteners.
2. Verify generator is OFF.
3. Install generator controller fuse.
4. Install T1 fuse into transfer switch using an
appropriate fuse puller.
5. Turn main breaker in the home electrical
panel to ON. On generator control panel,
follow installation wizard and validate cor-
rect date, time, etc.
6. Place generator in AUTO.

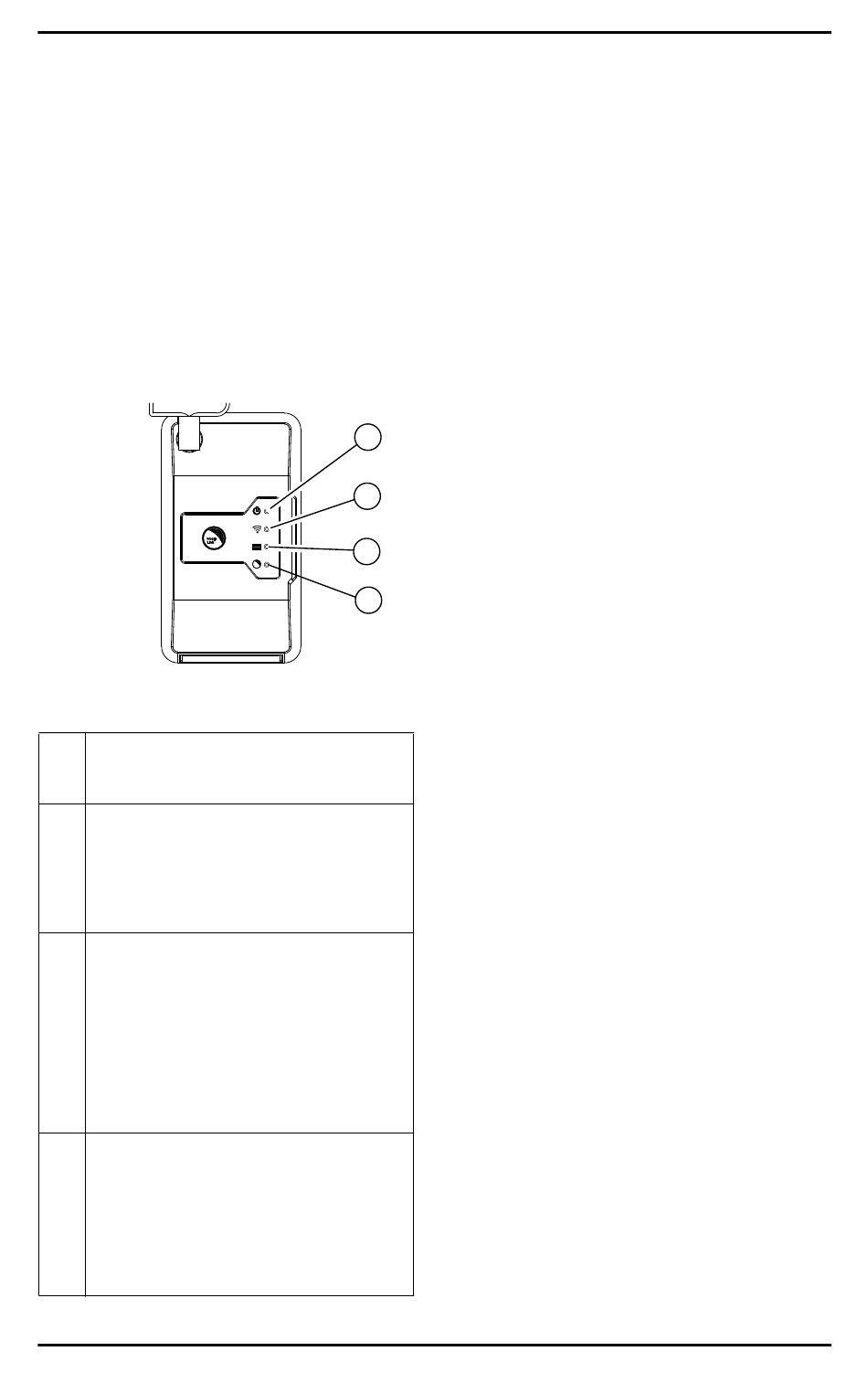

Figure 3-11. Mobile Link Cellular LEDs
A Power LED
Illuminates if Mobile Link cellular unit is
receiving power from generator battery.
B Cellular Network LED
Indicates cellular signal strength.
• Steady ON indicates strong signal.
• Flashing indicates variable or weak
signal.
OFF indicates no signal.
•
C Connection to Controller LED
Indicates status of connection to
generator controller.
• Steady ON indicates generator
controller has been identified.
• Flashing indicates generator
controller is communicating with
Mobile Link cellular unit but has not
yet been identified.
• OFF indicates no connection.
D Server Connection LED
Indicates status of connection to Mobile
Link servers.
• Steady ON indicates verified server
connection.
• Flashing indicates server connection
established but not verified.
• OFF indicates no connection.
