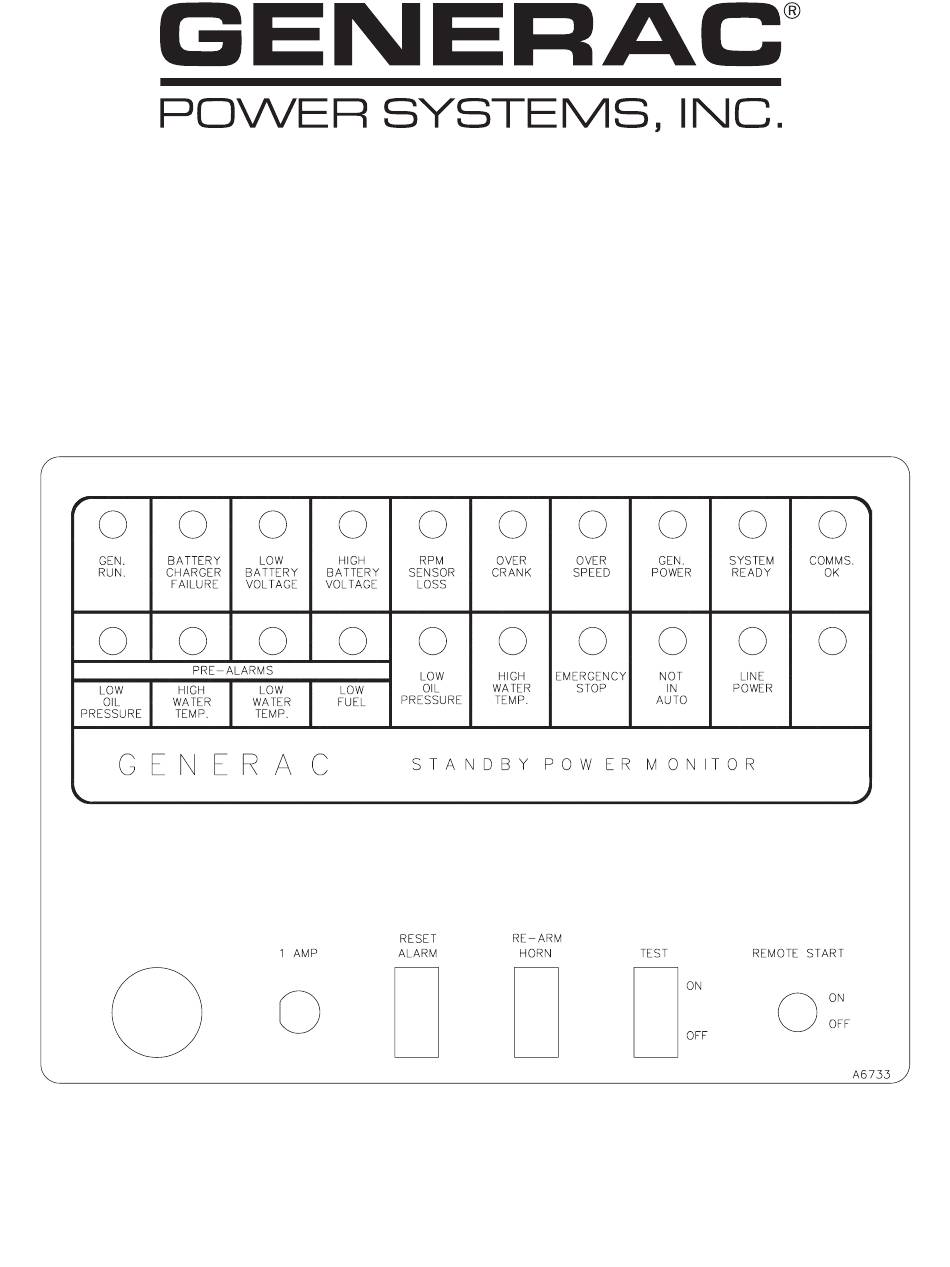

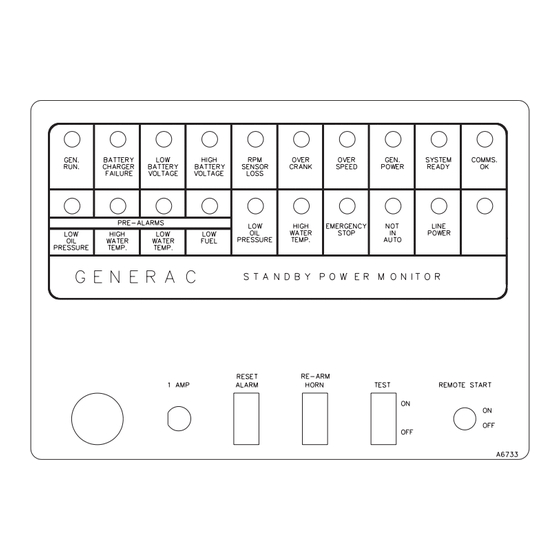

- Page 1 20 Light Remote Annunciator O w n e r ’s M a n u a l Surface Mount Flush Mount 000984-0 000985-0 Standard Annunciator 000984-1 000985-1 004280-0 004281-0 Annunciator w/Remote Relay Panel 004280-1 004281-1 004391-0 004392-0 Time Multiplexed Annunciator...
-
Page 2: Detailed Specifications
Generator Stop Signals..........4 Time Multiplexed 20 LT Annunciator......6 Warning Indicators ............4 Electrical Schematic Generator Power ............4 (000984-0, 000985-0, 004280-0, 004281-0) Line Power ..............4 (000984-1, 000985-1, 004280-1, 004281-1) ....7 Battery Charger AC Failure..........4 Electrical Schematic (004391-0, 004392-0) ....8 System Status Indicators ..........5 Remote Annunciator Parts........9-14... -
Page 3: System Specification
2. Up to four remote relay panels can be used with the two 20 light remote annunciators. 3. If only one 20 light remote annunciator is con- The Remote Annunciator panels (Models 000984-0, nected to a generator control panel, it must be left 004280-0, 004391-0, 000984-1, 004280-1) are mount- in active mode. -
Page 4: Warning Indicators
20 Light Remote Annunciator GENERATOR POWER GENERATOR STOP SIGNALS Is defined as whether transfer switch is in Generator These lights will flash when any alarm occurs and the supply position—measured from transfer switch horn will sound as follows: through the generator control panel. Annunciator Light Light Audible... -
Page 5: Software Specification
20 Light Remote Annunciator SYSTEM STATUS INDICATORS TEST SWITCH These lamps are for Status indication only—the normal While the test switch is pressed, all lights will light and condition is ON. the horn will sound. When released the lights will return to their original status. -
Page 6: Hardware Watchdog
20 Light Remote Annunciator System Setup HARDWARE WATCHDOG The modem must be initialized with an appropriate Will reset the CPU if : “set-up string” prior to being used in this system. If a a. Supply voltage at CPU drops below 4.65V. US Robotics 56K V90 modem is used, this “set-up b. - Page 7 20 Light Remote Annunciator Electrical Schematic – Drawing No. 0A7169-A For Models: 000984-0, 000985-0, 004280-0, 004281-0 000984-1, 000985-1, 004280-1, 004281-1 Generac ® Power Systems, Inc.
- Page 8 20 Light Remote Annunciator Electrical Schematic – Drawing No. 0C5770-A For Models: 004391-0 & 004392-0 Generac ® Power Systems, Inc.
- Page 9 20 Light Remote Annunciator Surface Mount Assembly Models 000984-0 & 000984-1 — Drawing No. 0A6991-D ITEM PART NO. QTY. DESCRIPTION 0A6985 Panel, Annunciator Rear 0A6388 Assy., 20 LT Annunciator 040213 PCB Support Snap-in 1/4” 0A6690 Gussett, Frt, Mnt 1000 kW 036901 Screen PPHM #6-32 X 3/8”...
- Page 10 20 Light Remote Annunciator Flush Mount Assembly Models 000985-0 & 000985-1 — Drawing No. 0A7440-D ITEM PART NO. QTY. DESCRIPTION 0A7437 Panel, Annunciator Rear 0A6388 Assy, 20 LT Annunciator 040213 PCB Sup Snap-in 1/4” 0A6690 Gussett, Frt, Mnt 1000 kW 036901 Screen PPHM #6-32 X 3/8”...
- Page 11 20 Light Remote Annunciator Surface Mount Assembly Models 004280-0, 004280-1 — Drawing No. 0C4937-A 20 Light Remote Annunciator with Remote Relay Panel Note: Model 004280-0 DOES NOT work in a “D” panel application. Model 004280-1 DOES work in a “D” panel application. ITEM PART NO.
- Page 12 20 Light Remote Annunciator Flush Mount Assembly Models 004281-0, 004281-1 — Drawing No. 0C4938-A 20 Light Remote Annunciator with Remote Relay Panel Note: Model 004281-0 DOES NOT work in a “D” panel application. Model 004281-1 DOES work in a “D” panel application. ITEM PART NO.
- Page 13 20 Light Remote Annunciator Surface Mount Assembly Model 004391-0 — Drawing No. 0D1627-A Note: This is the Time Multiplexed version to be used with the “E” Panel only. ITEM PART NO. QTY. DESCRIPTION 0A6985 Panel, Annunciator Rear 0A6388A RS485 Dual Communicator 040213 PCB Sup Snap-in 1/4”...
- Page 14 20 Light Remote Annunciator Flush Mount Assembly Model 004392-0 — Drawing No. 0D1628-A Note: This is the Time Multiplexed version to be used with the “E” Panel only. ITEM PART NO. QTY. DESCRIPTION 0A7437 Panel, Annunciator Rear 0A6388 Assy, 20 LT Annunciator 040213 PCB Sup Snap-in 1/4”...
- Page 15 20 Light Remote Annunciator Generac ® Power Systems, Inc.
- Page 16 Generac® Power Systems, Inc. P.O. Box 8 Waukesha, WI 53187 Part No. A7450 Revision 2 (9-24-01) Printed in U.S.A.
