Prepare Generator (Equipped With Existing Mobile Link Unit); Connect New Mobile Link Unit - Generac Power Systems Mobile Link Installation And User Manual

Prepare Generator (Equipped with
Existing Mobile Link Unit)
DANGER
Electrocution. Do not wear jewelry while
working on this equipment. Doing so will
result in death or serious injury.
1. Unlock both locks, open generator lid, and
remove front panel.
2. See Figure 3-6. If generator is equipped
with an internal breaker near the control-
ler, remove end panel from right side. Oth-
erwise, proceed to Step 3.
Figure 3-6. Removing End Panel
(Internal Breaker)
3. Turn generator OFF. Remove generator
panel fuse.
NOTE: There are different controller con-
figurations for various model years.
4. Set main utility disconnect breaker in
home's electrical panel to OFF (OPEN).
5. Using an appropriate fuse puller, remove
T1 fuse from transfer switch.
6. Disconnect negative (–) battery cable,
then positive (+) battery cable.
7. Disconnect wire harness from Mobile Link
cellular unit.
NOTE: Existing wire harness, PVC nipple,
and washers will be used to connect new
Mobile Link cellular unit, leave remaining
harness connections in place. Save gas-
kets and fittings.
8. Unscrew, remove, and discard old Mobile
Link cellular unit. Save plastic fitting.
9. If generator is equipped with an external
breaker box, remove controller sheet
metal cover and fasteners.
NOTE: Models equipped with an internal
breaker mounted near the controller will
already have the end panel removed at this
point. Carefully place the end panel face up on
a clean, smooth, flat surface to avoid damag-
ing the paint.
Installation and User's Manual for Mobile Link
Installation, Operation, and Troubleshooting
10. Proceed to
Unit.

Connect New Mobile Link Unit

1. See
through supplied plastic fitting (A).
(000188)
002727

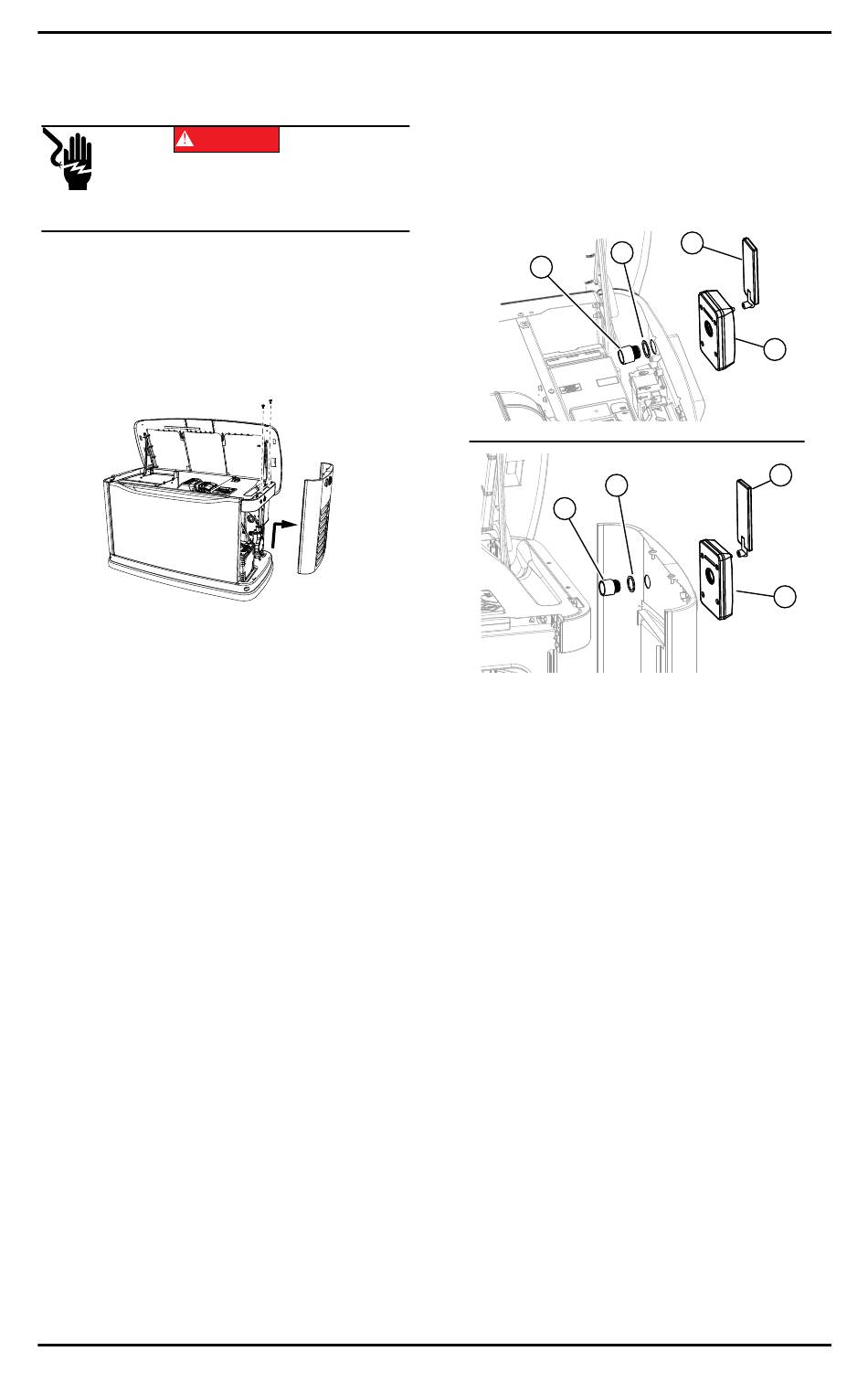

Figure 3-7. Mobile Link Cellular Installation
2. Place green gasket (B) on threaded end of
plastic fitting. Push threaded end through
controller end panel.
3. Thread antenna (C) into Mobile Link cellu-
lar unit (D). Rotate antenna clockwise until
secure. Position antenna pointing up.
NOTE: Do not overtighten antenna. Hand
tighten only.
4. Insert six pin harness connector from
Mobile Link cellular unit into mating con-
nector of wiring harness. Connector will
only fit one way. DO NOT force into place.
Connect New Mobile Link
Figure 3-7. Push six pin connector
C
B
A
B
A
D
C
D
