Main Circuit Breaker Locations

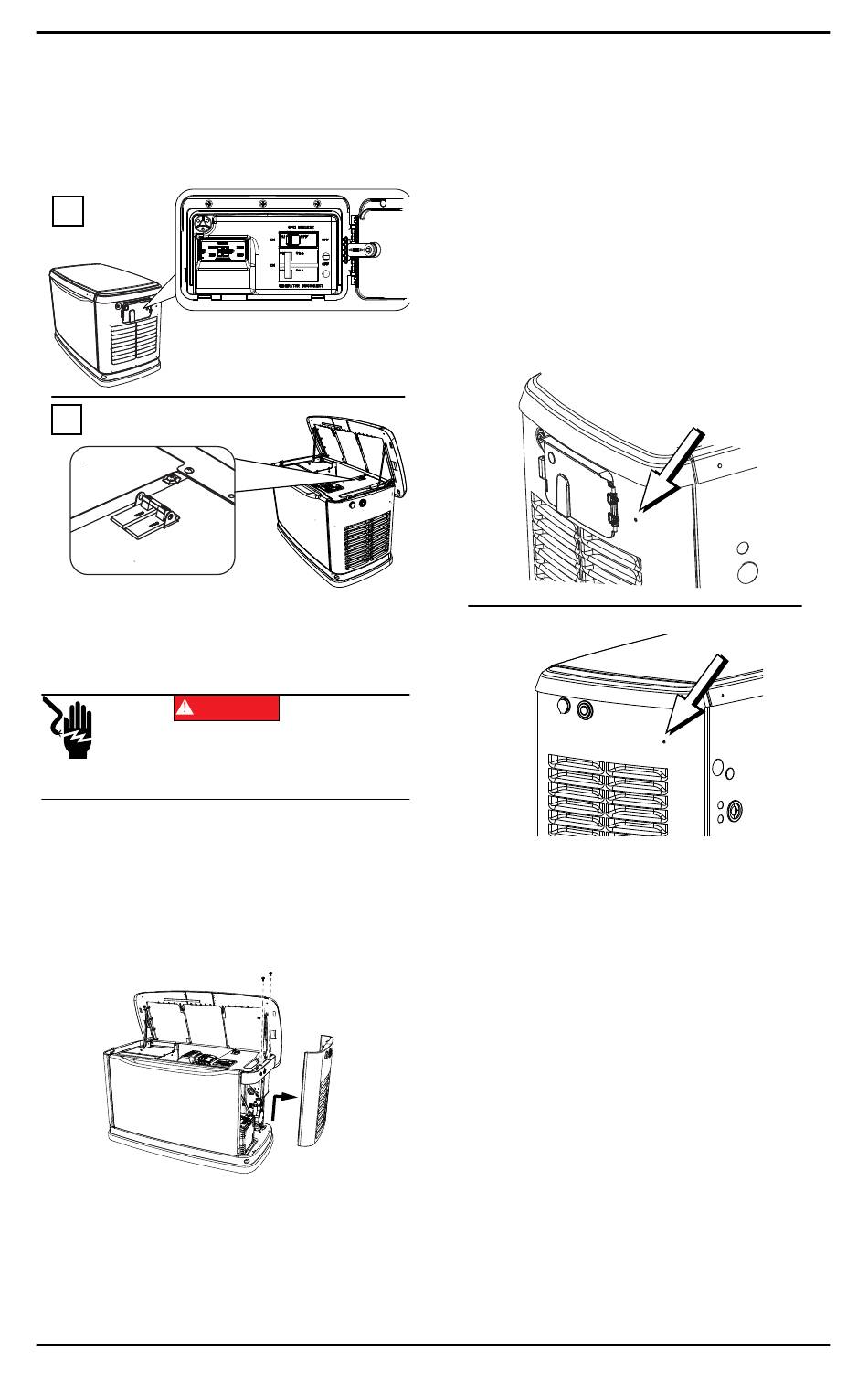

See Figure 3-3. Depending on the generator
model, the main circuit breaker is located
either in an external breaker box (A), or inter-
nally near the controller (B).
A
B
Figure 3-3. Main Circuit Breaker Locations

Prepare Generator (New Installations)

DANGER
Electrocution. Do not wear jewelry while
working on this equipment. Doing so will
result in death or serious injury.
1. Unlock both locks, open generator lid, and
remove front panel.
2. See Figure 3-4. If generator is equipped
with an internal breaker near the control-
ler, remove end panel from right side. Oth-
erwise, proceed to Step 3.
Figure 3-4. Removing End Panel
(Internal Breaker)
3. Turn generator OFF. Remove generator
panel fuse.
NOTE: There are different controller configu-
rations for various model years.
10
4. Turn main utility disconnect breaker in
home's electrical panel to OFF or OPEN.
5. Using an appropriate fuse puller, remove
T1 fuse from transfer switch.
6. Disconnect negative (–) battery cable,
then positive (+) battery cable.
7. If generator is equipped with an external
breaker box, remove controller sheet
metal cover and fasteners.
8. See
have a pre-positioned dimple on the end
panel. The dimple marks the center of the
mounting hole to be drilled.
002951
(000188)
Figure 3-5. Pre-Positioned Dimple
9. Inspect area behind external breaker box
to verify all wires are moved out of the way
to prevent damage during drilling.
NOTE: Models equipped with an internal
breaker mounted near the controller will
already have the end panel removed at this
point. Carefully place the end panel face up on
a clean, smooth, flat surface to avoid damag-
ing the paint.
10. Drill a 1-1/8 in (29 mm) diameter hole with
the dimple as the center point.
11. Proceed to
Unit.
002727
Installation and User's Manual for Mobile Link
Figure 3-5. 2013 and later models
Connect New Mobile Link
002729
