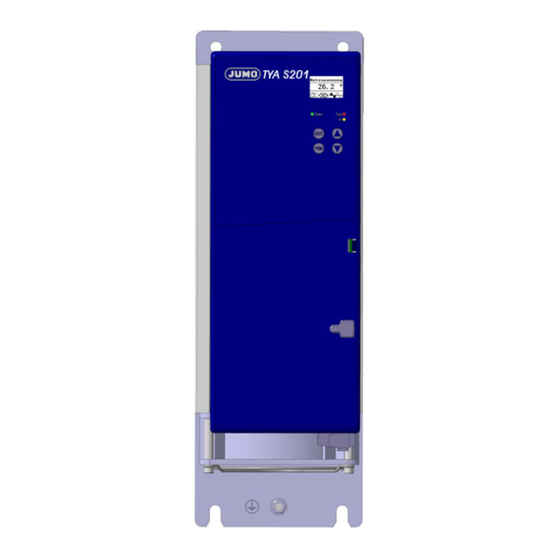

JUMO TYA S201
Single-Phase Thyristor Power Controller
709065/8-01-032
709065/8-01-050
709065/8-01-100
709065/8-01-150
709065/8-01-200
709065/8-01-250
709065/8-01-020
Operating Manual
70906500T90Z001K000
V1.00/EN/00709718

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYA S201 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JUMO TYA S201

Summary of Contents for JUMO TYA S201

  • Page 1 JUMO TYA S201 Single-Phase Thyristor Power Controller 709065/8-01-032 709065/8-01-050 709065/8-01-100 709065/8-01-150 709065/8-01-200 709065/8-01-250 709065/8-01-020 Operating Manual 70906500T90Z001K000 V1.00/EN/00709718...
  • Page 2 All parameter settings are described in detail in the chapter "Configuration". This operating overview shows all possible parameters of the device series. Depending on the order specifications or current configuration, any parameters that are not required are hidden.

  • Page 3: Table Of Contents

    2.2.4 Type 709065/X-0X-100-0X-XXX-XX ..............24 2.2.5 Type 709065/X-0X-150-0X-XXX-XX Type 709065/X-0X-200-0X-XXX-XX ..............25 2.2.6 Type 709065/X-0X-250-0X-XXX-XX ..............26 2.2.7 Clearances (all types) ..................26 Electrical connection ..............27 Pluggable screw terminals with 20 A ............. 27 V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 4 Setpoint value configuration ................47 4.2.4 Monitoring ......................47 Configuration ................49 Configuration level ................... 49 5.1.1 Device data ......................50 5.1.2 Power controller ....................50 5.1.3 Analog inputs ..................... 53 5.1.4 Setpoint value configuration ................54 V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 5 Program start ................... 74 Forgotten the code? ................75 Changing the language of the device texts ........... 76 Error messages and alarms............77 Binary signal for collective fault ............. 79 Replacing a defective semiconductor fuse ........... 80 V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 6 Galvanic isolation ..................87 10.3 Analog inputs ................... 88 10.3.1 Display and measuring accuracy ..............88 10.4 Digital output (fault signal output) ............88 10.5 General specifications ................89 10.6 Approvals/approval marks ..............91 V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 7: Introduction

    They should safely switch off the subsequent heating process in the event of excess temperatures. The power controller may only be operated using original JUMO semiconduc- tor fuses. In the event of replacement, please check that the correct spare part has been used.

  • Page 8: Typographical Conventions

    This symbol is used if burns can result from touching a hot surface. fire hazard Do not install any heat-sensitive components or devices close to the power controller. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 9: Note Symbols

    Small arrows between words are designed to make it easier to find parameters in the Operating mode configuration level. 1.2.4 Display types Keys Keys are displayed as symbols or text. Key combinations are represented by a plus sign. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 10: Order Details

    Setup program TYA 200 / TYA S200 00544869 USB cable A-connector B-connector 3 m 00506252 Installation kits: Installation kit for DIN rail 20 A TYA S201 00555169 Installation kit for DIN rail 32 A TYA S201 00555526 V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 11: General Accessories

    1 Introduction Item Part no. Installation kit for DIN rail 50 A TYA S201 00600095 1.3.3 General accessories Semiconductor A semiconductor fuse is fitted in the power controller to protect the thyristor fuses module. The "Fuse LED" lights up red in the event of a fault.

  • Page 12: Brief Description

    1.4 Brief description Device The JUMO TYA S201 is the slim version of the JUMO TYA 201 power control- ler. The microprocessor-controlled power controller shows all parameters on a display with background lighting and is operated using 4 keys at the front.

  • Page 13: Standards, Approvals, And Conformity

    ≤ 100 kA (the admissible mains voltage must correspond to the nominal voltage of the thyristor controller). For plant protection, a fuse up to class RK5 may be used. CE conformi- Low Voltage Directives 2006/95/EC Marking Directives 93/68/EEC EMC Directives 2004/108/EC Conformity Standard RoHS 2002/95/EC V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 14 1 Introduction V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 15: Mounting

    4 mm (if the protection conductor is not protected mechanically). v See VDE 0100 Part 540 h That the data on the nameplate (mains voltage, load current) corresponds Test to the data for the plant. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 16: Environmental Influences

    - Avoid direct sunlight. Power loss Occurs as waste heat on the power controller's heat sink and must be dissi- pated at the mounting site (e.g. in the control cabinet) in accordance with the climatic conditions. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 17: Filtering And Interference Suppression

    These filters are normally supplied as complete modules that are ready to be connected. 2.1.3 Admissible load current depending on the ambient temperature and the site altitude Ambient tem- perature Load current in A Reduction at a temperature of 45 °C: 2 %/kelvin 70 % T/°C V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 18 Ampacity in % 91,4% Reduction over 1000m above sea level: 0,86 %/100m site altitude in m 1000 2000 3000 4000 5000 above sea level V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 19: Wall Mounting With Screws (Per Default)

    2 screws. The left-hand hole is more easily ac- cessible in the upper section. Power controllers with a load current between 100 and 250 A are affixed with 4 screws. TYA S201 TYA S201 TYA S201 V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 20 2 Mounting TYA S201 100A TYA S201 150/200A V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 21 2 Mounting TYA S201 250A V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 22: Fastening On Din Rail (Accessories)

    Chapter 1.3.2 "Zubehör" h Hook the spring saddle into the DIN rail from above. h Swivel the power controller downward until the detent lug engages with the DIN rail with an audible click. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 23: Dimensions

    2 Mounting 2.2 Dimensions 2.2.1 Type 709065/X-0X-020-0X-XXX-XX 2.2.2 Type 709065/X-0X-032-0X-XXX-XX V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 24: Type 709065/X-0X-050-0X-Xxx-Xx

    2 Mounting 2.2.3 Type 709065/X-0X-050-0X-XXX-XX 2.2.4 Type 709065/X-0X-100-0X-XXX-XX V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 25: Type 709065/X-0X-150-0X-Xxx-Xx

    2 Mounting 2.2.5 Type 709065/X-0X-150-0X-XXX-XX Type 709065/X-0X-200-0X-XXX-XX V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 26: Type 709065/X-0X-250-0X-Xxx-Xx

    Allow a clearance of 10 cm from the floor. h Allow a clearance of 15 cm from the ceiling. h When fitted next to each other, no spacing between the devices is required. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 27: Electrical Connection

    - Flat-blade screwdriver, blade width 2, 3, and 5 mm 3.1.1 Type 709065/X-0X-20-0X-XXX-XX The device with a load current of 20 A is connected via pluggable screw termi- nals. (U1) (L1) (N/L2) (U2) (X8) (X2_1) (PE) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 28: Cable Lugs And Pluggable Screw Terminals As Of 32 A

    Wrench size 7 mm 3.2 Cable lugs and pluggable screw terminals as of 32 A Tools - Flat-blade screwdriver, blade width 2, 3, and 5 mm - Ring or open-end wrench, wrench size 7, 10, 13 mm V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 29: Type 709065/X-0X-032-0X-Xxx-Xx

    (0.5 to 2.5 mm with ferrule) For UL AWG 20-12 Ground terminal PE M6 setscrew with hexagon nut Cable lug 5 Nm Wrench size 10 mm hole: 6 mm (U1) (U2) (X8) (X2_1) (L1) (N/L2) (PE) V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 30 3 Electrical connection (U1) (U2) (X8) (X2_1) (L1) (N/L2) (PE) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 31: Type 709065/X-0X-100-0X-Xxx-Xx

    (0.5 to 2.5 mm with ferrule) (for UL applica- tion AWG 20-12) Ground terminal M6 setscrew with hexagon nut Cable lug 5 Nm Wrench size 10 mm hole: 6 mm (U1) (U2) (X8) (X2_1) (L1) (N/L2) (PE) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 32: Type 709065/X-0X-150-0X-Xxx-Xx

    M8 setscrew with hexagon Cable lug 12 Nm nut, wrench size 13 mm hole: 8 mm Interfaces The connection for Modbus, RS422/485 is located on the front. (X8) (X2_1) (L1) (U1) (N/L2) (U2) (PE) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 33: Type 709065/X-0X-250-0X-Xxx-Xx

    8 mm Fan X14 Slotted screws, blade width 3 mm 0.5 Nm 0.5 to 2.5 mm Interfaces The connection for Modbus, RS422/485 is located on the front. (X8) (X2_1) (X14) (L1) (U1) (N/L2) (U2) (PE) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 34: Connection Diagram

    OFF logic level 0 = DC 0 to < 5 V DC +10 V Output DC 10 V fixed voltage external Setpoint (max. +10 V, 2 mA) specification with potentiometer Ground potential 6 (GND) V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 35 Received data + RxD (+) 6 RX- Received data - Pluggable screw ter- minals on the under- side of the housing The shield of the Modbus cables must be routed to ground potential (PE)! (RS422/485 Modbus V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 36: Switch-On Sequence

    In the event of transformer loads or loads with a large temperature coefficient (TC >> 1), the controller output must be blocked using the inhibit function prior to opening S2. After closing S2, the controller output must be reactivated via the inhibit func- tion. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 37: Single-Phase Operation: Phase / N

    In the case of power controllers with a load current of 250 A, the fan terminal X14 must also be supplied with the specified voltage! The lead protection must be between 2 A and a maximum of 5 A. v Chapter 3.2.4 "Type 709065/X-0X-250-0X-XXX-XX" (X2_1) (X14) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 38: Single-Phase Operation: Phase / Phase

    In the case of power controllers with a load current of 250 A, the fan terminal X14 must also be supplied with the specified voltage! The lead protection must be between 2 A and a maximum of 5 A. v Chapter 3.2.4 "Type 709065/X-0X-250-0X-XXX-XX" (X2_1) (X14) (L1) (U1) (N/L2) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 39: Star Connection With Accessible Star Point (N)

    In the case of power controllers with a load current of 250 A, the fan terminal X14 must also be supplied with the specified voltage! The lead protection must be between 2 A and a maximum of 5 A. v Chapter 3.2.4 "Type 709065/X-0X-250-0X-XXX-XX" V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 40: Open Delta Connection (Six-Wire Connection)

    In the case of power controllers with a load current of 250 A, the fan terminal X14 must also be supplied with the specified voltage! The lead protection must be between 2 A and a maximum of 5 A. v Chapter 3.2.4 "Type 709065/X-0X-250-0X-XXX-XX" V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 41: Operation

    Chapter 4.1.2 "Appearance of measured values". Error messages The following chapter explains the error messages that may appear in the info line at the bottom of the screen: Chapter 8 "Fehlermeldungen und Alarme" V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 42: Display And Control Elements

    Info line or error The info line shows the selected input (with terminal designation), and the op- erating mode. It is also used to display temporary states (e.g. error messages). v Chapter 8 "Fehlermeldungen und Alarme" V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 43 Current Logic Soft start with phase- (switch) angle control Interface Invalid con- Burst-firing operation with α start trol config- ured Input signal in- General logic correctly configured Logic with α start Firing pulse inhibit V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 44: Meaning Of The Displayed Measured Values

    (Measured between terminals 1 and 2 on X2_1) Voltage Measured value for the power controller's voltage input (Measured between terminals 3 and 4 on X2_1) input Is only displayed if the current transformer is fitted (partial load failure monitoring option) V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 45: Appearance In The Configuration Level

    The symbols for input, subordinate control loop, and operating mode are dis- appearance played alternately in the info line together with error messages or information about special statuses. v Chapter 8 "Fehlermeldungen und Alarme" Examples V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 46: Operating Level

    0 to 50 to 100 % 50 % is set per default. 0000 to 1440 min 0000 minutes are set per default, which means the display is not switched off. / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 47: Power Controller

    The absolute minimum limit values for load voltage, load current, power, resistance, mains voltage, or device temperature can be moni- tored. v Chapter 5.1.5 "Überwachungen" Example: An alarm is triggered if the voltage falls below 20 V. Current measured value V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 48 OK state. A change in the load (load error) will be evaluated by the device on the basis of this state. / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 49: Configuration

    The parameters are combined in the following groups, which are explained in detail as sub-chapters in the tables on the following pages. Parameter groups v Chapter 5.1.1 "Device data" v Chapter 5.1.2 "Power controller" v Chapter 5.1.3 "Analog inputs" etc. v see Chapter 5.1.8 "RS422/485" V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 50: Device Data

    The power controller provides the power for the load continu- controller) ously according to the setpoint specification. Logic (switch) The power controller acts like a switch and provides the power by either switching ON or OFF. / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 51 This setting determines the starting behavior of the power controller after power ON and is deactivated per default. "Yes" means that a soft start with phase-angle control or pulse groups is performed after power ON. / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 52 This setting allows 2 devices to be configured so that they do Device2 not simultaneously draw power from the mains voltage at small output levels. This prevents current peaks. v Chapter 6.4 "Duales Energiemanagement" / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 53: Analog Inputs

    If, for example, the current measuring range start is set to 20 mA and the current measuring range end is set to 0 mA, the power controller is switched off at 20 mA and switched on at 0 mA. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 54: Setpoint Value Configuration

    This setting is only available if Power controller Thyristor control Continuous (power controller) is selected. Maximum Output level: 3680 W 3000W 0...20mA Base load: 680 W Base load Control signal 0 mA 20 mA / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 55: Monitoring

    The unit of the limit value corresponds to the measurand to be monitored. Limit value hystere- 0 to 1 to 9999.9 Switching differential at the upper and lower limit of the moni- toring range V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 56 DC component. If there are no further mains voltage drops, the firing pulse inhibit is removed and the power controller continues operation (e.g. with a soft start). / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 57: Digital Inputs

    Chapter 3.3 "Anschlussplan" Open, load ON Per default: Inhibit input open, power controller supplies power. Open, load OFF Inhibit input closed, power controller does not supply power. 3,3V 10kW / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 58: Digital Output

    Switching behavior: 13 and 15 pole and N/O contact closed Relay Ö Fault message present or signal via interface is logic level 1 "High": Switching behavior: 14 and 15 pole and N/C contact closed Relay Ö / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 59: Rs422/485

    9999 means: level is hidden Code, operator lev- 0000 to 9999 0000 means: no locking 9999 means: level is hidden Code, config. level 0000 to 9999 0000 means: no locking / bold = default setting V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 60: Configuration Example

    Load current: 3000 W/400 V = 7.5 A Temperature coefficient TC = 1 Base load: 0 % Setpoint specification via standard signal of 0 to 20 mA. The following power controller is selected for this requirement: Device type 709065/X-01-020-00-400-00 V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 61: Special Device Functions

    Star connection with Delta connection heating ele- operation with separate star common star points ments points without neu- without neutral con- tral conductor ductor 10 % 13 % 10 % 17 % 13 % 10 % V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 62 As a general rule, load monitoring does not yet take place during the soft start phase as the standard working range of the load has not yet been reached. Teach-In cannot yet be performed in this phase either. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 63: Teach-In

    When the power controller is disconnected from the mains voltage, the Teach- In values detected last are deleted and recalculated once mains voltage sup- ply has returned. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 64: Manual Mode

    Teach-in type load monit. Set to "manual" h Press the h Press the key twice If Teach-In is being performed for the first time, the message "Teach-In load monitoring" appears in the bottom line of the display. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 65: Performing Teach-In In Manual Mode

    Teach-In can be repeated any number of times in manual mode Teach-In h Press the key and the following message will appear: h Press the key to apply the current load state as the OK state. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 66: Setpoint Specification Via Potentiometer

    - Synchronize both devices by switching them on simultaneously - The cycle time must be set to 500 ms (fixed) - Within a group, one TYA S201 power controller must be configured as De- vice1 and the other TYA S201 power controller as Device2.
  • Page 67 100 %. All power controllers have to be switched on simultaneously via a joint main switch! Thy1 Device 1 Output level 20% Thy2 Device 2 Output level 60% mains Sum of all Mains currents V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 68: Α Start

    - Short-term supply drops > 10 % within a half-wave vChapter 6.6 "Monitoring of the mains voltage drop" External The thyristor output can also be switched off via the "Inhibit" digital input v Chapter 3.3 "Anschlussplan" or via the PROFINET, RS422/485 interfaces. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 69: Thyristor Control Logic (Switch)

    Chapter 5.1.2 "Steller" The phase control angle for each first half-wave can be selected between 0 and 90°. Time behavior The TYA S201 is not suitable for the specific control of individual sine waves. V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 70 6 Special device functions V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 71: Setup Program

    After switching on the device, press The device software version is shown in the Device info menu. h Click "Info" in the setup program menu bar On the device In the setup program V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 72: Installation

    7 Setup program 7.3 Installation h Installing the setup program Installation Appearance on the PC screen steps Enter license number V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 73 7 Setup program Installation Appearance on the PC screen steps Installation complete setup program V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 74: Program Start

    The connection has been estab- lished. The power controller supplies no power while setup data is being transferred "to the device". The device restarts after the transfer. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 75: Forgotten The Code

    The extracted codes are visible in the Device data menu. h Enter a new code Entering new codes h Perform a Data transfer To the device After transferring the setup data, the device restarts and the codes are acti- vated. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 76: Changing The Language Of The Device Texts

    To the device h Save the setup file and wait until the data transfer has been successfully completed The device now restarts and texts will appear on the display in the desired na- tional language. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 77: Error Messages And Alarms

    3. The voltage supply for the control elec- Check wiring tronics L1/N does not have the same phas- ing as the load circuit U1/U2. Malfunction Thyristor defective The device must be returned to JUMO thyristor breakage for repair. h Return the device Thyristor Thyristor defective...
  • Page 78 - Check wiring for wire breaks and Voltage input outside the valid range. reverse polarity. - Check upstream devices (con- trollers) Malfunction No connection to Modbus or Check wiring and master device (PLC). Bus error PROFINET network V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 79: Binary Signal For Collective Fault

    TYA 200 Series This selection contains all of the events that are used in the TYA 200 Series. Some events, such as "Slave 2 load fault" are not relevant for the TYA S201 devices because they are not used. All fault messages are OR-linked and output as a binary signal for a collective fault on the relay output or optocoupler.

  • Page 80: Replacing A Defective Semiconductor Fuse

    Press spring clip (A) to the right and lever up the plastic housing (at the point marked with an arrow) using a screwdriver (B). A plug connection separates the display, keys, and interface from the power section and you will be able to see the semiconductor fuse. V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 81: Accessories: Semiconductor Fuses

    Tripping current: 550 A Hexagon, wrench size 13 mm 12 Nm 00371964 250 A Tripping current: 550 A Hexagon, wrench size 13 mm 12 Nm 00371964 8.2.2 Semiconductor fuses type 709065/X-0X-20-0X-XXX-XX h Undo 2 recessed head screws V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 82: Semiconductor Fuses Type 709065/X-0X-32-0X-Xxx-Xx

    8 Error messages and alarms h Replace the defective semiconductor fuse with a new one. h Tighten the screws with the specified tightening torque 8.2.3 Semiconductor fuses type 709065/X-0X-32-0X-XXX-XX h Undo 2 hex-headed screws V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 83 Replace the defective semiconductor fuse with a new one. h Tighten the screws with the specified tightening torque h Push the plastic housing back into the guide rails until the spring clip en- Reassembling the housing gages. V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 84 8 Error messages and alarms V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 85: What To Do, If

    Exit manual mode by pressing EXIT v See - Base load settings selected "Grundlast" on page 67. h Check settings for base load settings v Chapter 8 "Fehler- - Thyristor short circuit meldungen Alarme" V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 86 9 What to do, if ... V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 87: Technical Data

    0(2) to 10 V, 0 to 5 V or SSR Analog input Voltage output 0(4) to 20 mA DC 10 V Binary output Relay AC 3800 V Display and keypad Load connection U1, U2 AC 3800 V Voltage supply V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 88: Analog Inputs

    10.4 Digital output (fault signal output) Relay (changeover contact) 30,000 switching operations at a switching capacity of AC 230 V / 3 A without contact protection (1.5 A), 50 Hz, B300 (UL 508) circuit V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 89: General Specifications

    - From 250 A of load current, forced convection - At installation heights over 1000 m, the ampacity of the power controller decreases v Chapter 2.1.3 "Zulässiger Laststrom in Abhängigkeit von der Umgebung- stemperatur und der Aufstellhöhe" V1.00/EN/00709718 [Thyristor power switch TYA S201]...
  • Page 90 2.7 kg Load current 100 A approx. 3.8 kg Load current 150 A approx. 8.5 kg Load current 200 A approx. 9.5 kg Load current 250 A approx. 10.2 kg Standard accessories 1 operating manual V1.00/EN/00709718 [Thyristor power switch TYA S201]...

  • Page 91: Approvals/Approval Marks

    Control Equipment (Category 709065/X-XX-100... NRNT7) 709065/X-XX-150... 709065/X-XX-200... 709065/X-XX-250... Load current 32 to 250 A Lead protection for the con- 2 A up to max. 5 A, conductor cross section maximum AWG 20-12 trol electronics V1.00/EN/00709718 [Thyristor power switch TYA S201]...
