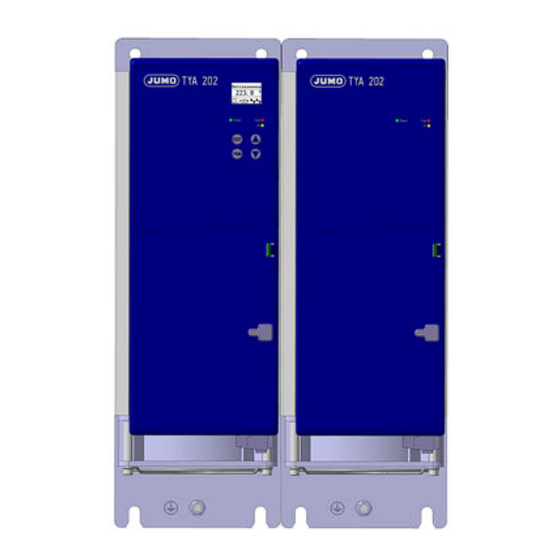

JUMO TYA 202
Thyristor power controller
in a three-phase economy circuit
709062/8-01-50
709062/8-01-100
709062/8-01-150
709062/8-01-200
709062/8-01-250
709062/8-01-32
709062/8-01-020
Operating Manual
70906200T90Z001K000
V3.01/EN/00561073

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 709062/8-01-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JUMO 709062/8-01-50

Summary of Contents for JUMO 709062/8-01-50

  • Page 1 JUMO TYA 202 Thyristor power controller in a three-phase economy circuit 709062/8-01-50 709062/8-01-100 709062/8-01-150 709062/8-01-200 709062/8-01-250 709062/8-01-32 709062/8-01-020 Operating Manual 70906200T90Z001K000 V3.01/EN/00561073...
  • Page 2 All parameter settings are described in detail in the chapter "Configuration". This operating overview shows all possible parameters of the device series. Depending on the order specifications or current configuration, any parameters that are not required are hidden.

  • Page 3: Table Of Contents

    Table of contents Introduction..................9 Editorial ....................... 9 Typographical conventions ..............10 1.2.1 Warning symbols ....................10 1.2.2 Note symbols ..................... 11 1.2.3 Performing an action ..................11 1.2.4 Display types ...................... 11 Order details ..................... 12 1.3.1 Scope of delivery ....................13 1.3.2 Accessories ......................
  • Page 4 Table of contents 3.1.1 Type 709062/X-0X-20-XXX-XXX-XX-25X ............31 Cable lugs and plug-in screw terminals as of 32 A ......32 3.2.1 Type 709063/X-0X-032-XXX-XXX-XX-25X Type 709063/X-0X-050-XXX-XXX-XX-25X ............33 3.2.2 Type 709062/X-0X-100-XXX-XXX-XX-25X ............35 3.2.3 Type 709062/X-0X-150-XXX-XXX-XX-25X Type 709062/X-0X-200-XXX-XXX-XX-25X ............36 3.2.4 Type 709062/X-0X-250-XXX-XXX-XX-25X ............
  • Page 5 Table of contents Subordinate control loop ....................55 Cycle time ........................56 Min. ON period ........................ 56 α start..........................56 α start angle........................56 Soft start .......................... 56 Soft start type ........................57 Soft start duration ......................57 Current limiting ........................ 57 Current limit value ......................
  • Page 6 Table of contents Control direction, digital input2 ..................66 5.1.7 Digital output ...................... 67 Output mode........................67 Control direction, digital output ..................68 5.1.8 analog output ..................... 69 Signal type, actual value output ..................69 Value to be output ......................69 Signal range start value ....................
  • Page 7 Table of contents Resistance limitation (r-control) ............. 87 Current limiting ..................88 α start ......................88 Monitoring of the mains voltage drop ............ 89 6.10 Firing pulse inhibit ..................89 6.11 Thyristor control logic (switch) ............... 90 Setup program ................91 Hardware ....................
  • Page 8 Table of contents 10.7 General specifications ................111 10.8 Approvals / approval marks ..............113 Certificates................115 11.1 UL ......................115 11.2 China ....................... 117 V3.01/EN/00561073 [thyristor power controller TYA 202]...

  • Page 9: Introduction

    They should safely switch off the subsequent heating process in the event of excess temperatures. The power controller may only be operated using original JUMO semiconduc- tor fuses. In the event of replacement, please check that the correct spare part has been used.

  • Page 10: Typographical Conventions

    1 Introduction When accessing the inner parts of the device and returning device plug-in units, modules, or components, please observe the regulations according to DIN EN 61340-5-1 and DIN EN 61340-5-2 "Protection of electronic devices from electrostatic phenomena". Use only ESD packaging for shipment. Please note that we cannot accept any liability for damage caused by ESD.

  • Page 11: Note Symbols

    1 Introduction 1.2.2 Note symbols Note This symbol is used to draw your attention to a particular issue. Reference This symbol refers to further information in other manuals, chap- ters, or sections. Footnote Footnotes are remarks that refer to specific parts of the text. Foot- notes consist of two parts: An identification marking in the text, and the footnote text itself.

  • Page 12: Order Details

    -20 ... +15 %, 48 ... 63 Hz AC 500 V -20 ... +15 %, 48 ... 63 Hz (7) Interface None RS485/422 PROFIBUS-DP EtherCAT/JUMO mTRON T (8) Extra code Relay (changeover contact) 3 A Optocoupler Order code 709062 / / 252 Order example...

  • Page 13: Scope Of Delivery

    1 Introduction 1.3.1 Scope of delivery 1 operating manual 1 thyristor power controller in the version ordered 1:1 patch cable 1.3.2 Accessories Item Part no. Setup program 709061 TYA 201 00544869 (can also be run for TYA 202 power controllers) USB cable A-connector B-connector 3 m 00506252 Installation kits:...

  • Page 14: Brief Description

    1 Introduction 1.4 Brief description Device The JUMO TYA 202 represents the consistent development of JUMO power controller technology. It switches ohmic-inductive loads using a three-phase current economy circuit in star-delta three-phase operation. The microproces- sor-controlled power controller displays all parameters in an LCD display with background lighting.

  • Page 15: Standards, Approvals, And Conformity

    1 Introduction 1.5 Standards, approvals, and conformity Device properties are inspected on the basis of the Low Voltage Directive DIN EN 50178. The EMC Directive is inspected on the basis of DIN EN 61326-1. Standard Electrical connection DIN VDE 0100 Protection type IP20 built-in devices DIN EN 60529 Climatic ambient conditions Class 3K3...
  • Page 16 1 Introduction V3.01/EN/00561073 [thyristor power controller TYA 202]...

  • Page 17: Mounting

    A semiconductor fuse is installed to protect the power controller in the event of a ground fault. In the event of a defect, these may only be replaced with original JUMO semiconductor fuses. v Chapter 8.2 "Replacing a defective semiconductor fuse"...

  • Page 18: Environmental Conditions

    2 Mounting v See VDE 0100 Part 540 h That the data on the nameplate (rated mains voltage, load current) corre- Check sponds to the data for the plant. h That the rotary electrical field has clockwise phasing if the economy circuit configuration is used.

  • Page 19: Filtering And Interference Suppression

    2 Mounting must be dissipated at the mounting site (e.g. in the control cabinet) in accor- dance with the climatic conditions. 2.1.2 Filtering and interference suppression To prevent radio-frequency interference, generated with a soft start in phase- angle operation for example, electrical apparatus and plants must have inter- ference suppression implemented.
  • Page 20 2 Mounting Destruction through overheating: In the event of operation at maximum load current over an extended period, the heat sink and its surroundings heat up. For this reason, at ambient temperatures above 45 °C, the maximum load cur- rent must be reduced as shown in the image, as the thyristor module could otherwise be destroyed.

  • Page 21: Wall Mounting With Screws (Default)

    2 Mounting 2.1.4 Wall mounting with screws (default) Power controllers with a load current between 20 and 50 A are affixed to a fire- proof control cabinet wall with 4 screws. The left-hand hole is more easily ac- cessible in the upper section. Power controllers with a load current between 100 ...
  • Page 22 2 Mounting TYA202 TYA202 150/200A 150/200A V3.01/EN/00561073 [thyristor power switch TYA 202]...
  • Page 23 2 Mounting TYA202 TYA202 250A 250A V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 24: Mounting On Din Rail (Accessories)

    2 Mounting surface During operation, the power controller heats up to a maximum of 110 °C, depending on the load. Ensure that the lamellae of the heat sink are vertically aligned to allow the heat to be dissipated through natural convection. Fire hazard: Do not install any heat-sensitive components or devices close to the power controller.

  • Page 25: Dimensions

    2 Mounting 2.2 Dimensions 2.2.1 Type 709062/X-0X-020-XXX-XXX-XX-25X V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 26: Type 709062/X-0X-032-Xxx-Xxx-Xx-25X

    2 Mounting 2.2.2 Type 709062/X-0X-032-XXX-XXX-XX-25X V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 27: Type 709062/X-0X-050-Xxx-Xxx-Xx-25X

    2 Mounting 2.2.3 Type 709062/X-0X-050-XXX-XXX-XX-25X V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 28: Type 709062/X-0X-100-Xxx-Xxx-Xx-25X

    2 Mounting 2.2.4 Type 709062/X-0X-100-XXX-XXX-XX-25X V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 29: Type 709062/X-0X-150-Xxx-Xxx-Xx-25X Type 709062/X-0X-200-Xxx-Xxx-Xx-25X

    2 Mounting 2.2.5 Type 709062/X-0X-150-XXX-XXX-XX-25X Type 709062/X-0X-200-XXX-XXX-XX-25X V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 30: Type 709062/X-0X-250-Xxx-Xxx-Xx-25X

    2 Mounting 2.2.6 Type 709062/X-0X-250-XXX-XXX-XX-25X 2.2.7 Clearances (all types) h Allow a clearance of 10 cm from the floor. h Allow a clearance of 15 cm from the ceiling. h When fitted next to each other, no spacing between the devices is required. V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 31: Electrical Connection

    3 Electrical connection Dangerous volt- The electrical connection must only be carried out by qualified per- sonnel! Dangerous voltages will cause an electric shock in the event of contact with live parts! h Disconnect the plant from the mains voltage on all poles. All screw terminals supplied ex works must be inserted and screwed tight during operation! 3.1 Plug-in screw terminals with 20 A...

  • Page 32: Cable Lugs And Plug-In Screw Terminals As Of 32 A

    3 Electrical connection Terminal Version Conductor Maximum cross section tightening torque X2_1 and X2_2 Slotted screws, blade width 2 mm 0.25 Nm 0.2-1.5 mm Slotted screws, blade width 3 mm 0.5 Nm 0.5-2.5 mm U2, N/L2, V, L1, U1 Slotted screws, blade width 5 mm 0.6 Nm 0.5-6 mm For applications according to UL, only 60 °C or 60 °C/75 °C copper conductors may be used!

  • Page 33: Type 709063/X-0X-032-Xxx-Xxx-Xx-25X Type 709063/X-0X-050-Xxx-Xxx-Xx-25X

    3 Electrical connection 3.2.1 Type 709063/X-0X-032-XXX-XXX-XX-25X Type 709063/X-0X-050-XXX-XXX-XX-25X Devices with a load current of 32 A and 50 A are equipped with plug-in screw terminals in the control section and cable lugs in the power section. Terminal Version Conductor cross sec- Maximum tion tightening torque...
  • Page 34 3 Electrical connection (U1) (U2) (X8) (X2_1) (L1) (N/L2) (PE) V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 35: Type 709062/X-0X-100-Xxx-Xxx-Xx-25X

    3 Electrical connection 3.2.2 Type 709062/X-0X-100-XXX-XXX-XX-25X Devices with a load current of 100 A are equipped with plug-in screw terminals in the control section and cable lugs in the power section. Terminal Version Conductor cross Maximum section tightening torque X2_1 and X2_2 Slotted screws, blade width 2 mm 0.2 to 1.5 mm 0.25 Nm...

  • Page 36: Type 709062/X-0X-150-Xxx-Xxx-Xx-25X Type 709062/X-0X-200-Xxx-Xxx-Xx-25X

    3 Electrical connection 3.2.3 Type 709062/X-0X-150-XXX-XXX-XX-25X Type 709062/X-0X-200-XXX-XXX-XX-25X Devices with a load current of 150 A are equipped with plug-in screw terminals in the control section and cable lugs in the power section. Terminal Version Conductor cross Maximum section tightening torque X2_1 and X2_2 Slotted screws, blade width 2 mm 0.2 to 1.5 mm...

  • Page 37: Type 709062/X-0X-250-Xxx-Xxx-Xx-25X

    3 Electrical connection 3.2.4 Type 709062/X-0X-250-XXX-XXX-XX-25X Devices with a load current of 200 to 250 A are equipped with plug-in screw terminals in the control section and cable lugs in the power section. Terminal Version Conductor cross Maximum section tightening torque X2_1 and X2_2 Slotted screws, blade width 2 mm 0.2 to 1.5 mm...

  • Page 38: Connection Diagram

    3 Electrical connection Depending on the Mains voltage, the fan terminal X14 must be supplied with the voltage specified below. The lead protection must be between 2 A and a maximum of 5 A. The fan is temperature-controlled, switches on automatically when the device temperature reaches 85 °C, and remains in operation until the device tempera- ture falls below 70 °C.
  • Page 39 3 Electrical connection Setpoint specification for voltage input 3 (GND) (for continous control) (surge proof up to max. DC +32 V) Voltage Binary input SPS 0/24 V 3 (GND) (for SPS-Logic signals) input logical „1“ = DC +5...32 V OFF logical „0“ = DC 0...< 5 V Output DC 10 V fixed voltage DC +10 V external Setpoint...
  • Page 40 Shield The shield of the Modbus cables must be routed to ground potential (PE)! (RS422/485 Modbus PROFIBUS-DP Connection JUMO mTRON T system bus or EtherCAT conf. tested 2 RJ-45 sockets (on 1 TX+ Transmission the front) data + 2 TX-...

  • Page 41: Switch-On Sequence

    3 Electrical connection 3.4 Switch-on sequence Observe the The S2 switch is not required if no bus system is used. general switch- The control section and power section are switched on simultaneously via on sequence switch S1. This is particularly important for the operation of transformer loads and resistance loads with a high temperature coefficient (TC >>...
  • Page 42 3 Electrical connection In the case of power controllers with a load current of 250 A, the fan terminal X14 must also be supplied with the specified voltage! The lead protection must be between 2 A and a maximum of 5 A. v Chapter 3.2.4 "Type 709062/X-0X-250-XXX-XXX-XX-25X"...

  • Page 43: Operation

    4 Operation 4.1 Display after switching on the device Hourglass and Initially, as soon as the voltage supply is switched on, the Power LED is per- national lan- manently lit in green and an hourglass appears on the display. The master is guage selection then synchronized with the slave devices and rotary field detection is carried out.

  • Page 44: Display And Control Elements

    4 Operation 4.1.1 Display and control elements Legend Comment Diagram The Power LED (green) lights up permanently when the voltage supply is connected. Flashes at regular intervals if the display lighting is switched off. v Chapter 9 "Was tun, wenn ..." Display (96 x 64 pixels) with white background lighting.

  • Page 45: Meaning Of The Displayed Measured Values

    4 Operation The info line shows the selected input (with terminal designation), the active subordinate control loop, and the operating mode. It is also used to display temporary states (e.g. error messages). v Chapter 8 "Fehlermeldungen und Alarme" Mains In this window, the rotary field direction is shown alongside the supply fre- frequency quency.
  • Page 46 4 Operation Master4 load volt- Effective value of the supply voltage U12 - measured on the master be- tween the V and U2 terminals Load voltage Effective value of the supply voltage U31 - measured on the slave be- tween the V and U2 terminals Slave 1, 4 Master...

  • Page 47: Appearance In The Configuration Level

    4 Operation 4.1.4 Appearance in the configuration level Scroll bar The entry highlighted in black is selected and contains further parameters. If there are more than three entries in one level, a scroll bar that shows the cur- rent position in the menu appears. Navigation Numerical entry Once you have reached the required parameter, the...

  • Page 48: Operating Level

    4 Operation 4.2 Operating level All parameters for the maximum device extension level are listed in the fol- lowing tables. Depending on the order details (see nameplate or device infor- mation) or the current configuration, parameters that are not required are hid- den.

  • Page 49: Power Controller

    4 Operation 4.2.2 Power controller Value range Description 0 to 75 to 90° el 75° el is set per default. If "α start" is set to "No" in the configuration, this window is not displayed and α start is set to 0° el. 10 % to max.
  • Page 50 4 Operation 0... U In the case of continuous thyristor control via the analog in- of the load voltage, put, the base load at the measuring range start (e.g. 0 mA) 0 to P can be varied during operation. of the power Note: This setting is only available if Power controller Thyristor...

  • Page 51: Monitoring

    4 Operation 4.2.4 Monitoring The value to be monitored can be adjusted. v Chapter 5.1.5 "Überwachungen" The load voltage was used in this example. Value range Your setting: 0 ... 9999.9 The absolute minimum limit values for load voltage, load cur- rent, power, resistance, mains voltage, or device temperature can be monitored.
  • Page 52 4 Operation This function is not configured per default. This window only appears if the following setting has been selected in the configuration level: h Press the key to switch to the configuration lev- h Set Monitoring Teach-In type load monit. Manual h Press the The "Manual teach-in"...

  • Page 53: Configuration

    5 Configuration 5.1 Configuration level The configuration level contains parameters for configuring the power control- ler. If the parameters at this level are modified during operation, the power control- ler is locked (inhibit function) as a result. It does not provide any power in this state.

  • Page 54: Device Data

    5 Configuration 5.1.1 Device data Basic settings for display and temperature unit. Value / settings Description Language wizard A query appears when the device is started, asking which na- tional language is to be used to display the subsequent opera- active tion.

  • Page 55: Subordinate Control Loop

    5 Configuration Value / settings Description Subordinate control , U, I , I, P Note: loop The subordinate control loop only appears for: Power controller Continuous (power Thyristor control controller). Subordinate control loops are used to eliminate or compensate for external disturbances, such as mains voltage fluctuations and changes in load resistance, that would have a negative ef- fect on the control process.

  • Page 56: Cycle Time

    5 Configuration Value / settings Description Cycle time Fixed (500 ms) Note: This setting is only available in burst-firing operation. (For slow heating el- ements) For example, for a fixed period of 500 ms, 5 sine waves are switched on and 20 switched off at an output level of 20 %. 500ms Fastest possible The cycle time is variable with this setting.

  • Page 57: Soft Start Type

    5 Configuration Value / settings Description Soft start type With phase-angle This parameter only appears if soft start is set to "Yes". control Starting from 180°, the phase control angle α is steadily re- duced until a full wave has passed through. This ends the soft start and the device switches to burst-firing operation.

  • Page 58: Current Limit Value

    5 Configuration Value / settings Description Current limit value 10 % to max. load Varies depending on the device type. current +10 % of For 20 A power controllers, 2 to 22 A can be set. 22 A can be the device type selected.

  • Page 59: Analog Inputs

    5 Configuration 5.1.3 Analog inputs The power controller has a voltage input and a current input. These inputs (setpoint specification) specify the output to be provided by the power controller at the load output. In most cases, this signal is sent as a standard signal from an electronic con- troller or PLC and is adjusted with these settings.

  • Page 60: Setpoint Value Configuration

    5 Configuration 5.1.4 Setpoint value configuration This setting determines which analog input specifies the setpoint value, how high the base load is, and which replacement value should be applied in the event of a fault. Value / settings Description Setpoint specifica- Current input This setting specifies which analog input supplies the setpoint tion...

  • Page 61: Base Load

    5 Configuration Base load 0... U Note: of the load voltage, This setting is only available if Power controller Thyristor 0 to P control Continuous (power controller) is selected. of the power The unit depends on the setting for subordinate control loop and device type: v Chapter 1.3 "Order details"...

  • Page 62: Monitoring

    5 Configuration 5.1.5 Monitoring This allows an internal measurand to be monitored for compliance with limit values. Depending on the switching behavior, an overrange or underrange is output at the digital output (option: relay or optocoupler). Value / settings Description >...

  • Page 63: Max. Limit Value Alarm

    5 Configuration Max. limit value 0 ... 9999.9 The absolute maximum limit values for load voltage, load cur- alarm rent, power, resistance, mains voltage, or device temperature can be monitored. If the measurand exceeds this value, an error message ap- pears at the bottom of the display and the yellow K1 LED lights up.

  • Page 64: Mains Voltage Drop Monitoring

    5 Configuration >Mains voltage No monitoring drop monitoring If the effective values of the analyzed half-waves are more than 10 % apart, an alarm message is displayed and the bina- ry output for the collective alarm switches depending on the set control direction.

  • Page 65: Digital Inputs

    5 Configuration 5.1.6 Digital inputs There are 2 digital inputs and one additional digital input for firing pulse inhibit available, to which a potential-free contact can be connected. The following functions can be triggered with digital input 1 and 2: Use the to switch to the configuration level Digital inputs...

  • Page 66: Key Lock

    5 Configuration Value / settings Description Key lock Switched off No key lock Digital input1 Key lock is controlled by digital input1 Digital input2 Key lock is controlled by digital input2 Ext. digital input1 Key lock is controlled via an interface Ext.

  • Page 67: Digital Output

    5 Configuration 5.1.7 Digital output The digital output consists of a relay or an optocoupler, depending on the or- der code. With the digital output, it is possible to choose between the output mode "col- , and lective fault transmitter", "energy meter" "Interf.

  • Page 68: Control Direction, Digital Output

    5 Configuration Value / settings Description Control direction, Normally Open Con- No error message or energy meter pulse OFF or digital output tact signal via interface is logically 0 "Low": Switching behavior: 14 and 15 pole and N/C contact closed or 13 and 14 optocoupler collector-emitter loop high-impedance Relay Optocoupler...

  • Page 69: Analog Output

    5 Configuration 5.1.8 analog output The actual value output is an analog output at which different internal values can be output as a standard signal. Value / settings Description Signal type, actual This setting specifies the standard signal that should be out- value output put at the actual value output.

  • Page 70: Profibus-Dp

    Data format Motorola®, Intel® / bold = default setting 5.1.11 EtherCAT For communication with EtherCAT see documentation 70906108T92Z000K000. For communication with the JUMO mTRON T automation system, see documentation 70500153T90... Value / settings Description Fieldbus ECAT Conf. tested...

  • Page 71: Configuration Example

    5 Configuration 5.2 Configuration example Requirements Mains voltage on the power controller 400 V Load voltage 230 V 9 heating elements each with 1 kW Star connection with isolated star points Load current: 9000 W/(3 x 230 V) = 13 A Temperature coefficient TC = 1 Subordinate control loop: U Base load: 0 %;...
  • Page 72 5 Configuration V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 73: Special Device Functions

    6 Special device functions 6.1 Detection of load faults The load monitoring function detects the percentage change of the load resis- tance. The function can also detect and signal a load failure, partial load fail- ure, or a partial load short circuit. Undercurrent This function is used for one or more heating elements connected in parallel that are to be monitored for failure.
  • Page 74 6 Special device functions For heating elements with a temperature coefficient TC ≈ 1, the limit value can be taken directly from the following tables: Undercurrent Number of Star connection with sepa- Star connection with com- Delta connection heating elements rate star points without neu- mon star points without tral conductor...

  • Page 75: Teach-In

    6 Special device functions 6.1.1 Teach-In Depending on the configuration of the parameter "Load monit. Teach-In", Teach-In (i.e. determination of the load measured values in the OK state) is ei- ther performed once automatically after power ON or automatically and cycli- cally, repeatedly every minute, or manually.

  • Page 76: Manual Mode

    6 Special device functions Teach-In "Automatically cyclically" means that the Teach-In values are temporarily "Automatically saved again at intervals of 1 minute. This setting is particularly suitable for SIC cyclically" heating elements as in this case the resistance in the load point changes with time due to aging.

  • Page 77: Performing Teach-In In Manual Mode

    6 Special device functions If Teach-In is being performed for the first time, the message "Teach-In load monitoring" appears in the bottom line of the display. 6.2.3 Performing Teach-In in manual mode The power controller is in the "Measured value overview" level h Press the key twice to return to manual mode.

  • Page 78: Setpoint Specification Via Potentiometer

    6 Special device functions 6.3 Setpoint specification via potentiometer For this, a 5 kΩ potentiometer is connected to the voltage input. It is supplied with DC 10 V at terminal 5 of the power controller. h Configuration level Analog inputs Set voltage measuring range 0 to 10 V h Configuration level...
  • Page 79 6 Special device functions L2 L3 Attention: TYA 202 - Make sure that the rotating electric field is right handed! - Only possible in burst firing mode - SCR load voltage =U Setpoint lnput: 0(4)...20mA Device 1 Patchcable Relay Optocoupler Ö...
  • Page 80 6 Special device functions The two power controllers switch on at different times. Starting from the dashed lines, the dispersion of energy takes place symmetrically to the left and right (see arrows). For as long as the total output level of the two devices is below 100 %, two device currents in a single phase are prevented from overlapping.

  • Page 81: Subordinate Control Loop

    6 Special device functions 6.5 Subordinate control loop Subordinate control loops are used to eliminate or compensate for external disturbances, such as mains voltage fluctuations and changes in load resis- tance, that would have a negative effect on the control process. 6.5.1 Closed control loop without subordinate control Supply voltage...

  • Page 82: Closed Control Loop With Subordinate Control

    6 Special device functions Disadvantage: A continuing constant temperature is no longer assured. The power controller recognizes the deviation through the relatively slow re- sponse of the temperature control loop and increases its output level (y ) until the furnace reaches the original temperature (250 °C) again. 6.5.2 Closed control loop with subordinate control To avoid power variations caused by mains voltage fluctuations, a subordi- nate control loop is built into the power controllers.
  • Page 83 6 Special device functions tance is proportional to the input signal to the power controller. ∼ Eingangssignal des Leistungsstellers (0 ... 20 mA) Last Heating elements that have a positive temperature coefficient (TC) (i.e. where the electrical resistance increases with increasing temperature) are usual- ly driven by a power controller that incorporates a subordinate control loop (U control) (Figure 1).
  • Page 84 6 Special device functions es towards the setpoint value, the power fed to the furnace is reduced (at the same load voltage level). This means that the power controller alone is able to slow the approach to the setpoint value. This damps out any tendency to over- shoot the final temperature.
  • Page 85 6 Special device functions Figure 3: Heating element with a negative TC Looking at the power equation P = I · R, we can see that an I control has the same regulatory effect on the power as already described for the U control.
  • Page 86 6 Special device functions This doubles the current for the thyristor power controller. Old = old state of the heating element -------- - New = new condition of the heating element The relationship is illustrated by the following formula: • •...

  • Page 87: Resistance Limitation (R-Control)

    6 Special device functions 6.6 Resistance limitation (r-control) This is only possible in power controllers with current and voltage measurement that are fitted with subordinate control P (Code 001 in the order code) and only functions for load resistors with a posi- tive temperature coefficient.

  • Page 88: Current Limiting

    6 Special device functions 6.7 Current limiting Current limiting is only possible for power controllers with load current measurement; in other words, subordinate control I,I (code 010 in the order code), or P (code 001 in the order code) must be selected in the order details.

  • Page 89: Monitoring Of The Mains Voltage Drop

    6 Special device functions 6.9 Monitoring of the mains voltage drop If the effective values of the analyzed half-waves are more than 10 % apart, an alarm message is displayed and the binary output for the collective alarm switches depending on the set control direction. Immediate firing pulse inhibit prevents the connected transformer loads from destroying the semiconductor fuse due to a DC component.If there are no fur- ther mains voltage drops, the firing pulse inhibit is removed and the power...

  • Page 90: Thyristor Control Logic (Switch)

    6 Special device functions 6.11 Thyristor control logic (switch) Operating mode If the power controller is set to Thyristor control Logic (switch), the power controller operates as an electronic switch. For as long as the configured digital or analog input is closed, the thyristors are fired in zero crossing of the mains voltage and are only locked again when the digital or analog input is opened.

  • Page 91: Setup Program

    7 Setup program The setup program enables all data for the device to be configured conve- niently on a PC so that it can then be transferred to the device. For configuration of the power controller it is sufficient to insert the USB cable into the master power controller and connect it to the PC.

  • Page 92: Installation

    7 Setup program 7.3 Installation h Install the setup program Installation Appearance on the PC screen steps Enter license number V3.01/EN/00561073 [thyristor power switch TYA 202]...
  • Page 93 7 Setup program Installation Appearance on the PC screen steps Installation complete Launch setup program V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 94: Program Start

    7 Setup program 7.4 Program start h Start the setup program using the Windows® Start menu h Connect the socket of the power controller to a USB socket on the PC us- ing the supplied USB cable h Click Connect in the menu bar Diagnostics The diagnosis window appears at the bottom of the screen and shows the de- vice info and the current measurement data.

  • Page 95: Forgotten The Code

    7 Setup program 7.5 Forgotten the code? If you have forgotten your password, you can extract the device data or enter a new code word via the setup program. h Perform a Data transfer Extracting set- from the device up data The extracted codes are visible in the Device data menu.

  • Page 96: Changing The Language Of The Device Texts

    7 Setup program 7.6 Changing the language of the device texts The default national language is specified in the order details. Only one nation- al language can be transmitted to the device with the setup program. h Connect the device to the PC using the USB cable h Start the setup program h Perform a Data transfer from the device...

  • Page 97: Error Messages And Alarms

    U1/U2. 4. Thyristor in the master power controller de- The device must be returned to fective (only with three-phase economy cir- JUMO for repair. cuit where nominal voltage < 230 V) h Return the device Master: Malfunction 1.
  • Page 98 Thyristor defective The device must be returned to short circuit Note: JUMO for repair. Monitoring only works when the load resis- h Return the device tance is so low that at least 10 % of the pow- er controller nominal current is flowing.
  • Page 99 The device must be returned to JUMO for repair. h Return the device Slave: thyristor Thyristor defective The device must be returned to short circuit JUMO for repair.
  • Page 100 8 Error messages and alarms Error message Cause Remedy Slave: supply volt. Mains voltage is not within specified toler- Check nominal voltage of the de- too high ance range vice type v Chapter 10.1 "Voltage supply, Fan v Chapter 1.3 "Bestellanga- specifications for 250A, load current"...

  • Page 101: Binary Signal For Collective Fault

    8 Error messages and alarms 8.1 Binary signal for collective fault This signal is used for controlling the digital output and LED K1, and can also be read out from the power controller via the interfaces. You can use the setup program to configure which events (alarm and error messages) are to be grouped together as a binary signal for a collective fault.

  • Page 102: Replacing A Defective Semiconductor Fuse

    8 Error messages and alarms 8.2 Replacing a defective semiconductor fuse Opening the housing Caution! Risk of burns! The device's heat sink can heat up during operation. The current device temperature is shown on the display. v Operating overview (on the first cover page) h Disconnect the built-in device from the voltage supply on all poles v Chapter 3.3 "Anschlussplan"...

  • Page 103: Accessories: Semiconductor Fuses

    8 Error messages and alarms 8.2.1 Accessories: semiconductor fuses The design of the semiconductor fuse differs according to the device type. Power Tripping current Screws Tighten- Sales controller type torque 20 A Tripping current: Recessed head 3 Nm 70/00513108 40 A 32 A Tripping current:...

  • Page 104: Semi-Conductor Fuses Type 709062/X-0X-32

    8 Error messages and alarms h Replace the defective semiconductor fuse with a new one. h Tighten the screws with the specified tightening torque 8.2.3 Semi-conductor fuses type 709062/X-0X-32... h Undo 2 hex-headed screws V3.01/EN/00561073 [thyristor power switch TYA 202]...
  • Page 105 8 Error messages and alarms h Replace the defective semiconductor fuse with a new one. h Tighten the screws with the specified tightening torque h Push the plastic housing back into the guide rails until the spring clip en- Reassembling the housing gages.
  • Page 106 8 Error messages and alarms V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 107: What To Do, If

    9 What to do, if ... What is happening? Cause / remedy Info v Chapter 5.1.1 "De- Green Power LED is - Display switch-off active flashing vice data" h Press any key Power controller is not - Parameters have been changed in the producing any output configuration level but not completed.
  • Page 108 9 What to do, if ... What is happening? Cause / remedy Info v See "Current limit- Power controller is not - Current limiting active producing full power ing" on page 57. h Check settings even though the setpoint - Half-wave control set value is set to 100 % (half power) h Change to burst-firing operation...

  • Page 109: Technical Data

    10 Technical data 10.1 Voltage supply, Fan specifications for 250A, load current Code Voltage supply for control electronics = Mains Fan specifications voltage Type 709062/X-0X-250... AC 24V -20%...+15%, 48 ...63 Hz AC 24V/2×30VA AC 42V -20%...+15%, 48 ...63 Hz AC 24V/2×30VA AC 115V -20%...+15%, 48 ...63 Hz AC 115V/2×30VA AC 230V -20%...+15%, 48 ...63 Hz...

  • Page 110: Analog Inputs (Master Only)

    10 Technical data 10.3 Analog inputs (master only) = 50 Ω Current 0 (4) to 20 mA R voltage 0 (2) to 10 V R = 25 kΩ 0 (1) to 5 V R = 25 kΩ 10.4 Analog output (actual value output master only) analog output Switched off as standard.

  • Page 111: General Specifications

    10 Technical data 10.7 General specifications Thyristor control: Setpoint specification Setpoint specification Setpoint specification Via inter- current input voltage input digital input1, 2 face (can carry current up to (surge proof up to max. DC 32 V) (surge proof up to max. DC 32 V) 25 mA) Continuous The power controller provides the power for the load contin-...
  • Page 112 10 Technical data Cooling - Natural convection up to a load current of 200 A - From 250 A of load current, forced convection - At installation heights over 1000 m, the ampacity of the power controller decreases v Chapter 2.1.3 "Admissible load current depending on the ambient temperature and the site altitude"...

  • Page 113: Approvals / Approval Marks

    10 Technical data 10.8 Approvals / approval marks Approval Test facility Certificates / Inspection basis Valid for type mark certification numbers Underwriters Labo- E223137 UL 508 (Category NRNT), 709062/X-XX-020-... ratories pollution degree 2 Load current 20 A C22.2 NO. 14-10 Industrial Control Equipment (Category NRNT7) UL 508 (Category NRNT)
  • Page 114 10 Technical data V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 115: Certificates

    11 Certificates 11.1 UL V3.01/EN/00561073 [thyristor power controller TYA 202]...
  • Page 116 11 Certificates V3.01/EN/00561073 [thyristor power switch TYA 202]...

  • Page 117: China

    11 Certificates 11.2 China +D]DUGRXV VXEVWDQFHV 3URGXFW JURXS  &G &U 9, 3%'( +RXVLQJ *HKlXVH 3URFHVV FRQQHFWLRQ 3UR]HVVDQVFKOXVV 0XWWHU 6FUHZ 6FKUDXEH ^: d ^: d ' d ' d ' d ' d V3.01/EN/00561073 [thyristor power controller TYA 202]...
  • Page 118 11 Certificates V3.01/EN/00561073 [thyristor power switch TYA 202]...

This manual is also suitable for:

709062/8-01-100709062/8-01-150709062/8-01-250709062/8-01-32709062/8-01-020709062/8-01-200 ... Show all

Table of Contents
