CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice.
REC 4 REVISION LOG Table 1: Revision log� Date Revision Description 11/18 M202B01-03-18A Initial Version SYMBOLS Table 2: Symbols Symbol Description In compliance with the relevant European directive. Device covered by European directive 2012/19/EC. At the end of its useful life, do not leave the unit in a household waste container.

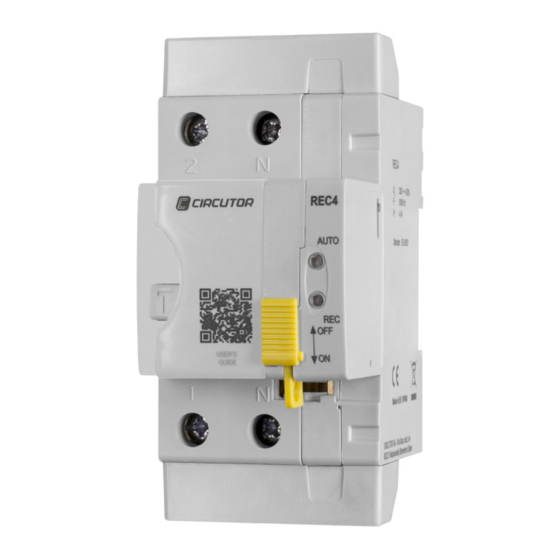

CIRCUTOR’s after-sales service. 2�- PRODUCT DESCRIPTION REC 4 is a self-reclosing RCCB according to the leakage current of the installation. The device is designed for single-phase installations with 2 poles and is fitted with automatic re- closing, which is activated following prior monitoring of the insulation, measuring the resistance value downstream the RCCB in accordance with the temporisation indicated in the reclosing table.
1�- Place the device at the top of the DIN rail. 2�- Swing the REC 4 downwards until it is secured to the lower section of the DIN rail. 3�- Make sure that it has been secured on the rail.
REC 4 3.3.- CONNECTION The REC 4 must be connected to an installation protected with fuses suitable for its power sup- ply range and consumption. In single-phase installations (phase and neutral, L and N), the supply cables are connected up top and the cables from the protected loads are connected below.
REC 4 4�- START-UP shows a description of the most important pieces of device. Figure 2 CONTROL MODULE RCCB LEDs Protection AUTO cover Mode selection switch Figure 2: Description of the REC4� Once the device is installed you must carry out the following start-up sequence for it to work properly.
REC 4 Figure 3: Switch’s M2 hole to seal access to the RCCB� 4.2.- MANUAL MODE , the start-up se- If the unit is going to operate in manual mode, see Section “5.1.- MANUAL” quence is: 1�- Put the mode selector switch in Manual Mode (OFF).
Figure 2 5.1.- MANUAL The REC 4 can operate in manual mode as if it were a standard RCCB. To operate in this mode, the mode selector switch must be all the way to the top, in OFF posi- tion, to disable the unit’s automatic reclosing device. ( Figure 4 The RCCB must be reclosed manually.
5�2�1�- RECLOSING BY INSULATION Following a time delay after a disconnection due to an RCCB trip, the REC 4 makes a measure- ment to check whether there is a leakage current. If there is none it begins to reclose.
Table 4: LED indications� RCCB AUTO Operating mode Description status Device is manual operating mode. Manual There is no power to the REC 4. No reclosing sequence has been initi- Automatic ated. Slow Reclosing sequence initiated: Automatic flashing Time delay of the rearm sequence.
REC 4 6�- MAINTENANCE The RCCB must be checked frequently. Test sequence ( Figure 7 1�- Press the TEST (T) key. 2�- Check that the RCCB jumps to OFF position. TEST Figure 7: RCCB Test Sequence� In the event of a Test sequence failure, contact the after-sales service.
REC 4 7�- TECHNICAL FEATURES Power supply Mode self-powered Rated voltage 230V Tolerance ± 15% Frequency 50Hz - 60Hz , ±5% Maximum power consumption Installation category CAT III 300V RCCB Rated voltage 230V Rated current 40 A Sensitivity, IΔn 30 mA class A , AC: 250A 8/20μs...
Page 16
REC 4 54.5 Figure 8: REC 4 dimensions� Standard Residual current operated circuit-breakers without integral overcurrent UNE-EN 61008-1 protection for household and similar uses (RCCB’s) -- Part 1: General rules Requirements for automatic reclosing devices (ARDs) for circuit breakers- UNE-EN 50557...
• CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage”...
