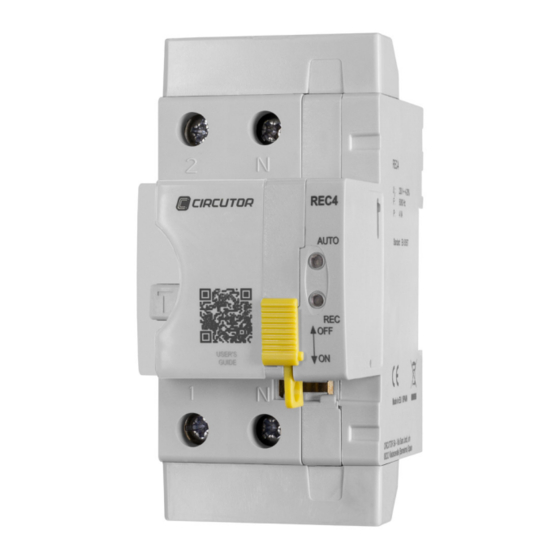

RCCB with automatic reclosing device
REC 4, REC4-C
INSTRUCTION MANUAL
(M202B01-03-23A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REC 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Circutor REC 4

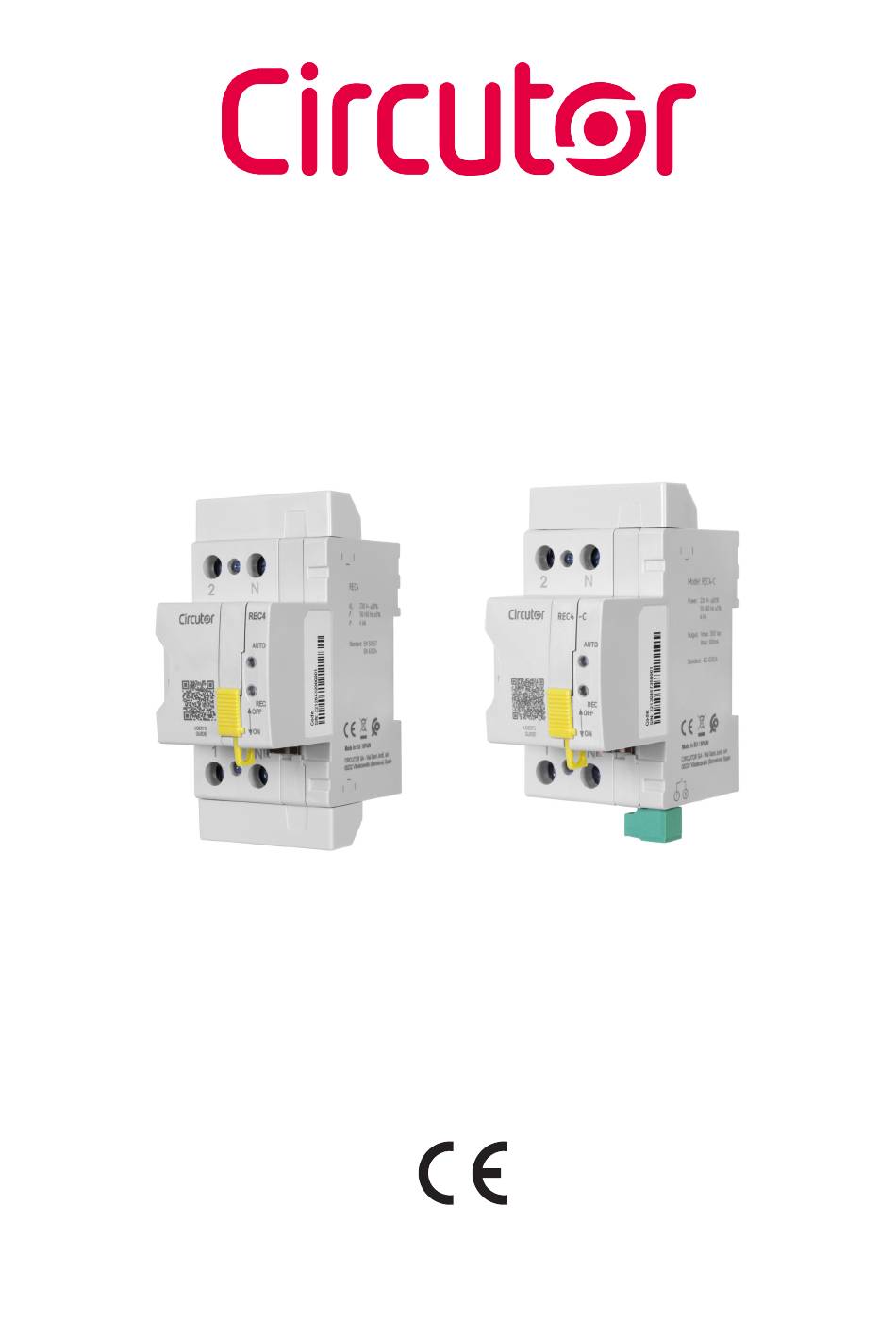

  • Page 1 RCCB with automatic reclosing device REC 4, REC4-C INSTRUCTION MANUAL (M202B01-03-23A)
  • Page 2 REC4 Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR S�A�U� reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S�A�U� on its web site, supplies its customers with the latest versions of the device specifi- cations and the most updated manuals.
  • Page 4: Table Of Contents

    REC4 CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������5 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 1�- VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������6 2�- PRODUCT DESCRIPTION �������������������������������������������������������������������������������������������������������������������������������������������������6 3�- DEVICE INSTALLATION ����������������������������������������������������������������������������������������������������������������������������������������������������8 3�1�- PRIOR RECOMMENDATIONS ������������������������������������������������������������������������������������������������������������������������������������8 3�2�- INSTALLATION ���������������������������������������������������������������������������������������������������������������������������������������������������������8 3�3�- CONNECTION �����������������������������������������������������������������������������������������������������������������������������������������������������������9 3�3�1�- CONNECTION DIAGRAM 2-POLE MODEL: REC4-2P, REC4-C-2P �����������������������������������������������������������������������9 3�3�2�- CONNECTION DIAGRAM 4-POLE MODEL: REC4-4P, REC4-C-4P ������������������������������������������������������������������...
  • Page 5: Revision Log

    REC4 REVISION LOG Table 1: Revision log� Date Revision Description 11/18 M202B01-03-18A Initial Version Changes in the following sections: 04/19 M202B01-03-20A 2.- 3.3. - 4.1. - 4.2. - 6. Changes in the following sections: 06/21 M202B01-03-21A 4.2. Changes in the following sections: 01/23 M202B01-03-23A 2.
  • Page 6: 1�- Verification Upon Reception

    - Installation guide If any problem is noticed upon reception, immediately contact the transport com- pany and/or CIRCUTOR’s after-sales service. 2.- PRODUCT DESCRIPTION REC4 is a 2 or 4-pole type A RCCB linked to a smart reclosing mo tor, which enables safe reclosing of the corresponding RCCB.
  • Page 7 REC4 Table 4: REC4-C Models� Models Reclosure mode Rated current (In) Sensitivity (ΔIn) REC4-C-2P-40-30 Time 40 A 30 mA REC4-C-2P-63-30 Time 63 A 30 mA REC4-C-2P-40-300 Time 40 A 300 mA REC4-C-2P-63-300 Time 63 A 300 mA REC4-C-4P-40-30 Time 40 A 30 mA REC4-C-4P-63-30 Time...
  • Page 8: 3�- Device Installation

    REC4 3.- DEVICE INSTALLATION 3�1�- PRIOR RECOMMENDATIONS In order to use the unit safely, it is critical that those who handle it follow the safety measures set out in the standards of the country where it is being used, use the neces- sary personal protective equipment and pay attention to the various warnings indicated in this instruction manual.
  • Page 9: 3�3�- Connection

    REC4 3�3�- CONNECTION The REC4 must be connected to an installation protected with fuses suitable for its power supply range and consumption. Note: Cross-section of the cable: 16 - 25mm Terminals, opening covers or removing elements can expose parts that are hazardous to the touch while the device is powered If the REC4 indicates a permanent failure (AUTO and REC LEDs are lit), you must check the RCCB and the installation.
  • Page 10: 3�3�2�- Connection Diagram 4-Pole Model: Rec4-4P, Rec4-C-4P

    REC4 3�3�2�- CONNECTION DIAGRAM 4-POLE MODEL: REC4-4P, REC4-C-4P CARGA / LOAD Figure 2: Connection diagram REC4-C-4P: Three phase system� Instruction Manual...
  • Page 11: 4�- Operation

    REC4 4.- OPERATION 4�1�- DESCRIPTION shows a description of the most important pieces of device. Figure 3 Figure 4 RCCB RCCB Control module Control module Protection cover TEST key LEDs LEDs TEST key Protection cover Mode selection Mode selection switch switch REC4-2P model manufactured from 01/23�...
  • Page 12: 4�2�- Leds

    REC4 4�2�- LEDs The device has two LEDs: AUTO in green and REC in red, which indicate the status of the REC4 at all times. ( Figure 5 Table 5 AUTO AUTO Figure 5: LEDs REC4� Table 5: LED indications� RCCB AUTO Operating mode...
  • Page 13: 4�3�-Indication Output (Model Rec4-C)

    REC4 4�3�-INDICATION OUTPUT (Model REC4-C) The REC4-C model has an output that indicates the blocking of the device when the maximum number of reconnections is exceeded ( Figure 6 Table 6 Vmax: 300 Vac/dc Imax: 0.1 A Figure 6: Indication output (REC4-C)� Table 6: REC4-C terminals�...
  • Page 14: 4�4�2�- Manual Mode

    REC4 REC4-2P model manufactured from 01/23� REC4-2P model REC4-C-2P model Figure 7: Switch’s M2 hole to seal access to the RCCB� 4�4�2�- MANUAL MODE If the device is going to operate in manual mode, see Section , the start-up sequence “4.5.1.- MANUAL”...
  • Page 15: 4�5�2�- Automatic

    REC4 REC4-2P model manufactured from 01/23� REC4-2P model REC4-C-2P model Figure 8: REC4 in manual mode, with mode selector switch at OFF� 4�5�2�- AUTOMATIC To operate in Automatic mode the mode selector switch must be completely downward,in ON position, to enable the device’s automatic reclosing system.( Figure 9 The AUTO LED is constantly lit and the REC LED lights up based on the unit’s status.
  • Page 16 REC4 If the time between a reclosure and the next trip is greater than the restart time, the reclosing attempts start over at zero. The delay and restart times depend on the number of attempts the reclosing device has made, as shown in Table 7.
  • Page 17: 5�- Maintenance

    REC4 5.- MAINTENANCE The RCCB must be checked frequently. Test sequence ( Figure 10 1�- Press the TEST (T) key. 2�- Check that the RCCB jumps to OFF position. TEST TEST REC4-2P model manufactured from 01/23� REC4-2P model REC4-C-2P model Figure 10: RCCB Test Sequence�...
  • Page 18: 6�- Technical Features

    REC4 6.- TECHNICAL FEATURES Power supply Mode self-powered Rated voltage 230V ~ ± 20% Frequency 50Hz - 60Hz , ±5% Maximum power consumption 6 VA Installation category CAT III 300V RCCB REC4-2P, REC4-C-2P 230 V Rated voltage REC4-4P, REC4-C-4P 400 V REC4-2P-40-30, REC4-C-2P-40-30 40 A REC4-2P-63-30, REC4-C-2P-63-30...
  • Page 19 REC4 (Continuation) Output (REC4-C model) Maximum current 100 mA Environmental features Earth leakage protection -25ºC ... +55ºC Operating temperature Automatic reclosing -10ºC ... +55ºC Storage temperature - 35ºC ... +65ºC Relative humidity (non-condensing) 5 ... 95% Maximum altitude 2000 m Resistance to pollution Category 2 Protection degree IP...
  • Page 20 REC4 54,5 Figure 11: REC4-2P dimensions� 54.5 REC4-2P model manufactured from 01/23). Figure 12:REC4-2P dimensions ( Instruction Manual...
  • Page 21 REC4 54.5 Figure 13:REC4-C-2P dimensions� Figure 14:REC4-4P dimensions� Instruction Manual...
  • Page 22 REC4 90.5 REC4-2P model manufactured from 01/23). Figure 15:REC4-4P dimensions ( 90.5 Figure 16:REC4-C-4P dimensions� Instruction Manual...
  • Page 23: 7�- Technical Service

    REC4 7.- TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR S�A�U� Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 24: 9�- Eu Declaration Of Conformity

    REC4 9.- EU DECLARATION OF CONFORMITY Instruction Manual...
  • Page 25 REC4 Instruction Manual...
  • Page 26 REC4 Instruction Manual...
  • Page 27 REC4 Instruction Manual...
  • Page 28 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
