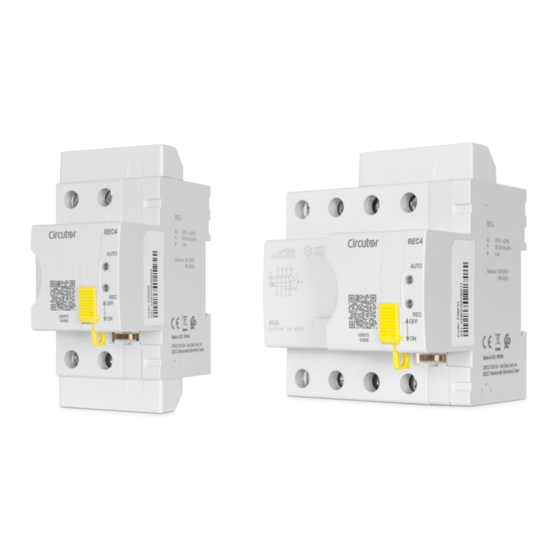

Rccb with automatic reclosing device
Hide thumbs Also See for REC 4 Series:

Advertisement

Quick Links

RCCB with automatic reclosing device
REC 4
INSTRUCTION MANUAL
(M202B01-03-20A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REC 4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Circutor REC 4 Series

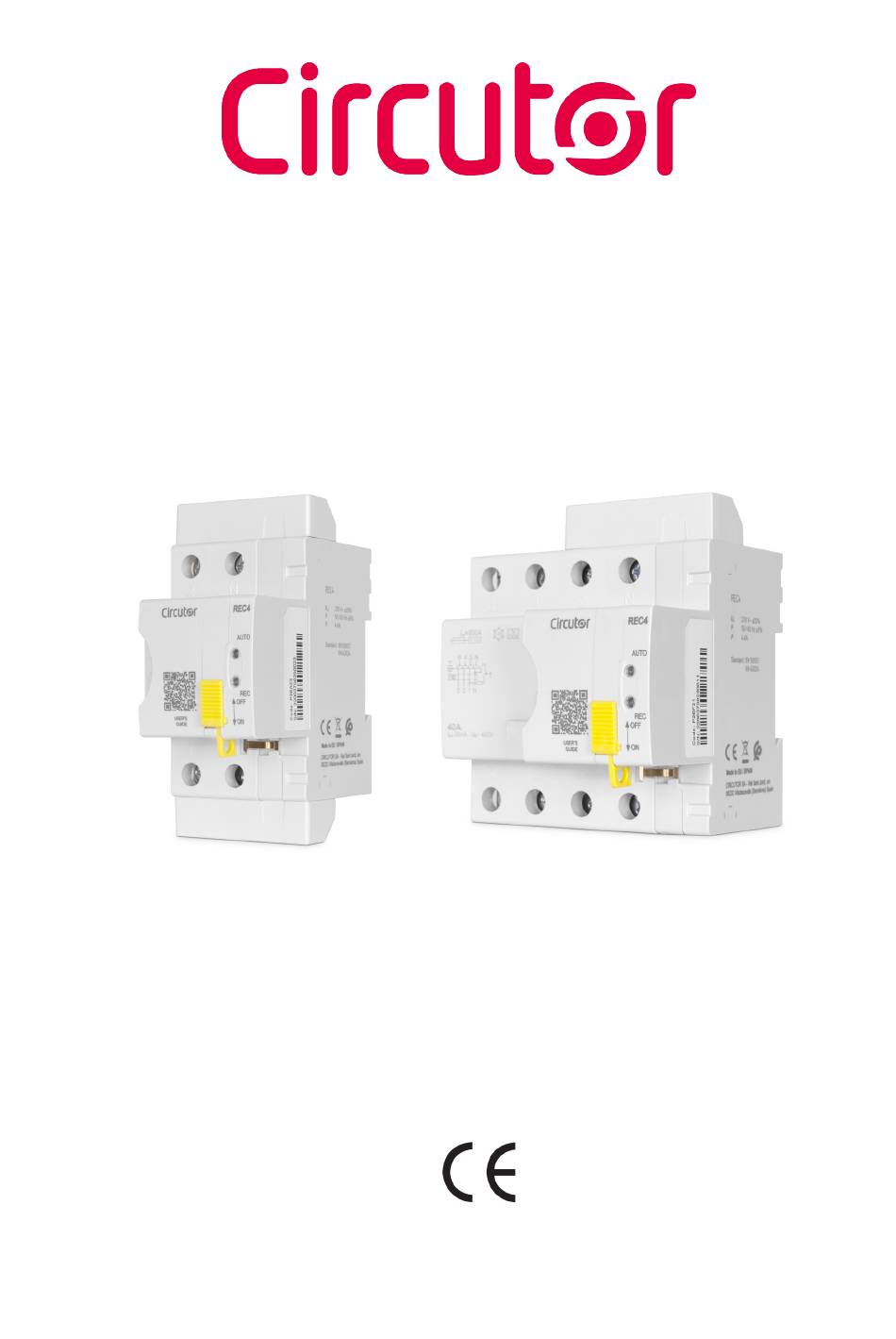

  • Page 1 RCCB with automatic reclosing device REC 4 INSTRUCTION MANUAL (M202B01-03-20A)
  • Page 2 REC4 Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice.
  • Page 4: Table Of Contents

    REC4 CONTENTS SAFETY PRECAUTIONS ��������������������������������������������������������������������������������������������������������������������������������������� 3 DISCLAIMER ����������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �������������������������������������������������������������������������������������������������������������������������������������������������������5 SYMBOLS ���������������������������������������������������������������������������������������������������������������������������������������������������������������5 1�- VERIFICATION UPON RECEPTION ����������������������������������������������������������������������������������������������������������������� 6 2�- PRODUCT DESCRIPTION �������������������������������������������������������������������������������������������������������������������������������� 6 3�- DEVICE INSTALLATION ����������������������������������������������������������������������������������������������������������������������������������� 7 3�1�- PRIOR RECOMMENDATIONS������������������������������������������������������������������������������������������������������������������ 7 3�2�- INSTALLATION ����������������������������������������������������������������������������������������������������������������������������������������� 7 3�3�- CONNECTION ������������������������������������������������������������������������������������������������������������������������������������������� 8 3�3�1�- CONNECTION DIAGRAM 2-POLE MODEL: REC4-2P ���������������������������������������������������������������������...
  • Page 5: Revision Log

    REC4 REVISION LOG Table 1: Revision log� Date Revision Description 11/18 M202B01-03-18A Initial Version Changes in the following sections: 04/19 M202B01-03-20A 2.- 3.3. - 4.1. - 4.2. - 6. SYMBOLS Table 2: Symbols Symbol Description In compliance with the relevant European directive. Device covered by European directive 2012/19/EC.
  • Page 6: 1�- Verification Upon Reception

    - Installation guide If any problem is noticed upon reception, immediately contact the transport company and/or CIRCUTOR’s after-sales service. 2�- PRODUCT DESCRIPTION REC4 is a 2 or 4-pole type A RCCB linked to a smart reclosing mo tor, which enables safe reclosing of the corresponding RCCB.
  • Page 7: 3�- Device Installation

    REC4 3�- DEVICE INSTALLATION 3.1.- PRIOR RECOMMENDATIONS In order to use the unit safely, it is critical that those who handle it follow the safety measures set out in the standards of the country where it is being used, use the necessary personal protective equipment and pay attention to the various warn- ings indicated in this instruction manual.
  • Page 8: 3�3�- Connection

    REC4 3.3.- CONNECTION The REC4 must be connected to an installation protected with fuses suitable for its power sup- ply range and consumption. Note: Cross-section of the cable: 16 - 25mm Terminals, opening covers or removing elements can expose parts that are hazardous to the touch while the device is powered If the REC4 indicates a permanent failure (AUTO and REC LEDs are lit), you must check the RCCB and the installation.
  • Page 9: 3�3�2�- Connection Diagram 4-Pole Model: Rec4-4P

    REC4 3�3�2�- CONNECTION DIAGRAM 4-POLE MODEL: REC4-4P CARGA / LOAD Figure 2: Connection diagram REC4-4P: Three phase system� CARGA / LOAD Figure 3: Connection diagram REC4-4P: Single phase system� Instruction Manual...
  • Page 10: 4�- Operation

    REC4 4�- OPERATION 4.1.- DESCRIPTION shows a description of the most important pieces of device. Figure 4 Figure 5 RCCB Control module Protection cover LEDs TEST key Mode selection switch Figure 4: Description of the REC4-2P� RCCB Control module Protection cover LEDs Mode selection...
  • Page 11: 4�2�- Leds

    REC4 4.2.- LEDs The device has two LEDs: AUTO in green and REC in red, which indicate the status of the REC4 at all times. ( Figure 6 Table 4 AUTO AUTO Figure 6: LEDs REC4� Table 4: LED indications� RCCB AUTO Operating mode...
  • Page 12: 4�3�- Start-Up

    REC4 4.3.- START-UP Once the device is installed you must carry out the following start-up sequence for it to work properly. 4�3�1�- AUTOMATIC MODE If the device is going to operate in automatic mode, see Section , the start- “4.4.2.- AUTOMATIC” up sequence is: 1�- Put the mode selector switch in Manual Mode (OFF).
  • Page 13: 4�4�- Operating Modes

    REC4 4.4.- OPERATING MODES The device has two operating modes, manual and automatic, which can be selected using the mode selector switch ( Figure 4 Figure 5 4�4�1�- MANUAL The REC4 can operate in manual mode as if it were a standard RCCB. To operate in this mode, the mode selector switch must be all the way to the top, in OFF posi- tion, to disable the unit’s automatic reclosing device.
  • Page 14 REC4 The REC4 allows one mode of automatic reclosing: - Reclosing by insulation, the device does not reclose until the leakage has disap- peared. 4�4�2�1�- Reclosing by insulation Following a time delay after a disconnection due to an RCCB trip, the REC4 makes a measure- ment to check whether there is a leakage current.
  • Page 15: 5�- Maintenance

    REC4 5�- MAINTENANCE The RCCB must be checked frequently. Test sequence ( Figure 10 1�- Press the TEST (T) key. 2�- Check that the RCCB jumps to OFF position. TEST Figure 10: RCCB Test Sequence� In the event of a Test sequence failure, contact the after-sales service. Instruction Manual...
  • Page 16: 6�- Technical Features

    REC4 6�- TECHNICAL FEATURES Power supply Mode self-powered Rated voltage 230V Tolerance ± 15% Frequency 50Hz - 60Hz , ±5% Maximum power consumption 5 VA Installation category CAT III 300V RCCB REC4-2P 230 V Rated voltage REC4-4P 400 V REC4-2P-40-30 40 A REC4-2P-63-30 63 A...
  • Page 17 REC4 Environmental features Earth leakage protection -25ºC ... +55ºC Operating temperature Automatic reclosing -10ºC ... +55ºC Storage temperature - 35ºC ... +65ºC Relative humidity (non-condensing) 5 ... 95% Maximum altitude 2000 m Resistance to pollution Category 2 Protection degree IP 20 Mechanical features Fixing DIN rail...
  • Page 18 REC4 Figure 12:REC4-4P dimensions� Instruction Manual...
  • Page 19: 7�- Technical Service

    • CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage”...
  • Page 20: 9�- Ce Certificate

    REC4 9�- CE CERTIFICATE Instruction Manual...
  • Page 21 REC4 Instruction Manual...
  • Page 22 REC4 Instruction Manual...
  • Page 23 REC4 Instruction Manual...
  • Page 24 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.com...
