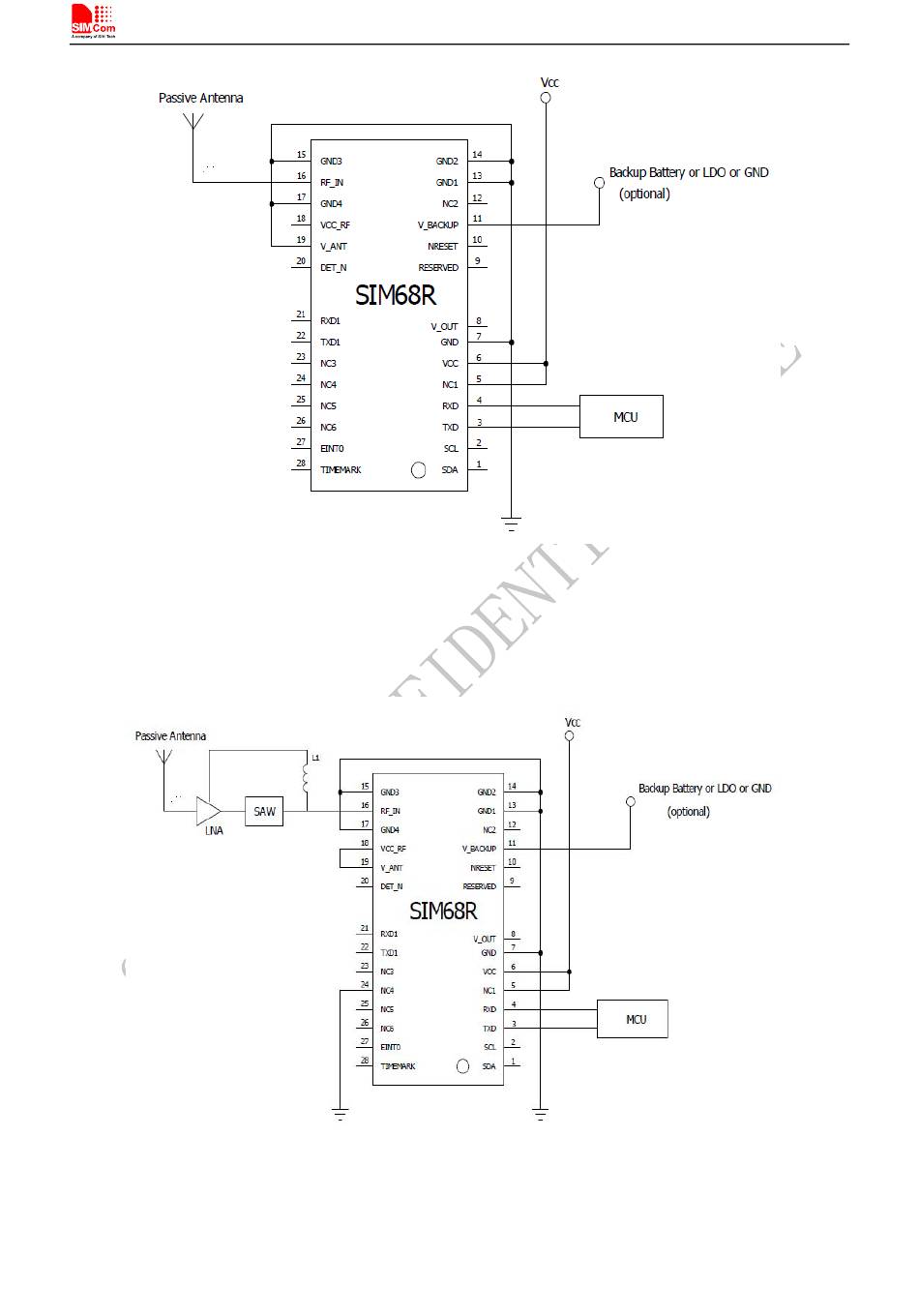

Figure 5: SIM68R passive antenna design
For best performance with passive antenna designs user can use an external LNA to increase the sensitivity up
3~4 dB. Please see Figure 6 and Figure 7.
Figure 6: SIM68R passive antenna design (with external LNA and SAW)
21
SIM68R_Hardware Design_V1.02
2013-01-22
