1 – Introduction & Overview

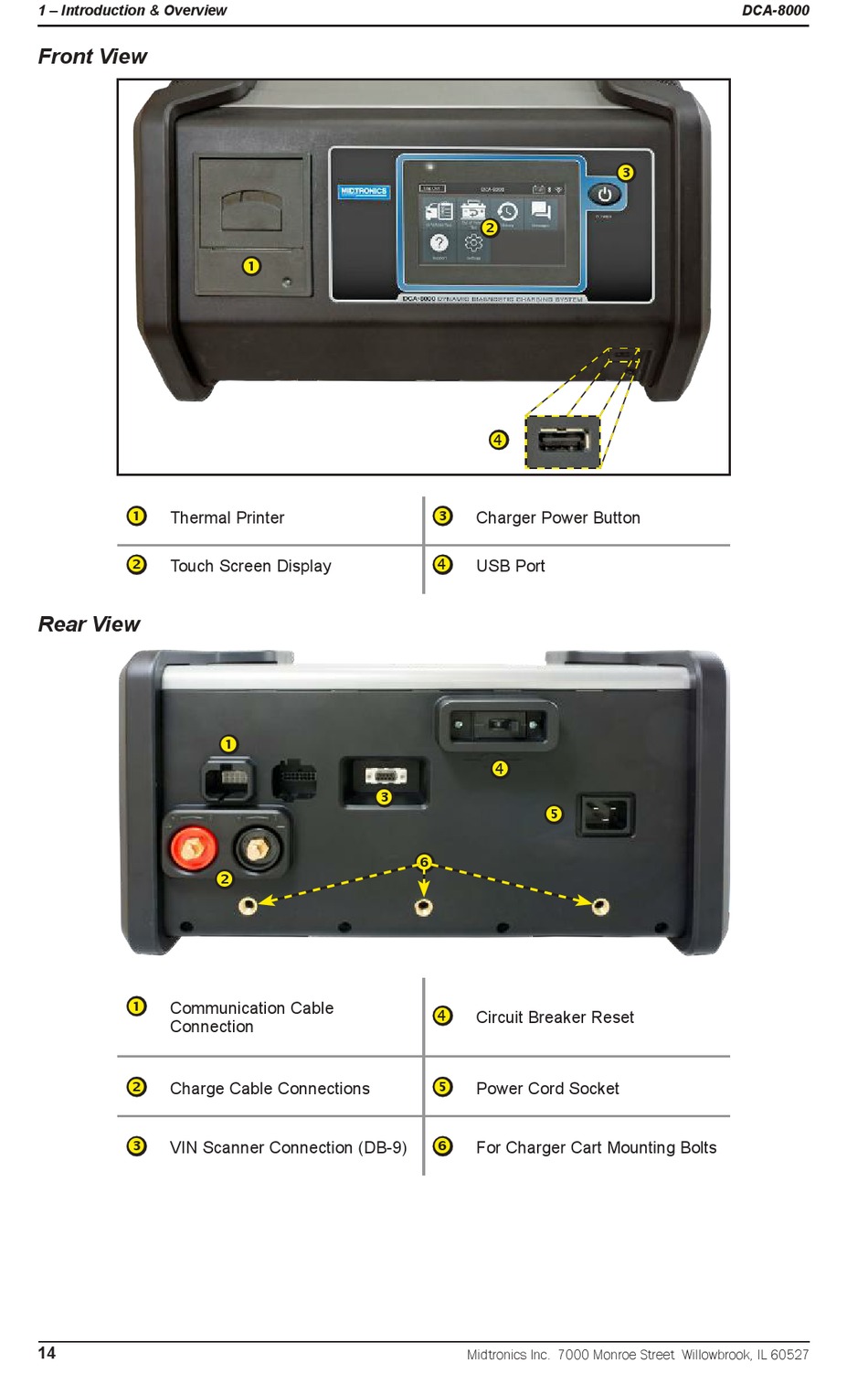

Front View
Thermal Printer
Touch Screen Display
Rear View
Communication Cable
Connection
Charge Cable Connections
VIN Scanner Connection (DB-9)
14
Charger Power Button
USB Port
Circuit Breaker Reset
Power Cord Socket
For Charger Cart Mounting Bolts
Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527
DCA-8000
