Optional - Quad saw
Technical Data and Description
Each shaft is driven by vee belts, and the whole unit is powered by a hydraulic motor.
Branch carriers are placed between the blades.
The Quad saw is supplied with a special bracket enabling mounting on various
vehicles and machines.
Frame with 4
shafts.
For mounting on
hydraulic hedge
cutters
500mm saw blades

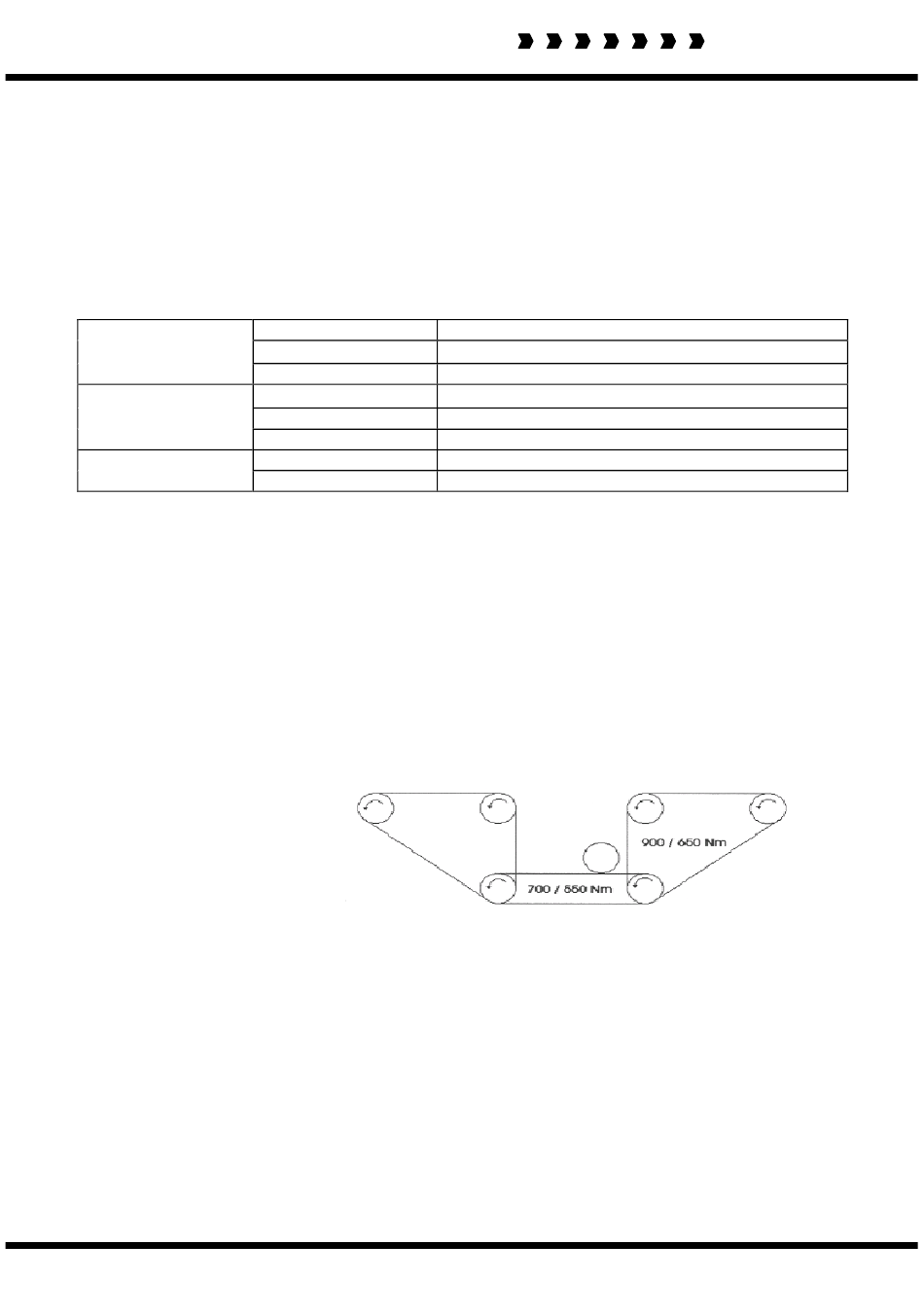

Belt Diagram - Quad saw
It is important that the belts are correctly mounted and tightened. When new belts
are mounted they must be tensioned to 700N for the short and 900N for the long
belts.
After 10 to 15 working hours the belts may have slackened and must be checked.
Beware! The tension has now changed to 550N for the short and 650N for the long
belts.
Contact the Spearhead Service department if you have any questions.
Mounting of the Quad saw
The blades must be mounted in a downward cut rotation (Fig. 1). Always use the
blades vertically positioned in relation to the direction of travel (Fig. 2).
The hydraulic hoses must be connected correctly to achieve the correct direction of
rotation. Drainage hose must be lead directly to the oil reservoir. Daily inspect all
hydraulic hoses and fittings for damage or leaks.
When starting for the first time the speed of rotation on the blades must be measured
(3000 - 3200r.p.m.). This rotation should be maintained to ensure optimum
performance.
Excel 606, 686, 726 & 836
Working width
Blade speed
Blade diameter
Teeth per blade
Materials
Performance
Application
Relief valve pressure
2000mm
3000 - 3200 R.P.M.
500mm
72
Hardened steel with special teeth HM precision blade
1 - 120mm branch diameter
Vertical
Max. 120 atmospheres/bar
