Optional Hydraulic Rear Roller
Hedge cutting
Grass cutting
The hydraulic rear roller is controlled by a
switch on the control panel. The control
of the rear roller is either raised or lowered,
there is no in-between height control.
Height is set as above for either hedge or
grass cutting.

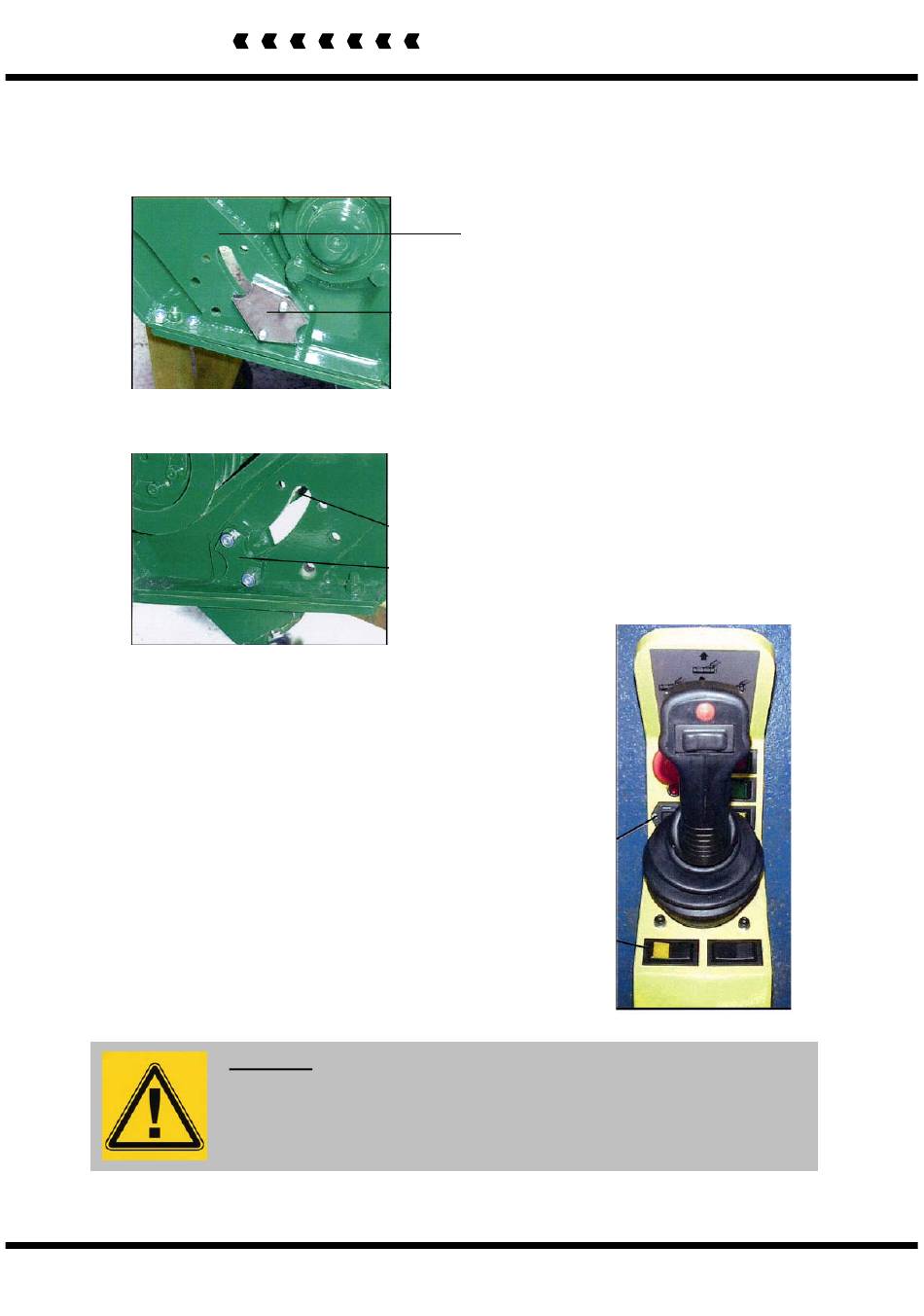

Hydraulic rear roller control switch. Positions depend on
machine options specified.
Note
To ensure the roller moves freely its important to keep the roller
Side plates and head cowl clean and lubricated
36
Attention
When hedge cutter is fitted with reverse rotor direction control the
hydraulic rear roller will not function.
To set rear roller when rotor is reversed, bolts supplied must be fitted to h
old roller in position.
Grease daily
Setup for hedge cutting uses large stops in
either position at bottom of adjustment slot
Setup for grass cutting uses small stops in
either position, with the option of an
Additional stop at the top of the adjustment
slot.
Excel 606, 686, 726 & 836
