4606-9102 LCD Annunciator installation instructions
Installing the
4606-9102 LCD
Annunciator
3. Using switch SW2 (see Figure 4), set the annunciator's address in accordance
with Table 2. Switches SW2-1 through SW2-7 set the annunciator's address, and switch SW2-8
sets the annunciator's baud rate.

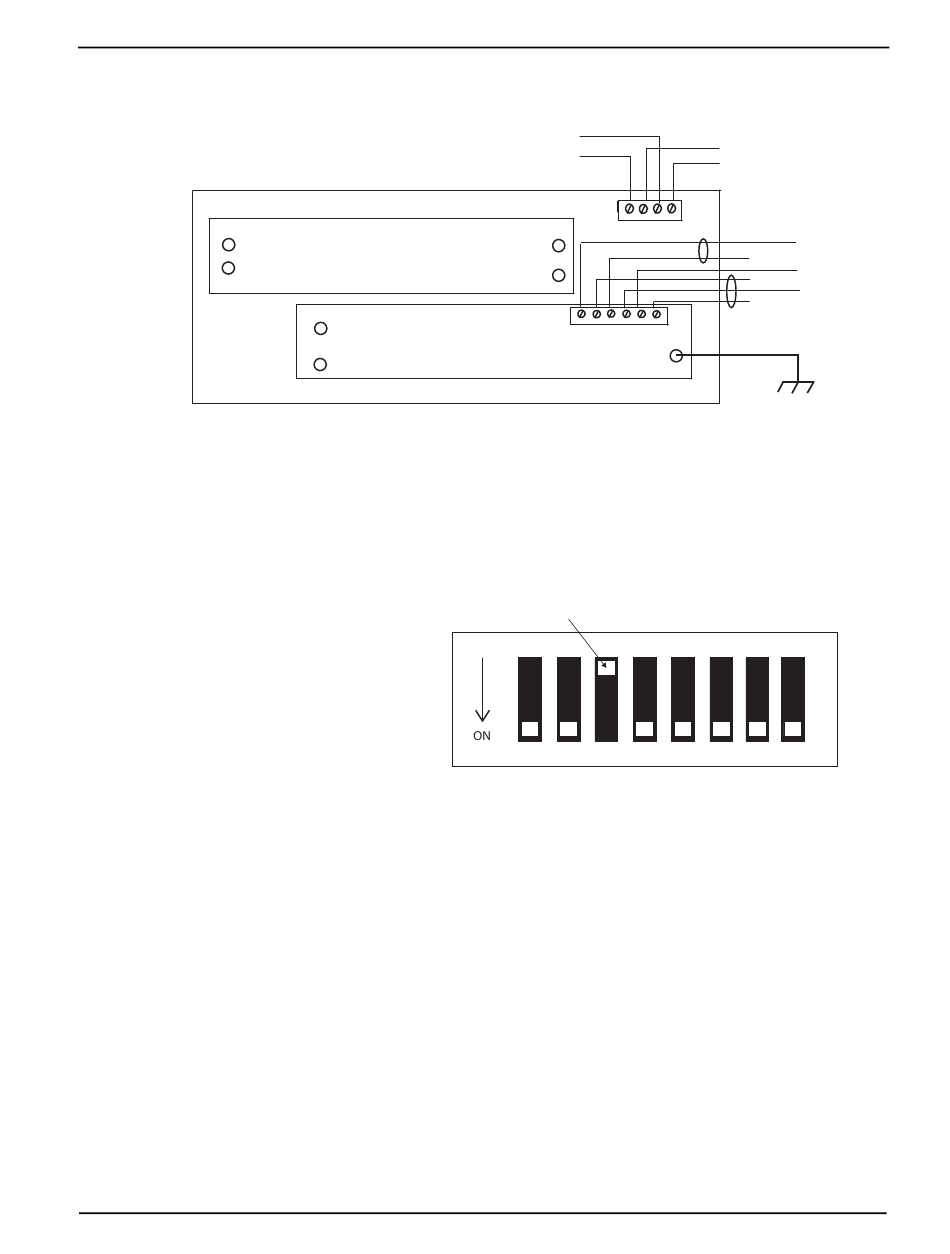

Figure 3. Power and RUI Communicating Wiring to TB1 and TB2
SW2-8 OFF or OPEN = 1200 Baud.
SW2-8 ON or CLOSED = 9600 Baud.
Note: DIP switch SW2
is located at the bottom of the
electronics assembly.
24C (0V)
+24VDC
TB1
Position of 3 shown
in OFF position.
Example depicts:
Address = 4
Baud Rate = 9600
Figure 4. DIP switch SW2
3
+24VDC
24C (0V)
TB2
-COMM (RUI-)
+COMM (RUI+)
SHIELD
-COMM (RUI-)
+COMM (RUI+)
SHIELD
GROUND HARNESS
733-936
Continued on the next page.
