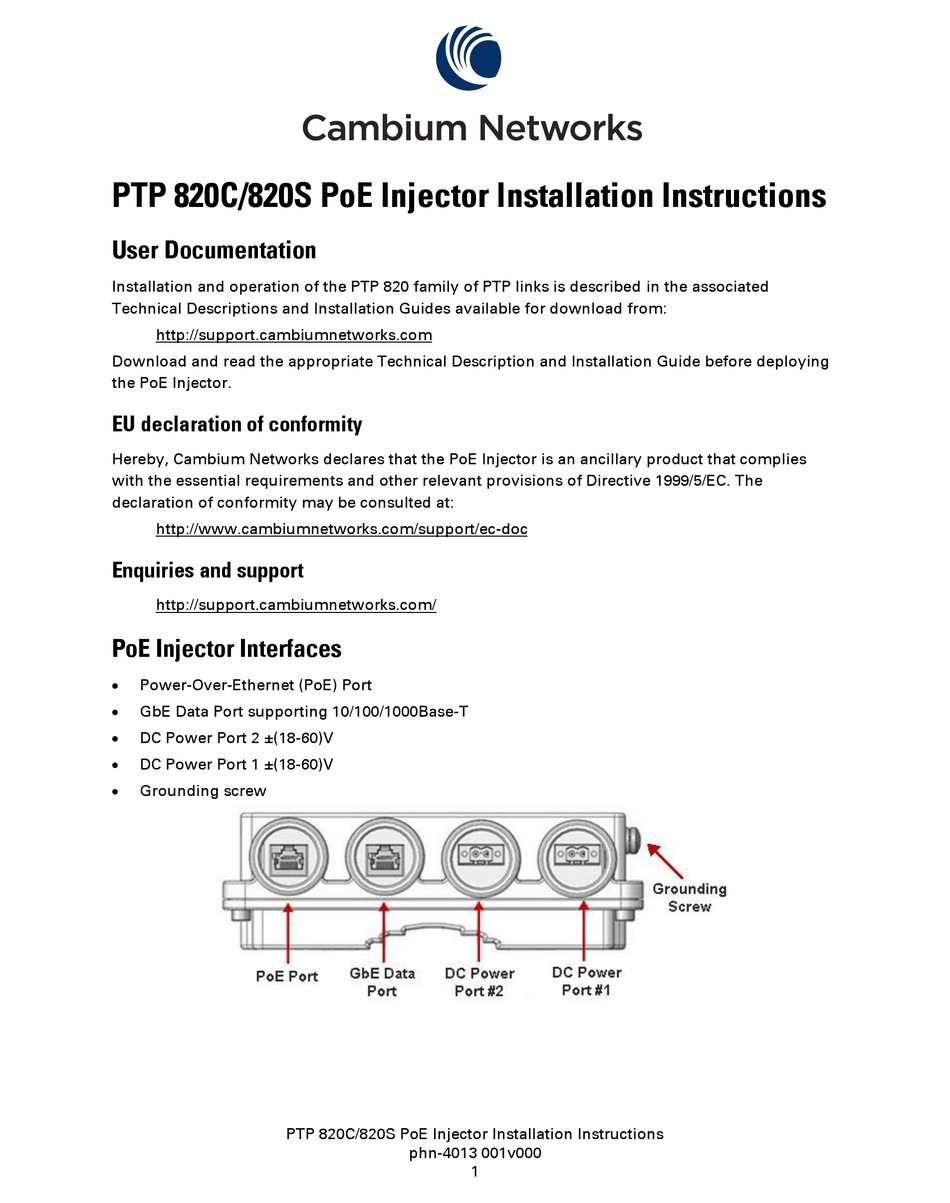

PTP 820C/820S PoE Injector Installation Instructions
User Documentation
Installation and operation of the PTP 820 family of PTP links is described in the associated
Technical Descriptions and Installation Guides available for download from:
http://support.cambiumnetworks.com
Download and read the appropriate Technical Description and Installation Guide before deploying
the PoE Injector.
EU declaration of conformity
Hereby, Cambium Networks declares that the PoE Injector is an ancillary product that complies
with the essential requirements and other relevant provisions of Directive 1999/5/EC. The
declaration of conformity may be consulted at:
http://www.cambiumnetworks.com/support/ec-doc
Enquiries and support
http://support.cambiumnetworks.com/
PoE Injector Interfaces
Power-Over-Ethernet (PoE) Port
GbE Data Port supporting 10/100/1000Base-T
DC Power Port 2 ±(18-60)V
DC Power Port 1 ±(18-60)V
Grounding screw
PTP 820C/820S PoE Injector Installation Instructions
phn-4013 001v000
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cambium Networks PTP 820 Series
Summary of Contents for Cambium Networks PTP 820 Series
- Page 1 PoE Injector. EU declaration of conformity Hereby, Cambium Networks declares that the PoE Injector is an ancillary product that complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at: http://www.cambiumnetworks.com/support/ec-doc...
- Page 2 PoE Injector Grounding On the right side of each PoE Injector, loosen the screw, plain washer, and serrated washer. Place the cable lug (supplied with the PoE injector kit) between the plain and serrated washers. Tighten the screw. PoE Injector Cable Connection Disassemble the relevant cap from the PoE Injector.
- Page 3 Drill two 6mm diameter holes, with 100mm between the center of the holes. Insert the anchors with the bolts. Place the washers on the bolts. Tighten the nuts. Mount PoE Injector to Wall Caution For the warranty to be honored, you must install the unit in accordance with the instructions above.
