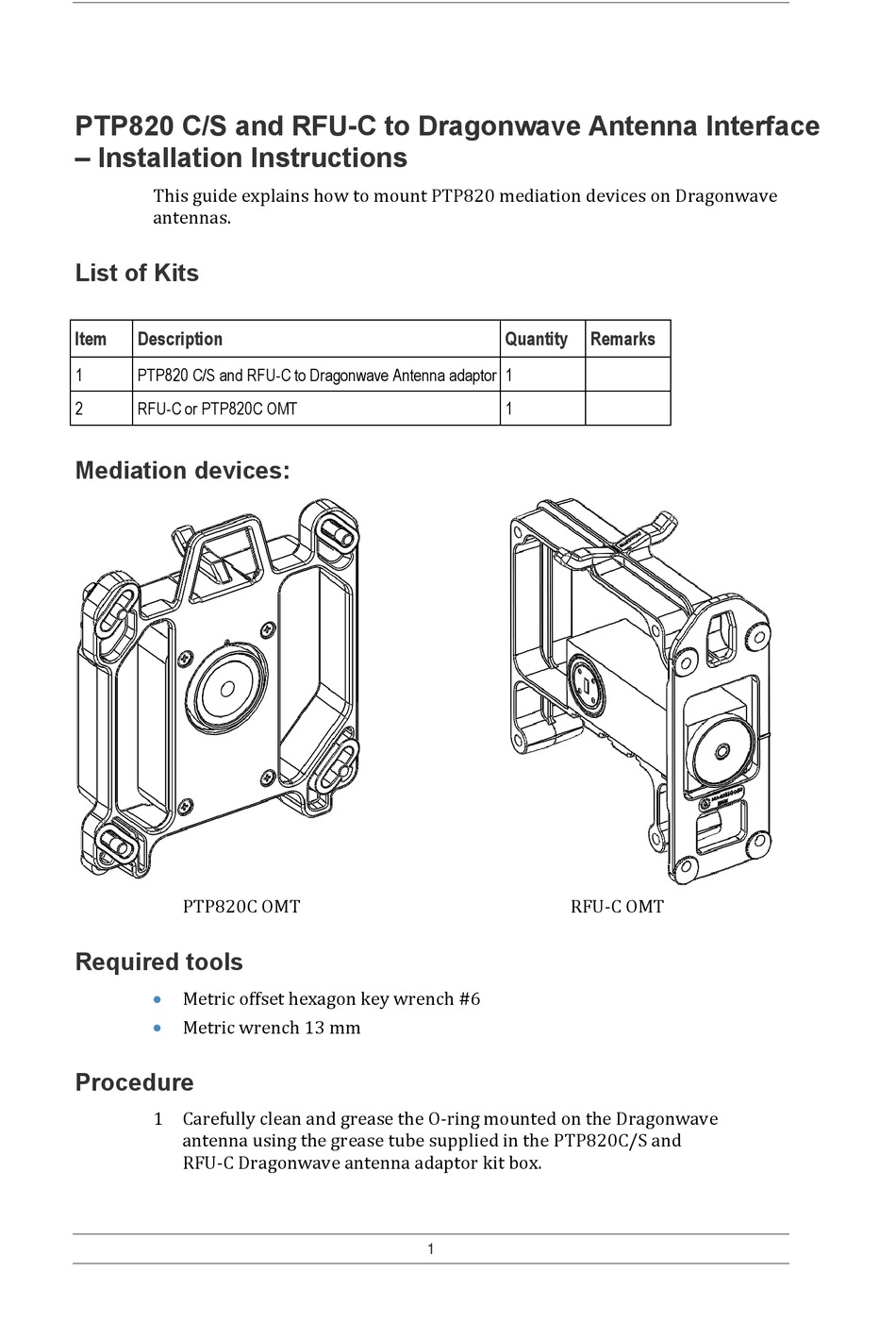

PTP820 C/S and RFU-C to Dragonwave Antenna Interface
– Installation Instructions
This guide explains how to mount PTP820 mediation devices on Dragonwave
antennas.
List of Kits
Item
Description
PTP820 C/S and RFU-C to Dragonwave Antenna adaptor 1
1
2
RFU-C or PTP820C OMT
Mediation devices:
PTP820C OMT
Required tools
Metric offset hexagon key wrench #6
Metric wrench 13 mm
Procedure
antenna using the grease tube supplied in the PTP820C/S and
1 Carefully clean and grease the O-ring mounted on the Dragonwave
RFU-C Dragonwave antenna adaptor kit box.
Quantity
1
RFU-C OMT
1
Remarks
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cambium Networks PTP820C
Summary of Contents for Cambium Networks PTP820C
-
Page 1: Installation Instructions
Metric offset hexagon key wrench #6 Metric wrench 13 mm Procedure antenna using the grease tube supplied in the PTP820C/S and 1 Carefully clean and grease the O-ring mounted on the Dragonwave RFU-C Dragonwave antenna adaptor kit box. - Page 2 2 Gently slide the PTP820C/S and RFU-C Dragonwave antenna adaptor onto the Dragonwave antenna. Make sure that the hook is facing up and close 3 If the O-ring is already mounted to the PTP820C/S and RFU-C side of the latches firmly.
- Page 3 4 Mount the OMT onto the PTP820C/S and RFU-C Dragonwave antenna adaptor using the screws provided in the OMT kit. PTP820C OMT RFU-C OMT 5 Mount the Radio according to the relevant radio installation instructions.
