Operator Panel And Display - IKA ICC control Manual

A
L
M
N
F
B

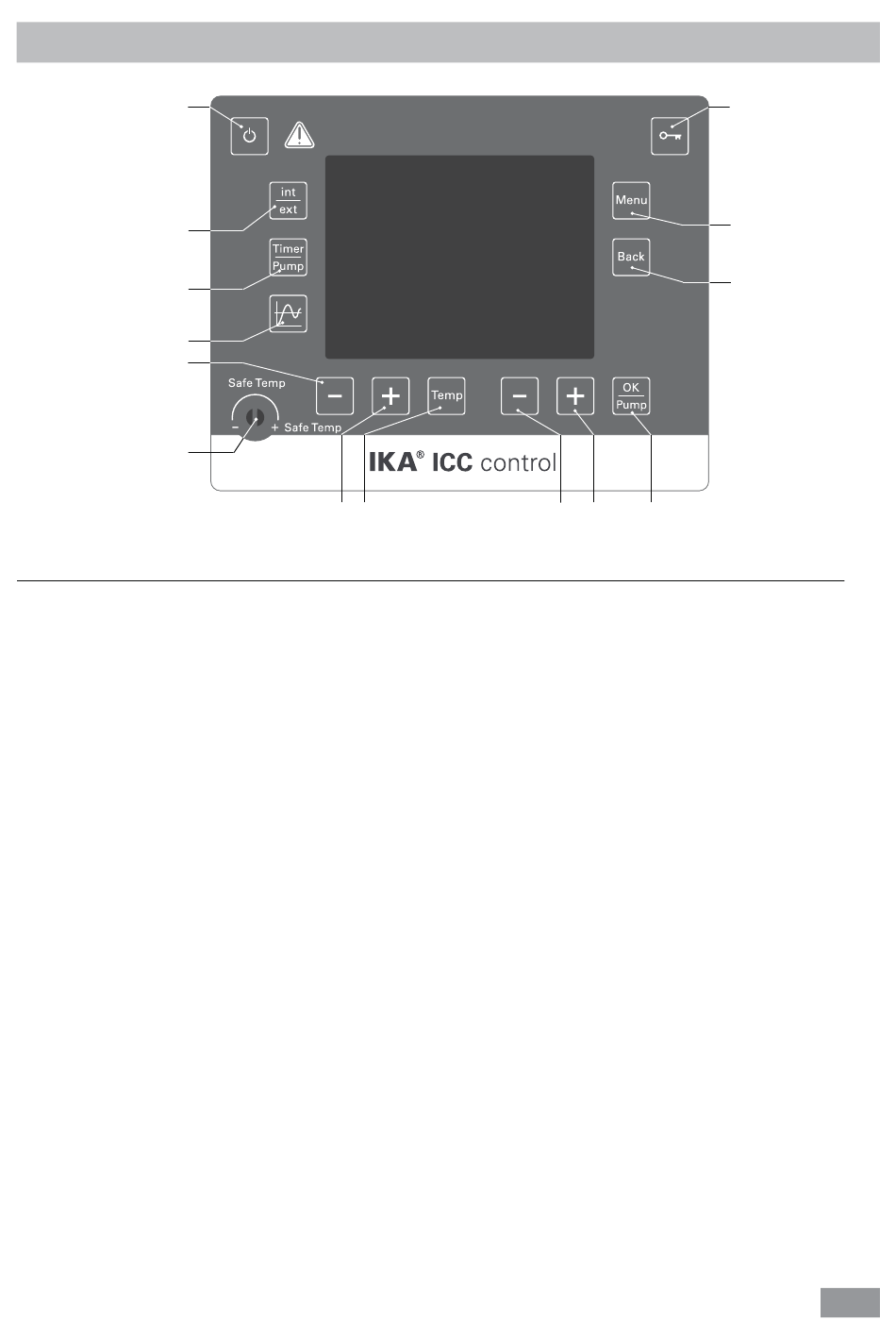

Fig. 3
Item Designation
A ON/OFF button:
B Adjustable safety circuit:
D "Temp" button:
E "Temp (+)" button:
F "Temp (-)" button:
G "OK/Pump" button:
H "Pump (+)" button:
I "Pump (-)" button:
J "Menu" button:
K "Back" button:
L "int/ext" button:
M "Timer/Pump" button:
N Graph button:
O Key button:

Operator panel and display

E D
Function
Switch on/off the circulator.
Adjust the safety temperature limit with delivered screwdriver.
Start/stop the heating function.
Increase the temperature setting value.
Decrease the temperature setting value.
Start/stop the pump function.
Select and open the menu options.
Confirm the menu settings.
Increase the pump speed setting value.
Navigation and changing the setting in the menu.
Decrease the pump speed setting value.
Navigation and changing the setting in the menu.
Press it once: menu option is display.
Press it a second time: back to the working screen.
Return to the previous menu level.
Switch between the internal and external temperature display and control.
Switch between the timer and pump display.
Display time/temperature graph
Lock/unlock keys.
I H G
O
J
K
