• Menu navigation and structure:

Menu navigation

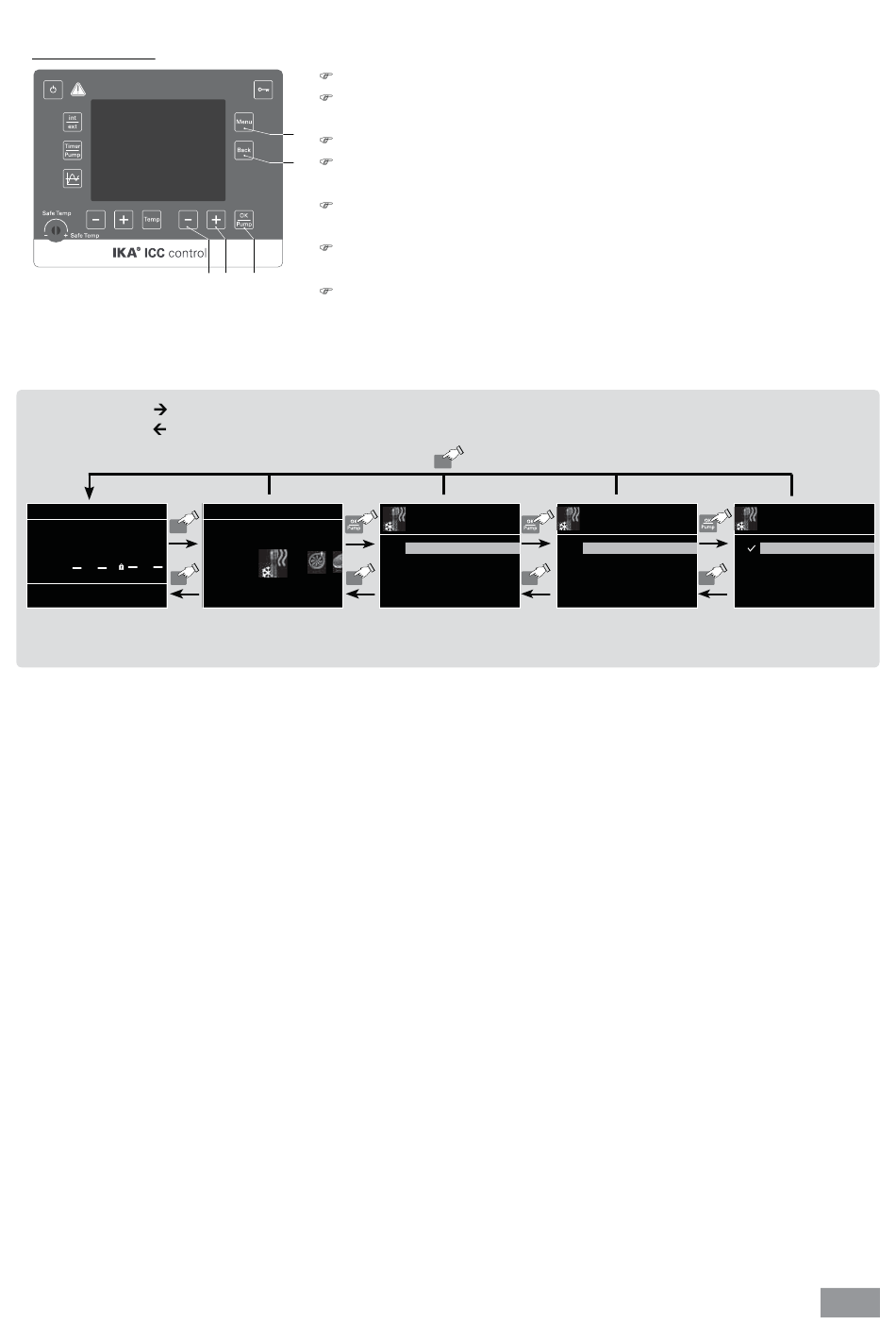

Fig. 10
Note: When the tempering or pump functions are active, the menu is locked. On the display, the active menu option is
highlighted in yellow. The active status of a menu item is marked with a check (√).
Press the "Menu" button (J), "OK/Pump" button (G) and "Pump (+)" button (H) or "Pump (-)" button (I)
Menu navigation:
Press the "Back" button (K) or the "Menu" button (J).
A
Menu
0.00
int °C
ext °C Safe Temp °C
Back
int 0.00 1000
set °C Pump rpm
Note: If you press the "Menu" button (J), the system skips directly back to the working screen.
If you press the "Back" button (K), the system skips back to the previous screen.
Fig. 11
Press the "Menu" key (J).
Select the menu option by pressing the "Pump (+)" button (H) or "Pump
(-)" button (I).
J
Open the menu item by pressing the "OK/Pump" button (G).
Press the "Pump (+)" button (H) or "Pump (-)" button (I) to select the desired
K
menu option and edit the values or settings.
Press the the "OK/Pump" button (G) to get into sub menu items to active/
inactive to switch settings or to confirm settings ("OK").
Press the "Back" button (K) to a setting or cancel to return to the previous
menu.
I H G
Press the "Menu" button (J) to return directly to the working screen.
MENU
Back
TEMPERING
Menu
Tempering
Control
Limits
Temperature Sensor
Back
> Tempering
Control
Control Mode
Control Parameters
Fluids
Back
> Tempering > Control
Control Mode
Internal (int)
External (ext)
