Quick Start Guide
Quick Start Guide

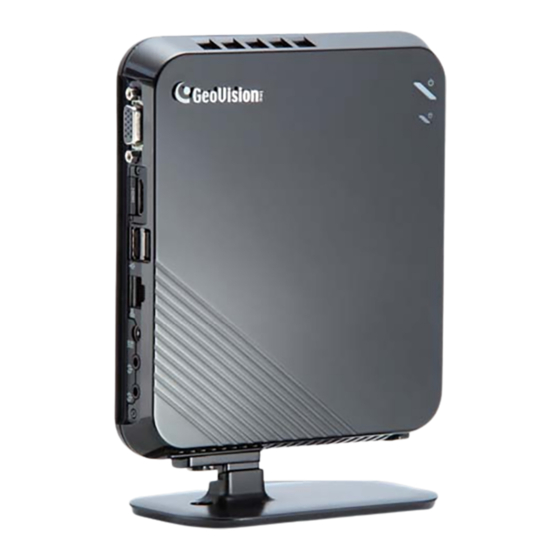

GV-NVR System Lite V2 (Rev. B)
Thank you for purchasing GV-NVR System Lite V2. This guide is designed to assist the new user in
getting immediate results from the GV-NVR System Lite V2. For advanced information on how to use
the GV-NVR System Lite V2, please refer to GV-NVR System Lite V2 User's Manual (GV-Desktop <
Program button < User Manual).
The Vision of Security
NVRLV2BV10-QG-B
RoHS
2013/10
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-NVR System Lite V2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-NVR System Lite V2 Series

Summary of Contents for GeoVision GV-NVR System Lite V2 Series

  • Page 1 Quick Start Guide Quick Start Guide GV-NVR System Lite V2 (Rev. B) The Vision of Security RoHS Thank you for purchasing GV-NVR System Lite V2. This guide is designed to assist the new user in 2013/10 getting immediate results from the GV-NVR System Lite V2. For advanced information on how to use English the GV-NVR System Lite V2, please refer to GV-NVR System Lite V2 User's Manual (GV-Desktop <...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 Preface Welcome to the GV-NVR System Lite V2 (Rev. B) Quick Start Guide. The GV-NVR System Lite V2 (Rev. B) has two models: Models GV-NVR Lite V2 (Rev. B) 1 TB GV-NVR Lite V2 (Rev. B) 1.5 TB This Quick Start Guide is designed for the Revision B of GV-NVR System Lite V2. It provides the basic instructions to guide you through the installation and use of the GV-NVR System Lite V2.

  • Page 4: Table Of Contents

    Contents 1. Basic Installation ......................1 2. Packing List ........................3 3. Supported IP Cameras and Dongle Options ..............4 GV-NVR System Lite V2 Dongle ..................... 7 4. Mounting Method......................8 Standing Mount..........................8 Monitor Mount..........................8 5. Basic Configurations....................10 Assigning the IP Address Automatically ..................10 Setting Up Third-Party IP Cameras ....................

  • Page 5: Basic Installation

    1. Packing List Important: Please keep the original carton and all packing materials for future shipping need. • GV-NVR System Lite V2 x 1 • AC Power Cord x 1 • Power Adapter x 1 • Standing Mount Kit (1 Base Stand and 1 Base Stand Screw included) x 1 •...

  • Page 6: Supported Ip Cameras And Dongle Options

    2. Supported IP Cameras and Dongle Options The GV-NVR Lite V2 supports connections to GV-IP devices and third-party IP cameras. You can adopt one of the following combinations: IP cameras excluding GV-Fisheye cameras • Connect up to 16 GV-IP cameras. See Section A. •...
  • Page 7 IP cameras including GV-Fisheye cameras • GV-Fisheye Camera 1.3 MP + one of the following options: GV-IP Camera x 15 Third-party Camera (VGA) x 6 Third-party Camera (1 / 1.3 / 2 MP) x 8 Third-party Camera (3 / 4 / 5 MP) x 1 •...
  • Page 8 The number of supported channels is based on the following resolution: Dual-stream Resolution Max. Frame Total Frame Section A Rate Rate Stream 1 Stream 2 704 x 480 / 352 x 240 / 30 / 25 fps 480 / 400 fps 704 x 576 352 x 288 1 MP...

  • Page 9: Gv-Nvr System Lite V2 Dongle

    For third-party cameras, be sure the resolution and codec are configured as specified above to achieve the best performance and maximum frame rate. To find the supported third-party cameras, go to http://www.geovision.com.tw/english/4_21.asp. Frame Rate Total Frame Rate equals to the Max. Frame Rate multiplies the supported channel numbers.
  • Page 10 3. Basic Installation 1. Connect the speakers to the GV-NVR System Lite V2. 2. Connect the microphone to the GV-NVR System Lite V2. 3. Optionally connect the GV-USB Dongle for third-party IP cameras' connection. 4. Using the USB cables, connect a keyboard and a mouse to the GV-NVR System Lite V2. 5.
  • Page 11 For automatic setup, connect GV IP cameras under the same LAN with the GV-NVR System Lite V2. After the power is turned on, the GV-NVR System Lite V2 will search for GV IP cameras with the default IP address, ID and password. The GV IP cameras will be displayed on the main screen without any further configuration.

  • Page 12: Mounting Method

    4. Mounting Method Standing Mount 1. Attach the base stand to the GV-NVR System Lite V2. 2. Tighten the base stand screw. Monitor Mount 1. Using the 4 fix screws, tighten the VESA monitor mount on the back of the computer monitor.
  • Page 13 2. Peel off the liner from the Velcro. 3. Attach the GV-NVR System Lite V2 to the VESA monitor mount and tighten the stand screw. Stand Screw...

  • Page 14: Basic Configurations

    5. Basic Configurations After you have installed the necessary cables and IP cameras, you are ready to access the channels on GV-NVR System Lite V2. For details, see 3.4 Setting Up IP Cameras in the GV-NVR System Lite V2 User's Manual. Assigning the IP Address Automatically 1.
  • Page 15 6. Click Query to detect the IP camera again. The settings accessible on this interface may vary depending on the camera brand. Port: Video streaming port number. Stream Type: The GV-NVR System Lite V2 only supports a single stream when connecting to a third-party IP camera.

  • Page 16: Changing The Ip Address Of Gv Ip Cameras

    Changing the IP Address of GV IP Cameras On the GV-Desktop, click the Programs button and select VS Utility. The GV IP Device Utility appears and automatically detects the GV IP cameras on the LAN. Double-click one camera in the list. Type the user name and password of the GV IP camera.
  • Page 17 1. On the GV-Desktop, click the Programs button, and select Control Panel. 2. Type the ID and password. The default ID and password are “0000”. The Control Panel window appears. Click the View network status and tasks option under the Network and Internet setting.

  • Page 18: Changing Codec And Resolution Of Gv Ip Camera

    4. In the Local Area Connection Properties dialog box, select Internet Protocol (TCP/IP) and click Properties. 5. Select Use the following IP address, type the new IP information, and click OK to finish the setting. Changing Codec and Resolution of GV IP Camera Several resolution, aspect ratio and codec options are available for GV IP cameras, except GV-Fisheye cameras.

  • Page 19: Main Screen

    6. Main Screen 1. Logout / Exit / Minimize 8. Start/stop screen rotation 2. Select screen divisions 9. Access remote applications 3. Select a camera for full screen mode 10. Camera Name 4. Start/stop recording 11. Date / Time / Storage Space 5.

  • Page 20: Formatting The External Hard Drive

    Formatting the External Hard Drive The GV-NVR System Lite V2 records audio and video to the internal hard drive. You can also use an external hard drive to expand recording space. You must format the hard drive before you can use it. To format an external hard drive, use Windows’...

  • Page 21: Renaming The Camera

    Renaming the Camera You can give a new name for each camera. 1. On the main screen, click the Configure button, select System Configure, and click Camera Configure. 2. In the Camera Name field, type a new name for the camera. 3.

  • Page 22: Recording Schedule Setup

    7. Recording Schedule Setup You can program recording to turn on and off at a specific time each day. 1. Click on the main screen, and select Schedule Edit. 2. Select or enter the Start and End time of the schedule. 3.

  • Page 23: Video Playback

    8. Video Playback You can play back video recorded during a particular date and time. 1. Click on the main screen, and select Video/Audio Log. 2. Select the camera you wish to view. 3. Select a date folder from the date tree. 4.

  • Page 24: Playback Controls

    Playback Controls 9 10 11 Description Description Rewind to Beginning Speed up / down Frame-by-Frame Reverse Zoom in / out Rewind A to B Playback Stop Frame-by-Frame / Real Time Playback Play Playback Scroll Frame-by-Frame Forward Audio on / off Forward to End Using the Zoom Zoom in: Click the Zoom-in button, and then click on the area you want to magnify.

  • Page 25: Video Files Backup

    9. Video Files Backup You can back up video files of the desired time to CD / DVD. 1. Insert the CD / DVD media into the drive. 2. Click on the main screen, and select Video/Audio Log. 3. Click on the functional panel.

  • Page 27: Playing Backup Files

    Playing Backup Files Open the backup folder, run EZViewLog500.exe, and then follow the instructions in the Play Back Video section.

  • Page 28: System Restoration

    10. System Restoration You can restore preinstalled files once they are damaged by running the recovery from the hidden partition. To restore the operating system and all preinstalled software, follow the steps below. Note: After recovery, you need to re-install all settings and passwords. But the recovery will not delete your recording files saved in the partition D since it only reformats the partition C.
  • Page 29 4. When the below screen appears, press the Recovery button. 5. If you can’t successfully start the Recovery Wizard, you may see the below screen. Select SATA PM to start the Recovery Wizard. 6. When the restoring process is completed, the screen will automatically show the GV-Desktop.
