3. Make sure that the Power switch on the replacement power canister is turned off, and then plug in the power
cord.

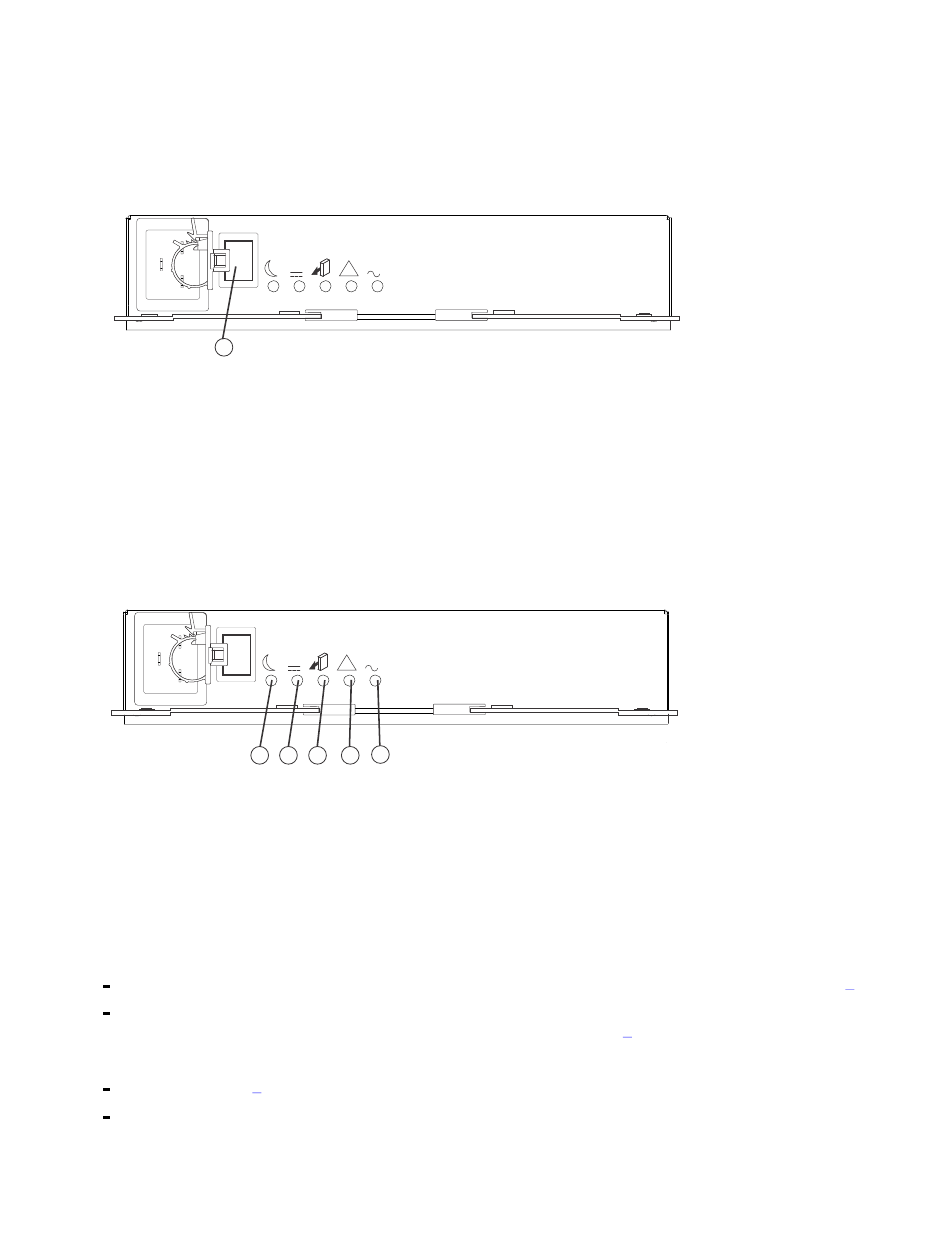

Figure 6. Power Switch on the E5660 Controller-Drive Tray
1
1. Power Switch
4. Attach the plastic strain relief to the power cord, and make sure that it fits snugly up against the power canister.
5. Turn on the Power switch on the replacement power canister.
6. Check the green Input AC Power LED and the amber Power Service Action Required LED on the new power
canister.
Figure 7. LEDs on a Power Canister
1
1. Standby LED (Green)
2. Output DC Power LED (Green)
3. Power Service Action Allowed LED (Blue)
4. Power Service Action Required LED (Amber)
5. Input AC Power LED (Green)
7. Based on the LED status, perform one of these actions:
The Input AC Power LED is on, and the Power Service Action Required LED is off – Go to step 9.
The Input AC Power LED is off, or the Power Service Action Required LED is on – Check that the power
canister is installed correctly. Reinstall the power canister. Go to step 8.
8. Did this action correct the problem?
Yes – Go to step 9.
No – If the problem has not been resolved, contact your Technical Support Representative.
9. Check the status of all of the trays in the storage array.
10. Does any component have a Needs Attention status?
AC
DC
!
AC
DC
!
5
2 3 4
92025-02
92025-01
Replacing a Failed Power Canister in the E5660 Controller-Drive Tray - 5
