CONTROLS & INDICATOR PUMP

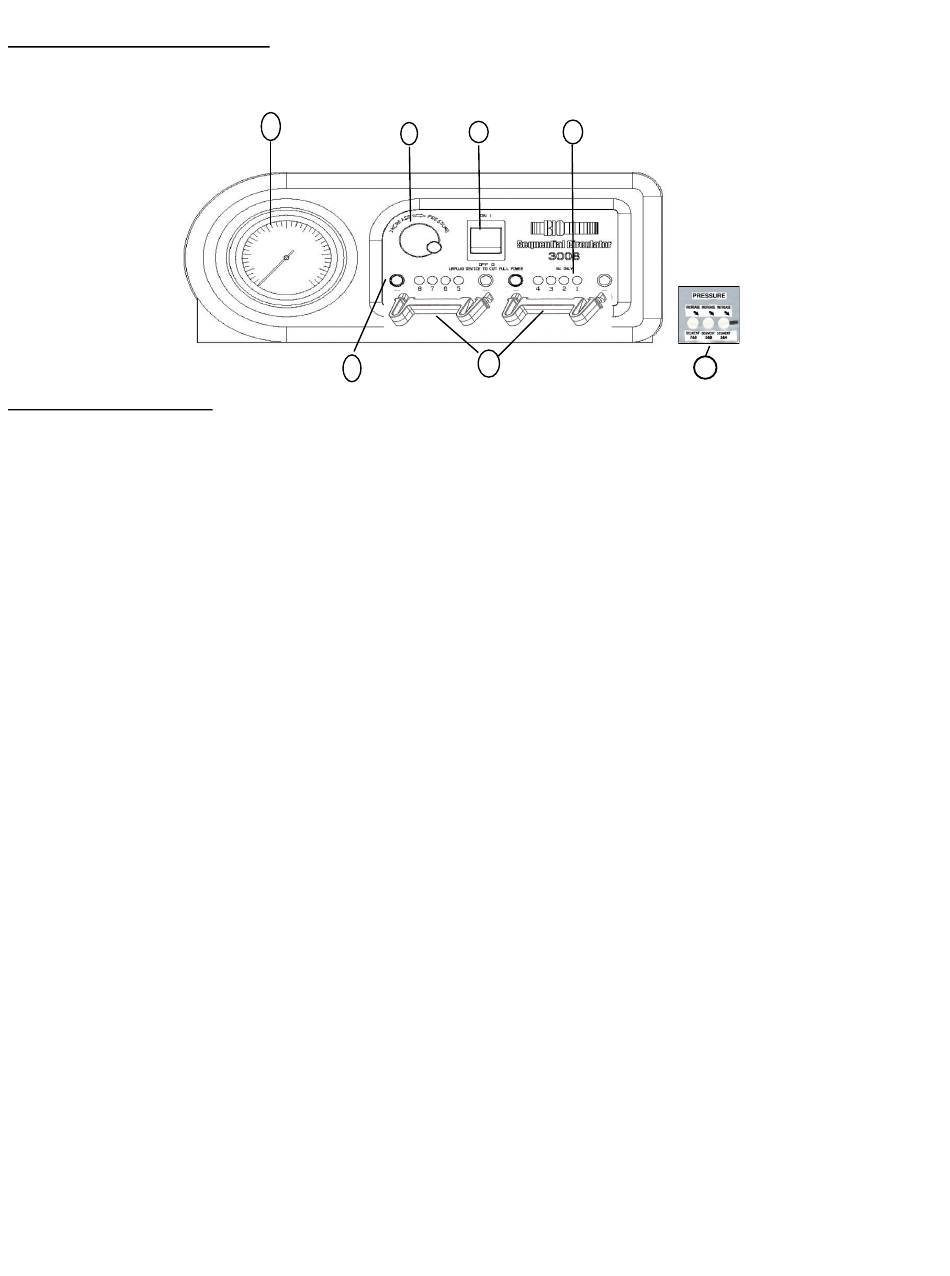

CONTROL DESCRIPTIONS
1) AMBER LIGHTED ON/OFF SWITCH
2) PRESSURE ADJUSTMENT KNOB, LOCKING
To prevent against involuntary changes in the pressure setting due to
inadvertent movement of the Pressure Adjustment Knob, a "locking"
Pressure Adjustment Knob has been implemented on all model pumps to
provide for safer, more effective therapy.
After the pressure has been set, simply by turning the smaller "inner locking knob" clockwise to tighten, the
pressure adjustment knob will now remain secure in place. Turning the "inner knob" counter -clockwise will
enable the "pressure adjustment knob" to again turn free without resistance.
CAUTION: CARE MUST BE TAKEN NOT TO "OVER-TIGHTEN" THE INNER LOCKING KNOB AS ONLY MINIMAL
FORCE IS REQUIRED TO LOCK PRESSURE SETTING IN PLACE.
NOTE: CHANGING THE INNER KNOB TO A 1/2" x 8/32" ALLEN HEAD SET SCREW WILL UPGRADE THIS
FEATURE TO TAMPER PROOF.
3) PRESSURE GAUGE ( mmHg)
4) AIR SUPPLY PORTS (NUMBERED)
PORTS #1-#4
PORTS #5-#8
5) AUXILIARY RECEPTOR PORTS FOR LATCH CONNECTOR BAR.
6) CAPPED AIR SUPPLY PORTS FOR LATCH CONNECTOR BLOCKER BAR
PORTS #1-#4
PORTS #5-#8
7) ADJUSTABLE GRADIENT PRESSURE " OVERRIDE" (Located on Underside of Pump)
