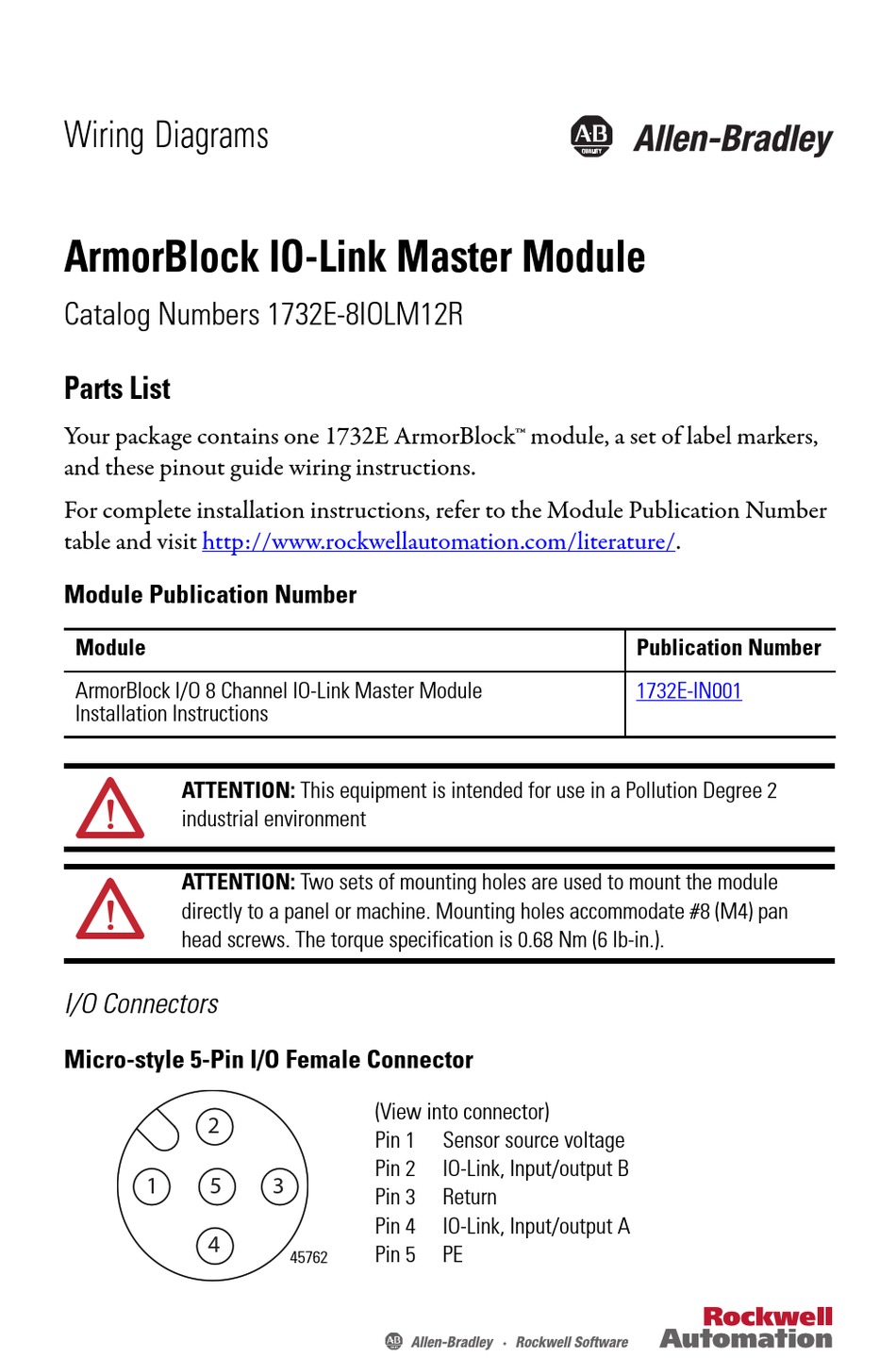

Wiring Diagrams
ArmorBlock IO-Link Master Module
Catalog Numbers 1732E-8IOLM12R
Parts List
Your package contains one 1732E ArmorBlock™ module, a set of label markers,
and these pinout guide wiring instructions.
For complete installation instructions, refer to the Module Publication Number
table and visit http://www.rockwellautomation.com/literature/.
Module Publication Number
Module
ArmorBlock I/O 8 Channel IO-Link Master Module
Installation Instructions
ATTENTION: This equipment is intended for use in a Pollution Degree 2
industrial environment
ATTENTION: Two sets of mounting holes are used to mount the module
directly to a panel or machine. Mounting holes accommodate #8 (M4) pan
head screws. The torque specification is 0.68 Nm (6 lb-in.).
I/O Connectors
Micro-style 5-Pin I/O Female Connector
2
1
5
4
(View into connector)
Pin 1
Pin 2
3
Pin 3
Pin 4
Pin 5
45762
Sensor source voltage
IO-Link, Input/output B
Return
IO-Link, Input/output A
PE
Publication Number
1732E-IN001
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allen-Bradley ArmorBlock 1732E-8IOLM12R
Summary of Contents for Allen-Bradley ArmorBlock 1732E-8IOLM12R
-
Page 1: Wiring Diagrams
Wiring Diagrams ArmorBlock IO-Link Master Module Catalog Numbers 1732E-8IOLM12R Parts List Your package contains one 1732E ArmorBlock™ module, a set of label markers, and these pinout guide wiring instructions. For complete installation instructions, refer to the Module Publication Number table and visit http://www.rockwellautomation.com/literature/. Module Publication Number Module Publication Number... - Page 2 2 ArmorBlock IO-Link Master Module EtherNet/IP Connector D-Code Micro Network Female Connector (View into connector 2) (View into connector 1) Pin 1 M12_Rx+ Pin 1 M12_Tx+ Pin 2 M12_Tx+ Pin 2 M12_Rx+ Pin 3 M12_Rx- Pin 3 M12_Tx- Pin 4 M12_Tx- Pin 4 M12_Rx-...
-
Page 3: Specifications
ArmorBlock IO-Link Master Module 3 Specifications Environmental Specifications Attribute Value Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20…60 °C (-4…140 °F) Temperature, ambient 60 °C (140 °F) rating (UL) Voltage, operating 20…28.8V DC... - Page 4 Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page Allen-Bradley, Rockwell Automation, ArmorBlock and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Publication 1732E-WD008A-EN-P - July 2016 PN-408705 Copyright ©...
