Liquid Controls LectroCount LCR-II E3657 Series Installation Manual page 19

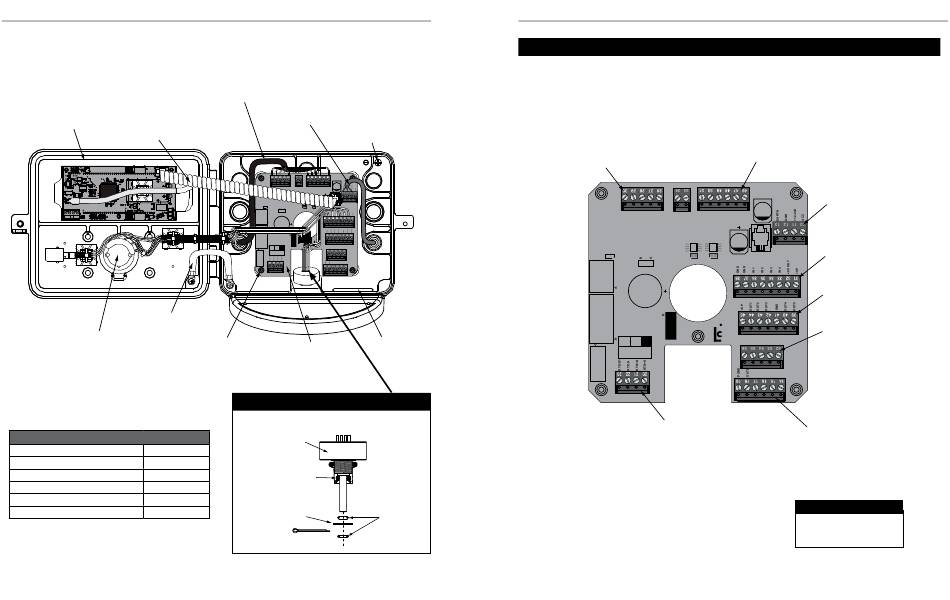

bIll of MaTerIals - InTernal CoMPonenTs
81833
Hollow O-ring Seal
81330
Coiled Cable Handset
81836
Ground Strap w/
Screws and Washers
81832
Rotary Switch & Harness Assy
optional Items
(not shown)
description Part number
Roll Printer Extension Cable 71237
Flash Cable 81885
Lap Pad Adapter 81514
Lap Pad E40301
Lap Pad with Adapter E403012
36
81513040-
UL
81713040-
IECEx / INMETRO / ATEX
Data Cable
81512-
UL
81712-
IECEx / INMETRO / ATEX
Power Cable
08254
Ground Screw #8-32 x ¼"
GND CTS RXD TXD RTS 485-B 485+A GND CTS RXD TXD RTS +VP
MH1 MH4
J1 J2 J3
PRINTER SERIAL 485 TERMINAL
J20
C2
POWER J6
J11 COUNTER J7
P1 J7
J10
J17
TP1
C1
J18
PULSE INPUTS
J5
J12
AUX OUTPUTS
ASSY
REV. MH3
84040 +VF IN5 GND OUT8 +VF
J19
J15
AUX I/O
+VP PGNDOUT7 +VP
MH5
J14
MH2
TEMPERATURE PROBE
SOL
08158
71319
Screw #6-32 x½" (4)
840405 Desiccant
CPU Board Assy
Pulser field Install Kit—82597
Pulser Field Install Kit
82597
81994
PULSER, 100 PPR
09380
Nylon Washer (2)
08189
Flat Washer
08201
O-ring (2)
bIll of MaTerIals - CPu boards
840405 CPu board
81456
81324 J3–8-Pin Connector
J1–5-Pin Connector
GND CTS RXD TXD RTS 485-B 485+A GND CTS RXD TXD RTS +VP
MH1
J1 J2 J3
PRINTER SERIAL 485 TERMINAL
J20
C2
J11
COUNTER
P1
J10
J17
TP1
C1
J18
PULSE INPUTS
J5
AUX OUTPUTS
ASSY
REV. MH3
84040
+VF IN5 GND OUT8
J19
+VP PGNDOUT7
J14
MH2
TEMPERATURE PROBE
81322
J14–4-Pin Connector
MH4
84049
J6–4-Pin Connector
81392
POWER J6
J8–8-Pin Connector
J7 J7
81391
J12–7-Pin Connector
81837
J12
J15–5-Pin Connector
+VF
J15
AUX I/O
+VP
MH5
SOL
81321
J13–6-Pin Connector
Do Not Try To Remove J2
The J2 terminal block is
permanantly attached to the
CPU board.
37
