Liquid Controls LectroCount LCR-II E3657 Series Installation Manual page 17

PoWer InsTallaTIon
Connect the Power
All LCR-II shipments typically include a 40' gray power cable (100', and 300' are also available) and a 5 A fuse.
Page 17 describes describe the best practices for routing the gray power cable to the truck cab's accessory panel.
40' Gray PoWer Cable
The gray power cable (PN 84046) is prewired to the J6 terminal on the CPU board at the factory. It includes two 16
AWG wires and a ground drain wire. The 5 A fuse should be spliced into the red 16 AWG wire as close to the power
source as possible.
ePson PrInTer PoWer
Power must be supplied to the Epson printer as well. A 15' cable with a 12/24 VDC converter (825001) for printer
power supply is also available. The red wire of this cable must be spliced into the red wire of the gray power cable on
the LCR-II side of the 5 A fuse.
To connect power to the lCr-II and the epson printer:
1. Route the gray power cable to the accessory panel. See
page 17.
2. Splice the red wire from the printer power cable into the
red wire of the gray power cable.
3. Splice the 5 A fuse into the red wire. Make the splice
close to the direct power terminal connection in the
accessory panel and on the power side of the splice
made with the printer power cable.
Power Check
After the LCR-II has been installed, check to make sure that it powers up correctly. The LCR-II display and the printer
power light should come on when the truck's ignition is turned to the ON or to the ACC position. Make sure the printer
power switch is on. If the LCR-II or the printer does not power up, check the wiring and the connections on the LCR-II
CPU board against the manual.
32
4. Connect the red wire to the direct power supply terminal
in the accessory panel.
5. Connect the black wire of the gray power cable to a
reliable DC ground.
6. Connect the black wire of the printer power to a reliable
DC ground.
7. Tape the green drain wire of the gray power cable back
against the power cable.

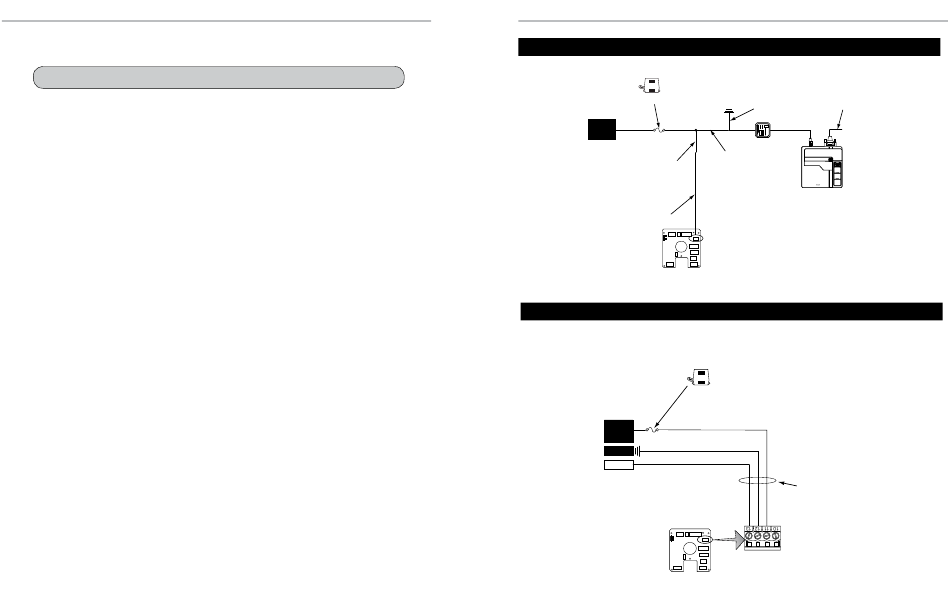

epson Printer Power Connections
In-Line Fuse
Chassis or Reliable Ground
Power
Supply
Accessory Panel
Red
Gray Power Cable
(see below)
lectroCount lCr-II Power Connections
In-Line Fuse
Direct
+12-24/Red (11)
Accessory Panel
Power
Supply
GND/Black (12)
DC GROUND
EARTH/Blue (13)
Drain Wire
PoWer InsTallaTIon
Black Data Cable
DC Ground
Black
Red
Gray Power Cable 40'
(81512-UL)
(81712-IECEx / INMETRO / ATEX)
POWER J6
33
