Summary of Contents for Bartscher Slim-Line 700280G

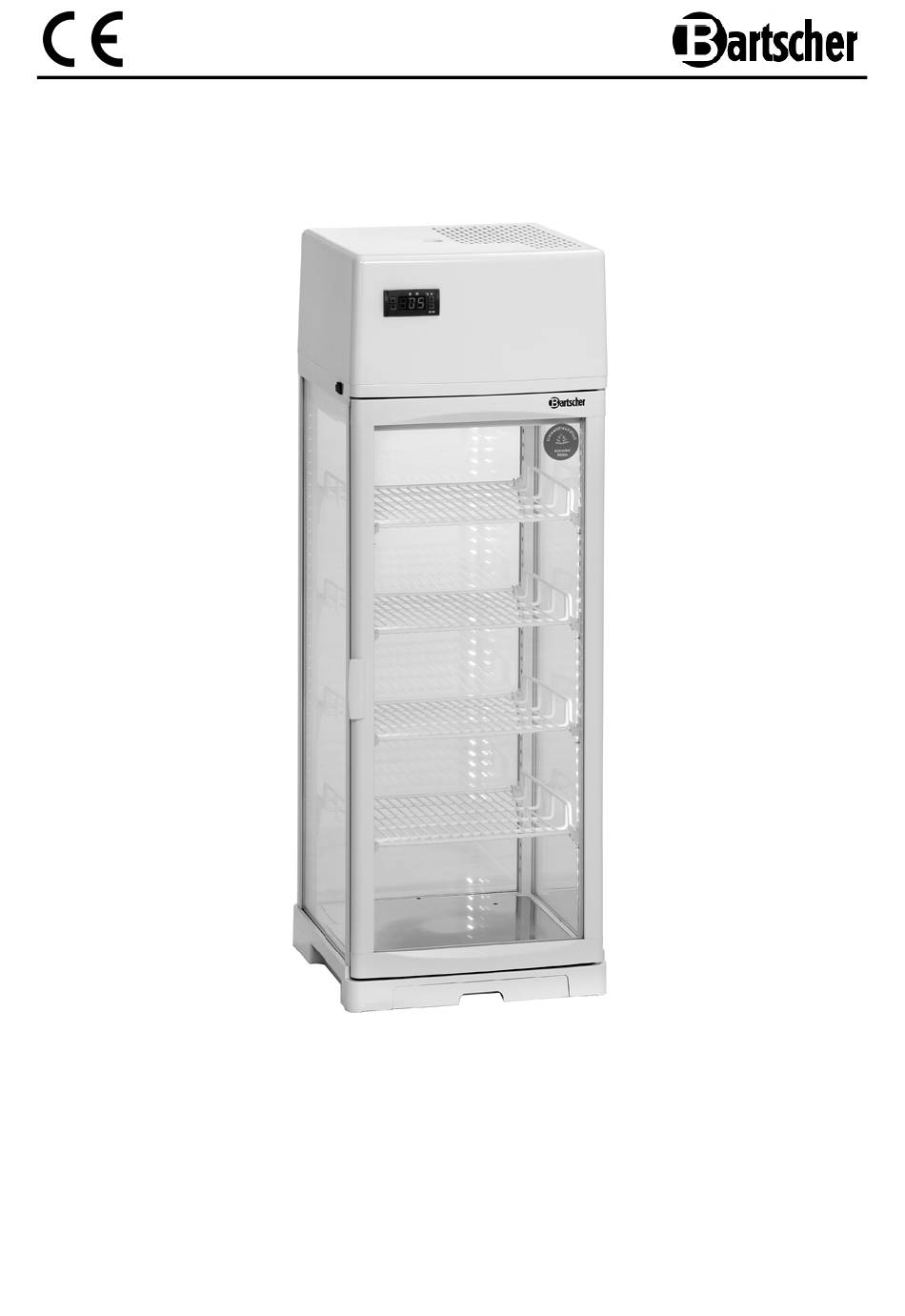

- Page 1 Slim-Line 80L 700280G Original-Gebrauchsanleitung V1/0116...
-
Page 2: Table Of Contents
5. Installation and operation ..................29 5.1 Installation ......................29 5.2 Operation ......................30 6. Cleaning ........................34 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • This device may only be operated in technically proper and safe condition. • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 5 • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur. • Never immerse the appliance, the power cord and the power plug in water or other liquids;...
-
Page 6: Key To Symbols
1.2 Key to symbols In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage. WARNING! This symbol highlights hazards which could lead to injury. -
Page 7: Proper Use
1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. All technical activities like installation and maintenance must be performed by the qualified service personnel only. The mini refrigerated display is intended only for cooling food and beverages. Do not use the mini refrigerated display for: - storing flammable or explosive materials such as ether, petrol or glue;... -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts Ventilation holes Casing LED lighting strips (2) Rails for grids Grids (4) Lower baseplate Removable drip pan Glass door ON/OFF switch Digital temperature regulator - 27 -... -
Page 11: Technical Specification
4.2 Technical specification Name Mini cooler Slim-Line 80L 700280G Code-No.: ON/OFF switch LED lighting Design: Ventilated cooling Automatic defrost Capacity: 80 litres Coolant: R600a 2 °C – 12 °C Temperature range: Power: 0.18 kW / 230 V~ 50 Hz Dimensions: W 375 x D 385 x H 1 050 mm Weight: 36.2 kg... -
Page 12: Installation And Operation
5. Installation and operation 5.1 Installation Positioning • Before the operation unpack the device and remove all package material and protective foil from the device and equipment. CAUTION! Never remove the rating plate and any warning signs from the device. •... -
Page 13: Operation
Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! Connect the device only to properly installed single socket with protective terminal. - Page 14 Control elements, button functions, indicators Digital temperature regulator ① Decrease temperature button ③ ④ ② ② Increase temperature button ③ Cooling indicator symbol ④ ⑤ Defrost indicator symbol ⑤ ⑥ LED lighting button ⑥ „SET“ function key ⑦ LCD cooling indicator ①...
- Page 15 Setting the desired temperature (desired value) • The working temperature in the device ranges from 2 ° C to 12 ° C. • To set or change the desired value: → briefly press the button the value of temperature on the digital display will start flashing;...
- Page 16 Tips for user • To reduce energy loss during the cooling process, open the door for as short a time as possible and as rarely as possible. Do not open the door too often. • Do not cover air inlet and outlet of the mini refrigerated display. The air must circulate freely to ensure proper cooling.
-
Page 17: Cleaning
6. Cleaning CAUTION! Before cleaning, switch the device off via ON/OFF switch and disconnect it from the power supply (pull the plug out the socket!). The device is not designed to be rinsed with running water. Do not use a pressure washer to clean the device! Be careful and do not let the water into the device. -
Page 18: Possible Malfunctions
7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Malfunction Cause Solution •... -
Page 19: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
