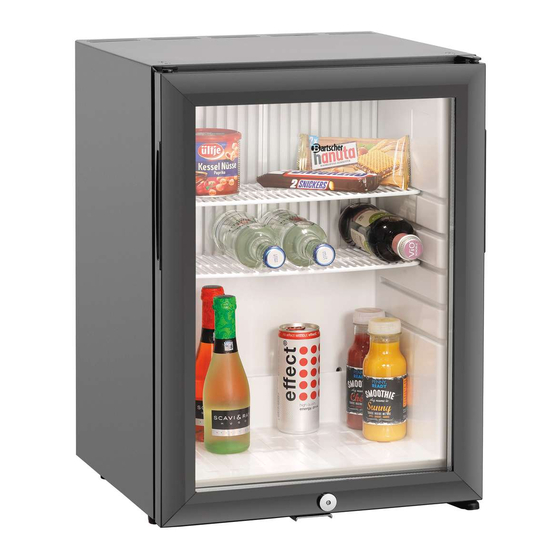

- Page 1 34L-GL 700119...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-06-08...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling of suitable beverages, snacks and fruit. The appliance is intended for operation in maximum ambient temperature of 30 °C and relative humidity of 65%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Refrigerator 34L-GL 700119 Art. No.: Material: Steel sheet, painted Inner material: Plastic, white Volume, in l: Temperature range, min.–max., in °C: 7 - 12 Ambient temperature, max., in °C: Coolant, amount in kg:... -
Page 12: Functions Of The Appliance
• Removable door seal More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2019, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. Functions of the Appliance The appliance is designed for cooling and storage of suitable beverages, snacks or fruit. -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 1. Temperature controller 2. LED lighting 3. Ventilation openings 4. Shelf guides 5. Drain of condensed water 6. Lock 7. Lower baseplate 8. Glass door with seal 9. Shelves (2x) 10. Housing 700119 11 / 24... -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. - Page 15 Installation and operation Installation of Door Fitting Set The appliance is provided with the furniture fitting set. The fitting set is part of the delivery. Proceed observing the figures below. 700119 13 / 24...
- Page 16 Installation and operation Changing the Hinge Side WARNING! Before changing the door's hinge side, disconnect the appliance and pull the plug out of the socket. The hinges may be changed from right to left, as needed. Observe the following indications. 1.
- Page 17 Installation and operation 3. Lay down the refrigerator. 4. Remove the right-hand side bottom hinge. 5. Fix the removed hinge at the left-hand side. 700119 15 / 24...
- Page 18 Installation and operation 6. Fix the hinge with screws. 7. Remove the left-hand side top screws and their covers. 8. Place the door on the hinge. 16 / 24 700119...
- Page 19 Installation and operation 9. Fix the left hinge on the door. 10. Fit the hinge and fix it with screws. To end with, fit the cover. 700119 17 / 24...
-
Page 20: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... -
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Operation of the Appliance 1. Plug the appliance into a suitable single socket. 2. Set the desired temperature using the temperature control knob. It is located in internal compartment ceiling. The temperature range may be selected steplessly, up to the MAX setting. The MAX setting is the highest temperature setting. -
Page 22: Maintenance
Possible Malfunctions 8. Clean the door and the door seal of the appliance with a soft, damp cloth and a mild cleaning agent. 9. If needed, remove the door seal. 10. Finally, dry thoroughly all washed surfaces. 11. Place the shelves in the appliance again. 12. - Page 23 Possible Malfunctions Error Possible Cause Solution No functions Damaged mains power plug. Contact the service available company. Temperature controller not set Set the temperature. (it is in OFF position) The appliance Temperature is not set Set the temperature. does not reach correctly.
-
Page 24: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
