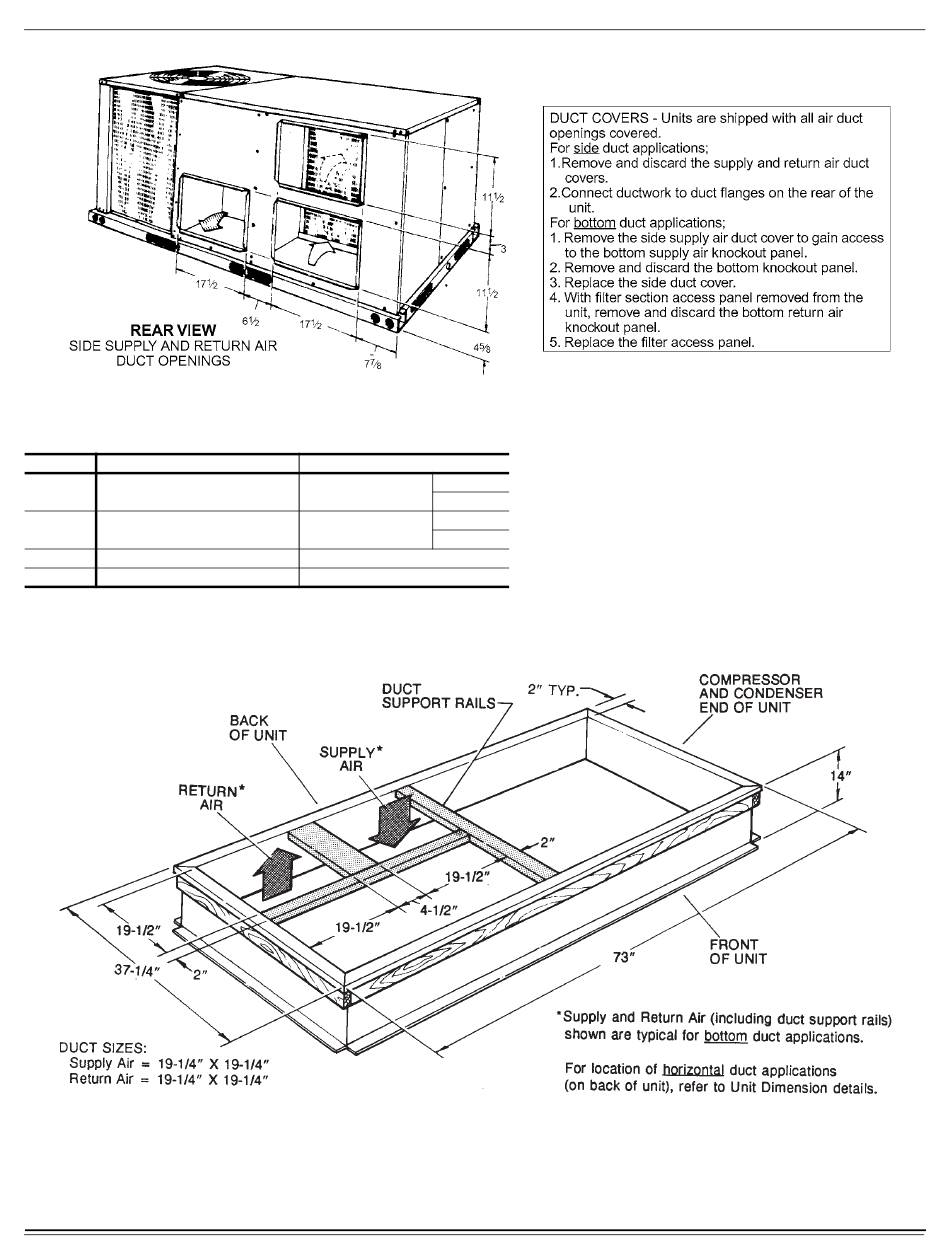

Figure 9: ZDT03 through TA6 Unit Side Duct Openings
Table 5: ZDT03 through TA6 Utilities Entry
Hole
Opening Size (Dia.)
A
7/8" KO
B
2" KO
C
1-5/8" KO
D
1-1/2" KO
1. Opening in the bottom to the unit can be located by the slice in the
insulation.
2. Do not remove the 2" knockout ring.
Figure 10: ZDT03 through TA6 Roof Curb
Johnson Controls Ducted Systems
Used For
1
Control Wiring
1
Power Wiring
Gas Piping (Front)
Gas Piping (Bottom)
Side
2
Bottom
Side
Bottom
5742640-TIM-A-0419
11
