Computer Connection - StarTech.com STARVIEW SV831SUN User Manual

5

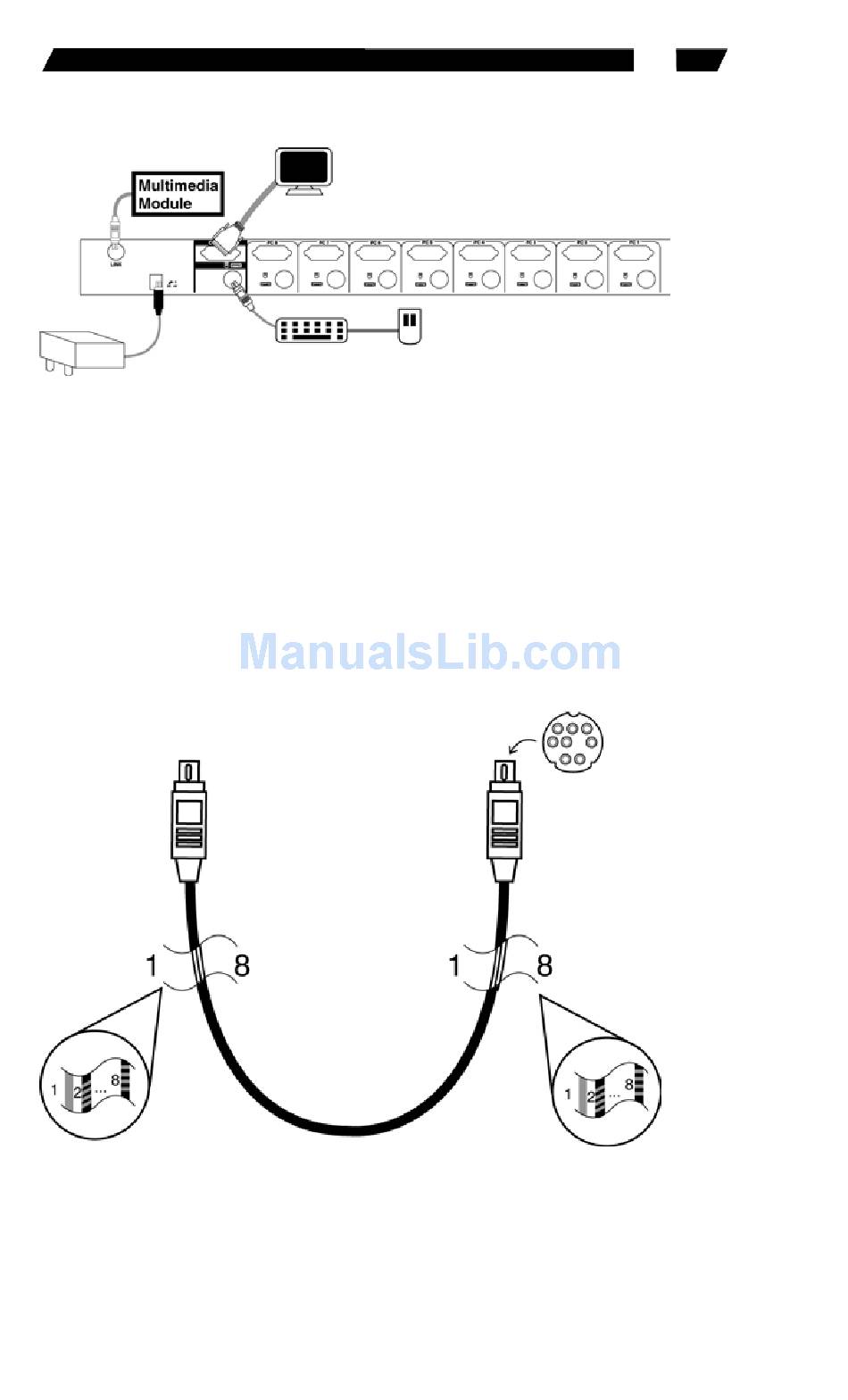

Figure 4: Master console connection
for monitor with HBD15 connector

Computer Connection

Each SUN computer is connected to the StarView with one straight
through (1-1, 2-2, 3-3... 8-8) mini DIN8 cable (as shown in figure 5)
and one male-to-male HDB15 VGA cable.
Figure 5: Straight through 1-to-1 mini DIN8 cable
