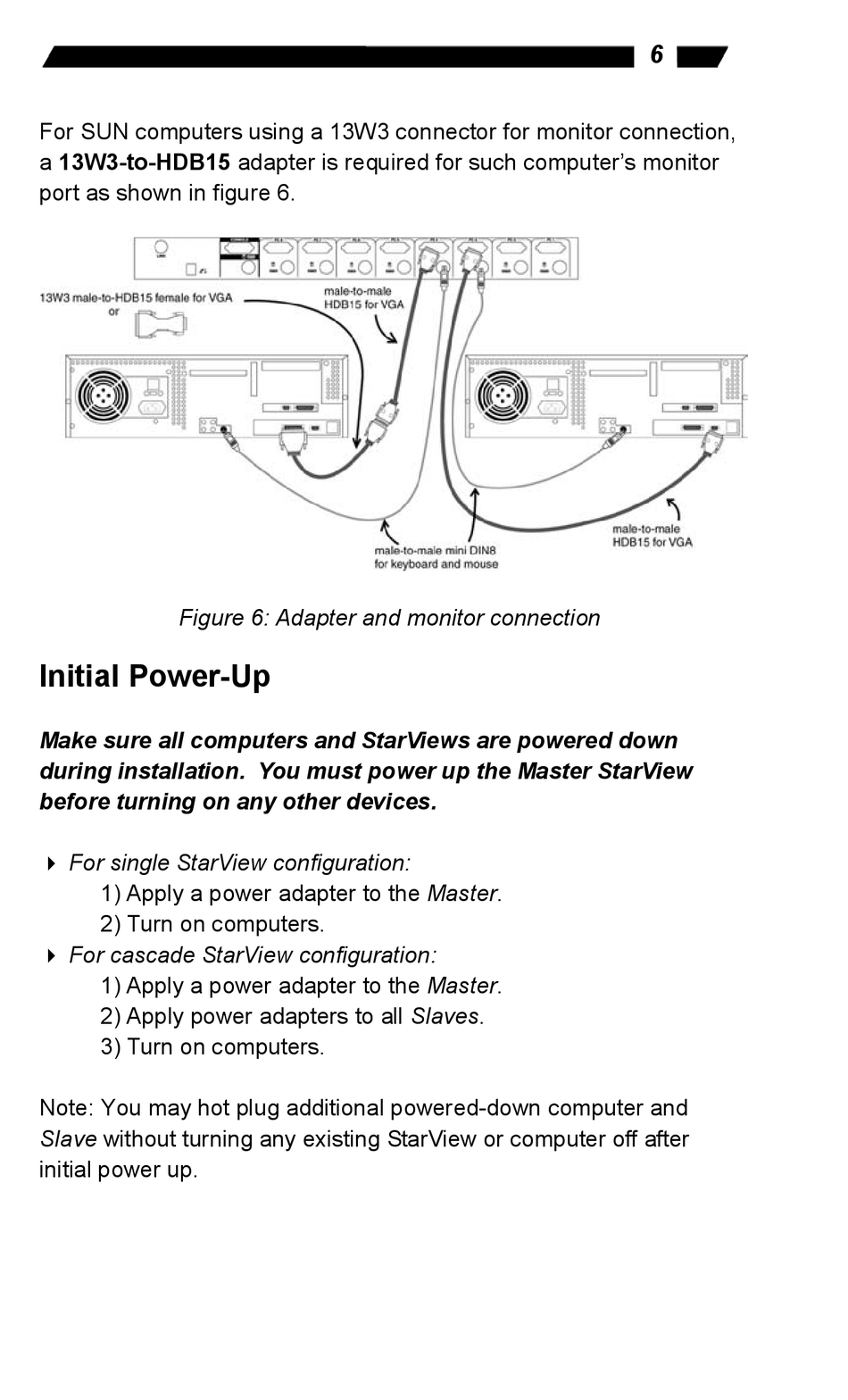

Initial Power Up - StarTech.com STARVIEW SV831SUN User Manual

For SUN computers using a 13W3 connector for monitor connection,
a 13W3-to-HDB15 adapter is required for such computer's monitor
port as shown in figure 6.
Figure 6: Adapter and monitor connection
Initial Power-Up
Make sure all computers and StarViews are powered down
during installation. You must power up the Master StarView
before turning on any other devices.
4 For single StarView configuration:
1) Apply a power adapter to the Master.
2) Turn on computers.
4 For cascade StarView configuration:
1) Apply a power adapter to the Master.
2) Apply power adapters to all Slaves.
3) Turn on computers.
Note: You may hot plug additional powered-down computer and
Slave without turning any existing StarView or computer off after

initial power up.

6
