- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/28/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Package Contents ............................. 1 Installation ....................2 Console Connection ..........................2 Connecting Computers to the KVM Switch ..................3 Cascaded Configurations ........................4 Operation ....................5 Push Button controls ..........................5 K/M Reset ..............................5 Auto Scan ..............................5 OSD (On Screen Display) Operation ............6 Auto Scan .............................. -
Page 4: Introduction

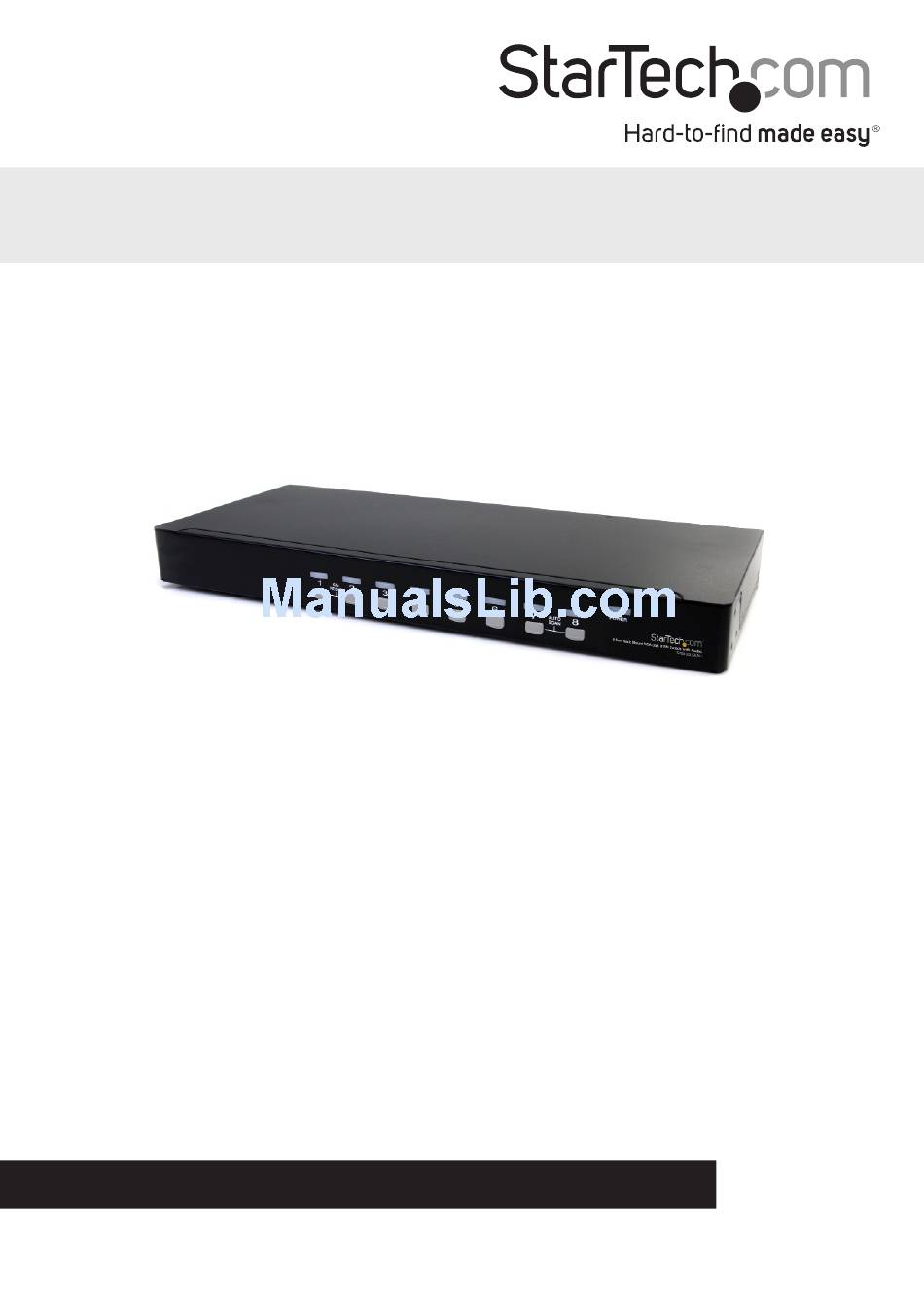

Introduction The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports. -
Page 5: Installation
Console Connection The SV831DUSBAU is designed for use with USB console connections only. A USB compatible keyboard and mouse and VGA monitor must be used for the local console. A USB keyboard/mouse combo device that uses a single USB connector may also be used, but must be connected to the USB Keyboard port only. -
Page 6: Connecting Computers To The Kvm Switch
Connecting Computers to the KVM Switch To connect a computer to the KVM switch, use the appropriate StarTech.com KVM cable to connect from one of the PC ports located on the rear panel of the KVM switch to the keyboard/mouse and VGA video ports on the computer. -
Page 7: Cascaded Configurations
The ports labelled PC 1 - PC 8 can be connected to either a computer or a Slave KVM switch’s CONSOLE port, as shown below. Use only StarTech.com KVM cables to connect the Master KVM switch’s PC ports and Slave KVM switch’s CONSOLE port, as... -
Page 8: Operation
NOTE: A device (computer or KVM switch) on any PC port can be changed at any time after initial power up. If you change any one of the PC1 thru PC8 connections from a computer system to a Slave KVM switch or vice-versa, or simply change/replace the device, the On-Screen Display (OSD) will update the next time the OSD menu is activated. -
Page 9: Osd (On Screen Display) Operation
OSD (On Screen Display) Operation Currently Port Channel selected channel Address address To a 16-port Slave To an 8-port Highlighted by Slave arrow keys Eye mark enabled Security enabled port Master port name (group name) White indicates power off User-input port names Green indicates power on... - Page 10 (i.e. 8 for SV831DUSBAU). The <ENTER> key brings you one level down and another screen pops up listing the names of the computers on that slave. The name of the slave will be shown at the upper right corner of the OSD menu.
- Page 11 Function key <F3>: To lock a device (a computer or a slave) from unauthorized access, use Security. Security is effective for only one device (a computer or a slave). To lock a device Use the <UP> and <DOWN> arrow keys to highlight it, then press <F3>. Now, enter up to 4 characters (‘A’~’Z’...
- Page 12 NOTE: It is unnecessary to switch the Sun mark ON or OFF if an authentic Sun keyboard is being used on the console. In other words, you must ensure that the Sun- marked port has not been selected if you are already using a Sun keyboard. With different types of keyboard and computer, the Sun Mark must be set up in compliance with the following instruction: Keyboard Type...
-
Page 13: Auto Scan
Auto Scan In this mode, the KVM Switch automatically switches from one power-on computer to the next, sequentially, in a fixed interval. During AutoScan mode, the OSD displays the name of the selected computer. When Auto Scan detects any keyboard or mouse activity, it suspends the scanning until activity stops;... -
Page 14: Hot-Key Commands
Hot-key commands Hot-key commands are short keyboard sequences used to select a computer, to activate computer scan, etc. SV831DUSBAU interprets keystrokes followed by one or two more keystrokes; a built-in buzzer generates a high-pitch beep for a correct hotkey command, otherwise, one low-pitch beep for an error and the bad key sequence will not be forwarded to the selected computer. - Page 15 1~8: designate the number keys ‘1’~‘8’ in the upper row of the keyboard Do not use the keypad at the right of the keyboard. To select a computer by hotkey command, you must know its port number, which is determined by the KVM Switch connection. For a computer connected to a slave, two characters represent its port - the first character is the port number of the master unit (1~8) and the second one is the port number of the slave (1~8).
-
Page 16: Sun/Mac Keyboard Mapping
Sun/Mac Keyboard Mapping The KVM Switch emulates a Sun Keyboard when a computer is marked with a Sun, in the OSD menu by Function Key <F5>. A Sun keyboard has more keys than a standard PC keyboard. These extra keys are simulated by tapping the right <CTRL> button (normally located on the right lower part of the keyboard) followed by one of the function keys on the general keyboard (i.e. - Page 17 Map to SUN Map to MAC From Standard Keyboard Keyboard Keyboard Press Right CTRL and release; 1 Press Right CTRL and release; 2 Press Right CTRL and release; 3 Press Right CTRL and release; 4 Power Press Right CTRL and release; F1 Stop Press Right CTRL and release;...
-
Page 18: Specifications
Specifications Maximum # of connected computers (Cascaded) Maximum Video Resolution 1920 x 1440 Storage Temperature -20° ~ 60° C Storage Humidity 0-80% RH Operating Temperature 5° ~ 40° C Operating System Support OS Independent (transparent) Number of Computer Ports KVM Console Interface 1 x DE-15 VGA female Console Connectors 2 x USB type A female... -
Page 19: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
