StarTech.com SV841HDIE Manual

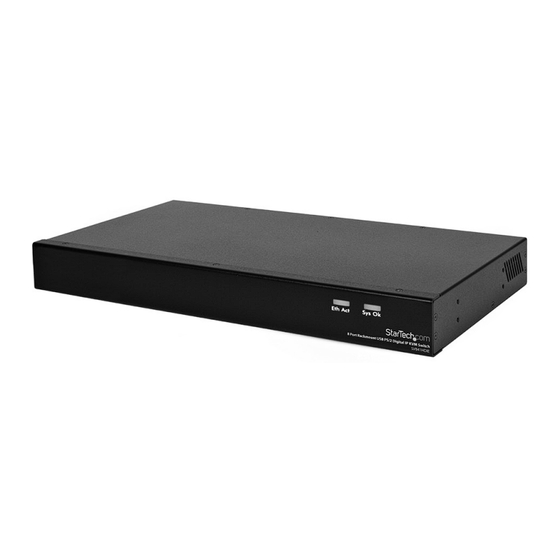

4/ 8/ 16 port rackmount usb ps/2 digital ip kvm switch
Hide thumbs Also See for SV841HDIE:
Table of Contents

Advertisement

Quick Links

Download this manual
4/ 8/ 16 Port Rackmount USB PS/2
Digital IP KVM Switch
SV441HDIE
SV841HDIE
SV1641HDIE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/25/2017
*SV841HDIE Shown
*actual product may vary from photos
