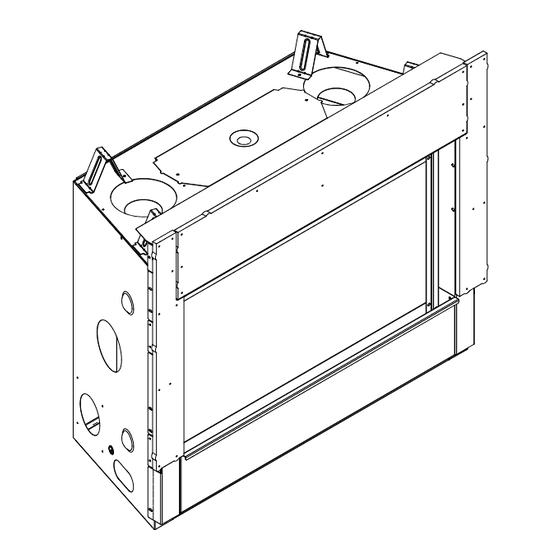

Majestic JADE32IN-B Installation Manual

Hide thumbs Also See for JADE32IN-B:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
NOTICE: DO NOT discard this manual!
Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19
Installation Manual
Installation and Appliance Setup
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
Decorative barrier front must be ordered separately at
time of appliance purchase. See Section 3.A.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JADE32IN-B and is the answer not in the manual?

Questions and answers

Related Manuals for Majestic JADE32IN-B

Summary of Contents for Majestic JADE32IN-B

  • Page 1 Decorative barrier front must be ordered separately at time of appliance purchase. See Section 3.A. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 2: Table Of Contents

    C. Securing and Leveling the Appliance ....41 D. Non-Combustible Material Installation ....42  = Contains updated information. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 3: Installation Standard Work Checklist

    _____________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments Communicated to party responsible ____________________ by ______________________on ___________ (Builder / Gen. Contractor/) (Installer) (Date)  = Contains updated information. 2619-988 8/19 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 4: Product Specific And Important Safety Information

    Some local building codes require the use of tempered glass with permanent marking in such locations. Glass meeting this requirement is available from the factory. Please contact your dealer or distributor to order. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 5: Non-Combustible Materials Specification

    State of California to cause cancer and reproductive harm. For more information go to: www. P65Warnings.ca.gov. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 6: Requirements For The Commonwealth Of Massachusetts

    VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 7: Getting Started

    Use appropriate finishing materials that are able to withstand these conditions. For additional finishing guidelines, see Section 10. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 8: Tools And Supplies Needed

    • Improper positioning of the logs/media (as applicable) or the glass assembly. • Installation and/or use of any component part not approved by Hearth & Home Technologies. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 9: Framing And Clearances

    Millimeters 16-3/4 6-5/8 27-1/4 34-3/8 15-1/4 2-3/16 38-1/16 3-1/2 17-1/4 25-7/8 40-1/2 1029 38-1/2 9-13/16 6-1/8 17-3/4 7-1/2 10-3/8 25-3/4 7-3/4 Figure 3.1 Appliance Dimensions - JADE32IN-B Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 10 1092 32-3/8 39-1/16 2-3/16 15-1/4 33-11/16 17-1/4 3-1/2 25-7/8 46-1/2 1181 43-1/2 1105 9-13/16 6-1/8 9-13/16 7-1/2 10-3/8 37-3/4 7-3/4 Figure 3.2 Appliance Dimensions - JADE42IN-B, JADE42IL-B Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 11 9-13/16 19-7/8 26-7/8 25-1/8 JADE32IN-B CFTF-32 JADE42IN-B 40-3/16 14-1/8 45-1/8 6-7/8 9-13/16 19-7/8 26-7/8 25-3/16 CFTF-42 JADE42IL-B 1021 1146 Figure 3.3 Decorative Barrier Front Dimensions - CFTF Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 12 25-1/8 JADE32IN-B PFF-32 40-3/16 14-1/8 49-7/16 4-5/8 9-3/4 24-7/16 29-1/16 25-3/16 JADE42IN-B PFF-42 JADE42IL-B 1021 1255 Figure 3.4 Decorative Barrier Front Dimensions - PFF (Picture Frame Front) Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 13: Appliance Location And Clearances To Combustibles

    1134 1603 See Section 10.C for Alcove Installation (Mantel and Wall Projection). Inches 50-1/2 71-1/2 19-1/2 17-1/4 JADE42IN-B JADE42IL-B Millimeters 1283 1245 1816 Figure 3.5 Appliance Locations Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 14 8-5/8 36-1/2 17-3/4 56-7/8 1445 8-5/8 32-3/4 17-3/4 56-7/8 1245 1445 * Adjust framing dimensions for interior chase sheathing (such as sheetrock) Figure 3.6 Clearances to Combustibles Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 15 ** Measurement without Trim Kit = 2 in. + Additional Finishing Material Thickness. If discharge opening is greater than 3 inches a mesh screen is required. Figure 3.7 Passive Heat Front Discharge Framing Dimensions With and Without a Trim Kit Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 16 Bottom of Combustible Opening Opening Discharge Opening Appliance Materials to Ceiling JADE32IN-B Inches 12-1/4 8-3/4 JADE42IN-B JADE42IL-B millimeters 2083 Figure 3.8 Passive Heat Side Discharge Framing Dimensions Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 17 Mesh screen recommended for front discharge or open top discharge passive heat installations with discharge opening of less than three inches. Figure 3.9 Passive Heat Minimum Framing Dimensions Open Top Discharge Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 18: Constructing The Appliance Chase

    Minimum height requirements for an exterior chase on a top- vented appliance are shown in Figure 3.10. Reference Fig- ure 4.4 for additional clearances. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 19: Termination Location And Vent Information

    Over 20/12 to 21/12 ..........8.0 * H minimum may vary depending on regional snowfall. Refer to local codes. Figure 4.1 Minimum Height From Roof to Lowest Discharge Figure 4.3 Opening Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 20: Vent Terminal Clearances

    12 in. (305 mm)* two sides beneath the floor.) vinyl or composite overhang 42 in. (1067 mm) 42 in. (1067 mm) Figure 4.4 Minimum Clearances for Termination Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 21: Approved Pipe

    WARNING! Risk of Fire or Asphyxiation. This appli- ance requires a separate vent. DO NOT vent to a pipe serving a separate solid fuel burning appliance. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 22: Use Of Elbows

    Figure 4.6 Vertical and Horizontal Offset for DVP and SLP Elbows SLP48 1219 SLP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108 SLP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216 Figure 4.5 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 23 Clearance to Trapezoid Portion of Cap MEASURE TO SHADED SURFACE (OUTSIDE MOUNTING SURFACE) Figure 4.7 Measure to Outside Mounting Surface Figure 4.8 Measure to Top of Last Section of Pipe Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 24: Use Of Flex Vent (Slp-Flex Series 6-5/8 Inch)

    However, the vent attachment point and the firestop location are considered to be supports. TERMINATION 3 in. CLEARANCE FLEX-VENT 1 in. CLEARANCE Figure 4.10 Flex Vent Pipe - Generic Fireplace Shown Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 25: Vent Diagrams

    • Horizontal termination cap should have a 1/4 inch downward slant to allow any moisture in cap to be released. See Figure 4.11. Figure 4.11 Vent Cap Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 26 (6-5/8 inch) vent except when using glass breakage. the simple up and out installation. See Figure 4.10. Note: Use SLP Series components only. Figure 4.12 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 27 CAUTION: The SLP-HRC-SS termination caps are not approved for use with these models. May lead to elevated glass temperature that may cause tempered glass breakage. INSTALLED HORIZONTALLY Figure 4.13 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 28 CAUTION: The SLP-HRC-SS termination caps are not approved for use with these models. May lead to elevated glass temperature that may cause tempered glass breakage. Figure 4.14 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 29 MAX. = 15 ft. (4.6 m) glass breakage. MAX. = 7 ft (2.1 m) INSTALLED HORIZONTALLY INSTALLED HORIZONTALLY Figure 4.15 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 30 Note: Use SLP Series components only. Note: If installing a vertical vent/termination off the top of the appliance, the optional exhaust restrictor may be needed. Figure 4.16 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 31 3. JADE42IN-B/JADE42IL-B Only: Reinstall shield by securing it with the two wing nuts and two screws pre- viously removed in Step 1. EXHAUST RESTRICTOR INSTALLED SCREWS Figure 4.17 Installing Restrictor Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 32 H when using SLP-FLEX Series (6-5/8 inch) vent except when using the simple up and out installation. See Figure 4.10. Note: Use SLP Series components only. Figure 4.18 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 33 Note: There MUST be a 25% reduction in total H when using SLP-FLEX Series (6-5/8 inch) vent except when using the simple up and out installation. See Figure 4.10. Figure 4.19 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 34 Maximum= 40 ft. (12.2 m) in total H when using SLP-FLEX Series (6-5/8 inch) vent except when using the simple up and out installation. See Figure 4.10. Figure 4.20 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 35 This could result in poor flame appearance, sooting, system to fail. pilot malfunction, or overheating. • Installer MUST install the 3 ft. stainless steel flex on JADE32IN-B. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 36 To minimize cold air APPLIANCE CONNECTOR drafts, seal with non-combustible insulation. DIRECT VENT FIREPLACE HEARTH FLOOR Minimum 10 ft 3.05 m Maximum 40 ft 12.2 m Figure 4.23 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 37: Vent Clearances And Vent Framing

    1 in. (25 mm) above the center of the horizontal vent pipe. Note: Center of the horizontal vent pipe to the vertical measuring surface of a trap cap is 5 inches (127 mm) Figure 5.2 Wall Penetration Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 38: Ceiling Firestop/Floor Penetration Framing

    INSTALL ATTIC INSULATION SHIELDS BEFORE OR AFTER INSTALLATION OF VENT SYSTEM CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 5.4 Installing the Attic Shield Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 39: Appliance Preparation

    KNOCKOUT LOCATIONS TOP HEAT SHIELD IN POSITION Figure 6.2 JADE42IN-B / JADE42IL-B Figure 6.4 JADE32IN-B - Top Heat Shield in Position - Shipping Support and Seal Cap Removed Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 40: Prepare For Heat Management

    -GAS. The dedicated knockouts, as ® shown in Figure 6.5, must be used only as indicated. Passive Heat cannot be used with the Smart-Wall TV Kit or optional fan. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 41: Securing And Leveling The Appliance

    Do NOT remove. See Figure 6.6. FACTORY-INSTALLED NON-COMBUSTIBLE BOARD DO NOT REMOVE NAILING TABS BOTH SIDES Figure 6.6 Proper Positioning, Leveling And Securing Of Appliance Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 42: Non-Combustible Material Installation

    Refer to Section SCREWS INTO 10 for more information. THESE PILOT HOLES NOTE: BOTH LEFT & RIGHT SIDES Figure 6.8 Installation of the Side Non-Combustible Components Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 43: Venting

    • Only outer pipes need to be sealed. All unit collar, pipe, slip section, elbow and cap outer flues shall be sealed in this manner, unless otherwise stated. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 44: Assemble Slip Sections

    NOTICE: If slip section is too long, the inner and outer flues of the slip section can be cut to the desired length. Figure 7.6 Securing Horizontal Pipe Sections Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 45: Disassemble Vent Sections

    Figure 7.8. • Pull carefully to separate the pieces of pipe. Figure 7.7 Rotate Seams for Disassembly Figure 7.8 Align and Disassemble Vent Sections Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 46: Vertical Termination Requirements

    Slide the storm collar onto the exposed pipe section and align brackets. Figure 7.11 • Insert a bolt (provided) through the brackets and install nut. Do not completely tighten. Figure 7.10 Insert Bolt into Brackets Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 47: Horizontal Termination Requirements

    Important Notice: Heat shields may not be field constructed. VENT DEPTH FROM BACK OF APPLIANCE TO OUTSIDE SURFACE OF EXTERIOR WALL (SEE CHART BELOW) Figure 7.12 Venting Through the Wall Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 48: Electrical Information

    Figure 8.3 Junction Box Detail - JADE32IN-B box, see Section 9.B. NOTE: Appliance shown without glass installed. BOTTOM PANEL SCREW LOCATIONS Figure 8.1 Remove Lower Access Panel Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 49: Wiring Requirements

    Verify proper operation after servicing. WARNING! Risk of Shock! Replace damaged wire with type 105º C rated wire. Wire must have high temperature insulation. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 50 VALVE (NG) 2326-134 2166-302 JUMPER 2187-198 ORANGE DETAIL A GROUND TO FIREPLACE CHASSIS GREEN WHITE WIRE ASSEMBLY 2118-170 BATTERY PACK Figure 8.5 Intellifire™ Touch Wiring Diagram - Standard Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 51 CONTROL IFT-RC150 WIRELESS 6V DC WALL SWITCH BATTERY PACK 2326-134 LED-LINEAR Components shown in diagram. Figure 8.6 Intellifire™ Touch Wiring Diagram with Remote, Fan and LED Options Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 52 2155-033 PVI-WH20 PVI-WH40 PVI-WH60 ORANGE PVI-WH80 PVI-WH100 GROUND TO FIREPLACE CHASSIS OPTIONAL POWER VENT GREEN PVLP-SLP PVI-SLP-B Figure 8.7 Intellifire™ Touch Wiring Diagram with Power Vent Diagram Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 53 (switch leg) wire, route it through the knockout in the face of the junction box, and connect to the top fan switch Figure 8.8 Junction Box Wired to Wall Switch connector (1/4 inch male) as shown. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 54: Gas Information

    1/2 in. (13 mm) control valve inlet. Figure 9.1 Basepan Removal - JADE42IN-B Shown • If substituting for these components, please consult local codes for compliance. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 55 There is limited access to the pressure taps after finishing material installation. Remove glass assembly and utilize an appropriate sized screwdriver. REMOVE BURNER SCREW Figure 9.2 Burner Removal Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 56: Gas Connection

    Check all fittings and connections with a non-corrosive commercially available leak-check solution. DO NOT use open flame. Fittings and connections could have loos- ened during shipping and handling. Figure 9.4 Incoming Gas Line Location Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 57: Air Shutter Setting

    If flames are dark orange with dark, smoky tips, provide more primary air to the burner by opening the air shutter accordingly. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 58: Finishing

    Figure 10.1 and Figure 10.2. Materials that are reported as passing ASTM E 136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750 ºC. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 59: Non-Combustible Board And Drywall Installation

    PVA expected. If a blemish begins to show over a screw head, primer. sand the surface to remove the blemish and repaint. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 60 Do not drill or install screws which may penetrate the lower cover panel as this will restrict required access to the glass, battery-backup, and control module. See Figure 10.2. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 61: Mantel And Wall Projections

    Dimension Diagram (Figure 3.1, 3.2 and 3.3). Figure 10.4 Minimum Vertical and Maximum Horizontal Figure 10.7 Combustible and Non-Combustible Mantel Leg or Dimensions of Combustibles Wall Projections (Acceptable on both sides of opening) Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 62 3 inches or greater. SIDE DISCHARGE (DISCHARGE SLOTS ON BOTH SIDES OF APPLIANCE) 8-3/4 IN. 12-1/4 IN. Figure 10.8 Finishing Material installed with Passive Heat Optional Heat Management System Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 63: Decorative Barrier Front Dimensions For Finishing

    (TOP EDGE) Finishing materials 1 inch maximum thick. Stop finishing material flush with opening. Figure 10.9 Overlap Fit Decorative Barrier Front (CFTF and PFF Decorative Barrier Fronts) Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 64 Figure 10.11 Maximum Finish Material Thickness - CFTF FRONT ASSEMBLY Decorative Barrier Front TOP VANITY PANEL (NOT SHOWN) Figure 10.13 CFTF Front Installation With Outer Decorative Barrier Front Trim Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 65 0 IN. (CFTF) Figure 10.14 Clearances to Appliance Opening Without Outer Decorative Front Trim (BOTH SIDES) (BOTH SIDES) Figure 10.15 CFTF Front Without Outer Decorative Front Trim Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 66 NOTE: The TV installation requirements are the same regardless of whether the Passive Heat kit is installed with a top discharge, side discharge or open top discharge. Figure 10.16 Good Faith Guidelines for TV Installations Above a Fireplace with Passive Heat Option Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 67: Appliance Setup

    Optional log sets are available for use with the JADE42IN-B, JADE42IL-B and JADE32IN-B models. Install the log set PILOT SHIELD per instructions included with the kit. Figure 11.1 Media Placement Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 68: Intellifire™ Touch Control System Setup

    “pull” the glass frame assembly towards the face of the appliance if bottom clips are properly engaged. If the glass frame assembly does not pull back towards the face of the appliance, repeat steps 1-4. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 69: Install Decorative Barrier Front

    For more information refer to the instructions supplied with your decorative barrier front. LOWER SPRING LATCH Figure 11.3 Fixed Glass Assembly Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 70: Reference Materials

    1-1/2 in. 5-1/2 in. 12 in. 220 mm 38 mm 305 mm 146 mm SLP-WS SLP-FS Wall Shield Firestop Ceiling Firestop Figure 12.1 SLP Series Vent Components Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 71 12-5/8 IN. (321 mm) DVP-HSM-B Extended Heat Shield 12-5/8 IN. 10-5/8 IN. (321 mm) (270 mm) SLP-RDS ROOF DECK INSULATION SHIELD Figure 12.2 SLP Series Vent Components Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 72 1 in. (25 mm) 343 mm 121 mm 7-3/4 to 10-3/8 in. (197 to 264 mm) DVP-FBHT SLK-SNKD Horizontal Snorkel Termination Cap Termination Cap Figure 12.3 SLP Series Vent Components Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 73 Figure 12.4 SLP series Vent Components COAXIAL to COLINEAR VENTING LINK-DV30B 768-380A DV-46DVA-GCL Flex Liner Kit Stainless Steel Flex Pipe Coaxial/Colinear Appliance Connector Figure 12.5 Coaxial to Colinear Vent Components Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 74 16-11/16 IN. (346 mm) 424 mm (424 mm) 12-1/2 IN. (318 mm) SLP-LPC SLP Low Profile Cap (Approved for use with PVI-SLP-B only) Figure 12.6 PVI-SLP-B Vent Components Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
  • Page 75 60 FT PV Wire Harness PVI-WH60 80 FT PV Wire Harness PVI-WH80 100 FT PV Wire Harness PVI-WH100 PVLP-HS PVLP-BEK Heat Shield Brick Kit Figure 12.7 PVLP-SLP Vent Components Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...

  • Page 76: Accessories

    Please contact your Majestic dealer with any questions or concerns. For the location of your nearest Majestic dealer, please visit www.majesticproducts.com. Printed in U.S.A. - Copyright 2019 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Installation Manual • 2619-986 Rev. B • 10/19...
