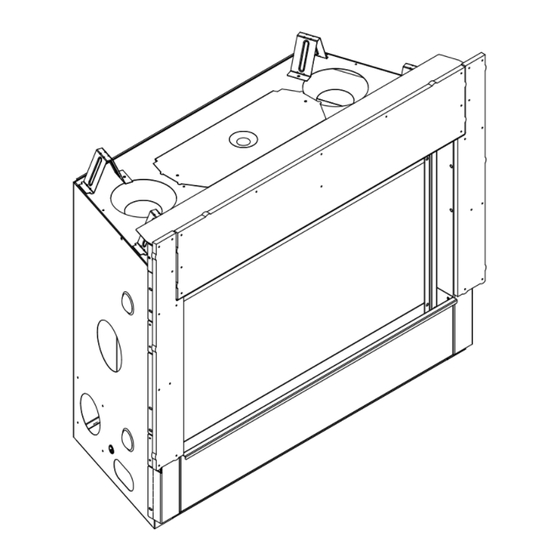

Majestic JADE42IN-B Owner's Manual

Hide thumbs Also See for JADE42IN-B:

Advertisement

Quick Links

Download this manual
Place serial number here
CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24
Owner's Manual
Operation and Maintenance
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Decorative barrier front must be ordered separately at
time of appliance purchase.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JADE42IN-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Majestic JADE42IN-B

Summary of Contents for Majestic JADE42IN-B

  • Page 1 Decorative barrier front must be ordered separately at time of appliance purchase. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 2 OWNER’S MANUAL Serial Number CANADA (Modèle): XXXXXXXXX ALTITUDE:......0-2000 FT....0-4500 FT. MAX. INPUT BTU/h ....xx,xxxx ....xx.xxx Serial: MIN. INPUT BTU/h ....xx.xxx......xx.xxx (Série): ORIFICE SIZE ......#xx DMS ....#xx DMS Xxxx-xxx Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 3 C. Contact Information ......31   = Contains updated information. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 4 Firebox and heat exchanger All purchased replacement parts and optional accessories 1 Year None All purchased replacement parts and optional accessories Page 1 of 2 4021-645N 12/23 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 5 THE EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. 4021-645N 12/23 Page 2 of 2 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 6 Hearth & Home Technologies recommends JADE32IN-B 19,000 13,250 (0-2000 FT) HHT Factory Trained or NFI certified professionals. (NG) JADE32IN-B 1.25 16,500 12,750 (0-2000 FT) (PROPANE) Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 7 • Install a switch lock or a wall/remote control with child protection lockout feature. • Keep remote controls out of reach of children. Figure 3.1 Clear Space Requirement - All Models Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 8 Make sure the appliance is compatible with gas type selected for installation site. • Conversions must be made by a qualified service technician using Hearth & Home Technologies specified and approved parts. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 9 Use appropriate finishing materials that are able to withstand these conditions. For additional finishing guidelines, see Section 10 in the appliance installation manual. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 10 Sugges ons on how to further reduce TV temperatures: Increase “A” dimension. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.4 Good Faith TV Guidelines Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 11 “C” dimension taken from the top of TV to bottom or discharge opening. Figure 3.5 Good Faith Guidelines - Passive Heat Kit Installed Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 12 • Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT operate fireplace with fixed glass assembly removed. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 13 G. Lighting Instructions (IPI) Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 14 Passive Heat can be used in con- junction with HEAT-ZONE-GAS or HEAT-OUT-GAS kit. Passive Heat is not compatible with optional fan kit. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 15 Slide the ON/REMOTE/OFF switch to the ON position. NOTICE: Some functionality will be lost when using battery backup including fan, lights, or any other auxiliary functions that require household 110-120 VAC power. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 16 IFT-RC400 or IFT-RC150. The wired wall - Set the IFT-ECM 3-position selector switch to switch is NOT available if a Power Vent is used. OFF position. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 17 Remove decorative barrier front from appliance. • Locate reset switch inside the appliance. See Figure 3.8. Hold reset switch down for one second and release. A “beep” will signal module is reset. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 18 (consult with your dealer) ance must be replaced prior to operating the appliance. CAUTION! Risk of Burns! The fireplace shall be turned off and cooled before servicing. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 19 5. Inspect and operate all glass latches to ensure they move freely and no obstructions are present. 6. Reinstall decorative barrier front. Figure 4.1 Fixed Glass Assembly Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 20 Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided. • Remove all foreign objects. • Verify unobstructed air circulation. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 21 • Inspect for lifting or other flame problems. • Verify batteries have been removed from battery back-up to prevent premature battery failure or leaking. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 22 Installer’s Manual for this the touch. appliance. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.majesticproducts.com to locate a dealer. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 23 90 seconds. If this failure appliance did not start. Try again period of appliance inactivity. persists, contact dealer for service. by pressing Flame On. Gas control system failure. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 24 If open or shorted, replace valve. Check valve harness wire continuity, if open replace 6-pin harness. Pilot won’t light, there is no noise Spark coil failure. Replace ECM. or spark, 2 Red/2 Green Lockout. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 25 Check Damaged pilot assembly. resistance between tip of sense rod and IFT-ECM connector, should be less than 1 ohm. Replace pilot assembly if damage is detected. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 26 • Install a switch lock or a wall/remote control with child protection lockout feature. • Keep remote controls out of reach of children. Contact your dealer if you have questions. Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 27 Lower Panel Post #LC5512333 2616-104 Valve Assembly Refer to Valve Page Junction box SRV4021-013 Heat Shield, Components 2493-129 Additional service part numbers appear on following page. 1/24 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 28 Valve Assembly Refer to Valve Page Junction box SRV4021-013 Heat Shield, Junction Box 2491-129 Heat Shield, Components 2493-129 Additional service part numbers appear on following page. 1/24 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 29 Battery Holder 4AA, IFT SRV2326-134 9.17 Harness, IFT 6 Pin Wiring SRV2326-132 Orifice NG (#45C) SRV582-845 JADE32IN-B Orifice Propane (1.25C) 582-8125 Orifice NG (#42C) 582-842 JADE42IN-B Orifice Propane (.057C) 582-057 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 30 JADE32IN-B Conversion Kit NG NGK-42LINEAR JADE42IN-B LPK-32LINEAR JADE32IN-B Conversion Kit Propane LPK-42LINEAR JADE42IN-B Pilot Orifice NG SRV593-528 Pilot Orifice Propane SRV593-527 Regulator NG NGK-DXV-50 Regulator Propane SRVLPK-DXV-50 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
  • Page 31 This product may be covered by one or more of the following patents: (United States) 7077122, 7074035, 7234932,  7322819, 7422011, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945F Printed in U.S.A. - Copyright 2024 Majestic • JADE32IN-B, JADE42IN-B, JADE42IL-B Owner Manual • 2619-987 Rev. o • 1/24...
