Model # 238U-R6
11/7/2013
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the ultra site 238U-R6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Playcore ultra site 238U-R6

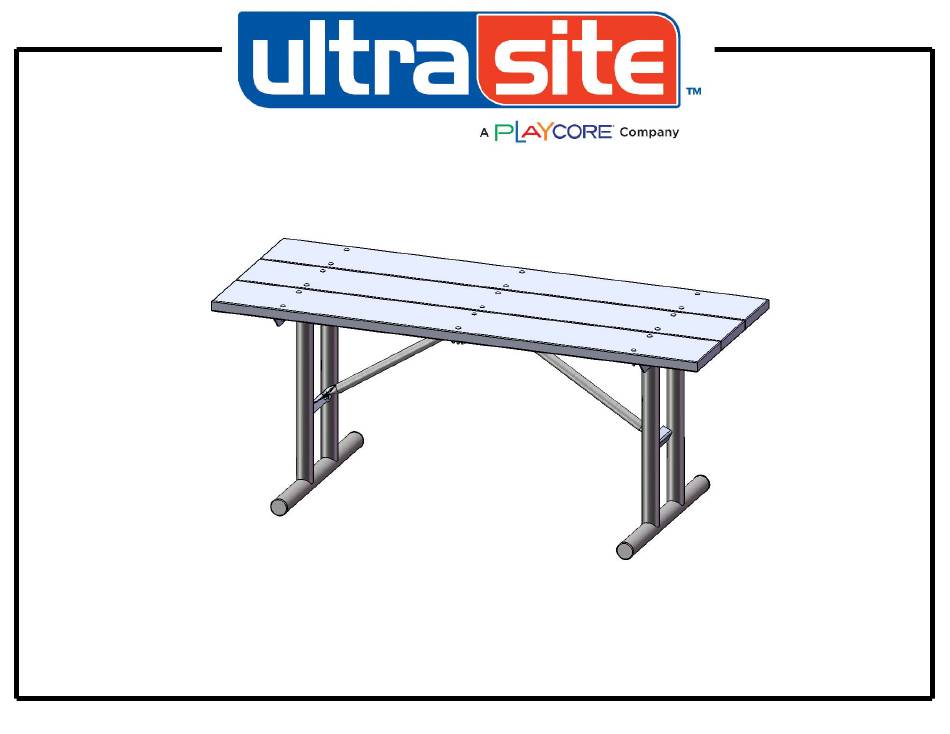

  • Page 1 Model # 238U-R6 11/7/2013 Page 1 of 10...
  • Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
  • Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
  • Page 4 HARDWARE 3/8" x 1-1/4" Carriage Bolt 3/8" x 1-3/4" Carriage Bolt 5/16" x 2-1/4" Carriage Bolt 3/8" Washer 5/16" Washer 5/16" Hex Nut 3/8" Hex Nut 800-45-ULTRA www.ultra-site.com 11/7/2013 Page 4 of 10...
  • Page 5: Tools Required

    TOOLS REQUIRED 1/2" & 9/16" 1/2" & 9/16" Level Wrench Socket Wrench Tape Measure 800-45-ULTRA www.ultra-site.com 11/7/2013 Page 5 of 10...
  • Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 238U-R6 6’ PORTABLE UTILITY TABLE WALK-THROUGH DESIGN Top: Minimum of 96% commingled post-consumer or post-industrial recycled plastic. With a maximum of 4% due to various additives including color and UV stabilization to obtain desirable properties. Frame: 2-3/8” O.D. x 12 gauge pre-galvanized structural steel tubing. One 1 1/2" x 3/4" x 1/8" center channel shall be mechanically attached to the bottom side of tabletop to prevent warping of wood and to attach cross braces, thus providing over all strength and rigidity.
  • Page 7 COMPONENTS Stiffener strips are inserted into the Recycled Planks during production. ITEM NO. PartNo DESCRIPTION BRN72-2x10-T, 2 x 10 Brown Recycled Table Plank (6'), 2 x CDR72-2x10-T, 10 Ceder Recycled Table Plank (6'), 2 x 10 GRN 72-2x10-T, or Green Recycled Table Plank (6'), or 2 x 10 GRY72-2x10-T Gray Recycled Table Plank (6') V238U...
  • Page 8 STEP 1 Attach the 238U Legs and Center C Channel to the 6' Recycled Table Plank as shown using specified hardware. Note that the 3/8" x 1-3/4" Carriage Bolt is sandwiched between the C Channel and the middle Table Plank. 800-45-ULTRA www.ultra-site.com 11/7/2013...
  • Page 9 STEP 2 Attach the 6' Braces to the C Channel and 238U Legs as shown using specified hardware. 800-45-ULTRA www.ultra-site.com 11/7/2013 Page 9 of 10...
  • Page 10: Overall Dimensions

    OVERALL DIMENSIONS 72" 28" 30" 800-45-ULTRA www.ultra-site.com 11/7/2013 Page 10 of 10...

This manual is also suitable for:

Ultra site 238u-r8Ultra site 940p-r6
