Playcore ultra site 411S-B2 Installation Instructions Manual

Denali inground bench without back
Hide thumbs

Advertisement

Quick Links

Download this manual
Model # 411S-B2
8/31/2020
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the ultra site 411S-B2 and is the answer not in the manual?

Questions and answers

Related Manuals for Playcore ultra site 411S-B2

Summary of Contents for Playcore ultra site 411S-B2

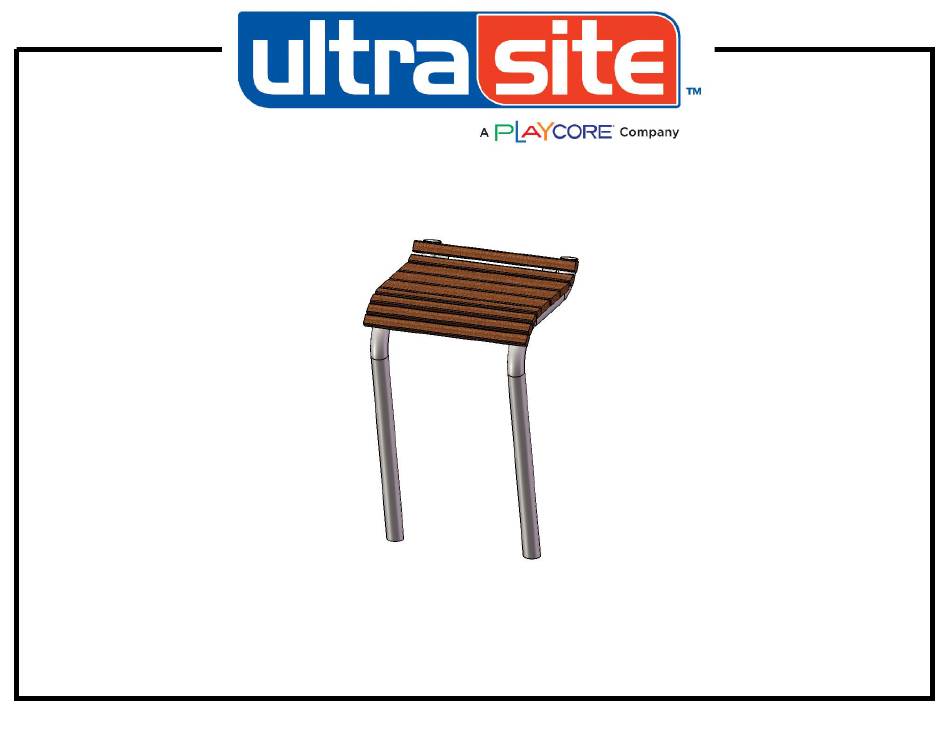

  • Page 1 Model # 411S-B2 8/31/2020 Page 1 of 10...
  • Page 2 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
  • Page 3 HARDWARE 5/16" x 1" Lag Bolt 5/16" Flat Washer 800-45-ULTRA www.ultra-site.com 8/31/2020 Page 3 of 10...

  • Page 4: Tools Required

    TOOLS REQUIRED 1/2" Wrench 1/2" Socket Wrench Tape Measure Level 800-45-ULTRA www.ultra-site.com 8/31/2020 Page 4 of 10...
  • Page 5 ULTRA SITE PRODUCT SPECIFICATIONS 411S-B2 DENALI INGROUND BENCH WITHOUT BACK Seat : Seats are made from 5/4” x 4" Batu wood. Anchorseal is immediately applied to each end after cut to prevent splitting. Planks are wiped with Acetone and then coated with a Penofin Rosewood Oil finish. Frame: 2-3/8”...
  • Page 6 COMPONENTS ITEM NO. PartNo DESCRIPTION 01-01-1196 411 Denali Leg IG LH 01-01-1195 411 Denali Leg IG RH BATU24-5/4x4- 5/4 x 4 Batu Denali Bench Plank (2’) BATU24-5/4x2- 5/4 x 2 Batu Denali Bench Plank (2’) WARNING: Overtightening of lag bolts can cause damage to lumber. 33-02-0007 5/16"...
  • Page 7 STEP 1 Attach the 2x4 planks to the legs as shown below using specified hardware. 800-45-ULTRA www.ultra-site.com 8/31/2020 Page 7 of 10...
  • Page 8 STEP 2 Attach the 2x2 planks to the legs as shown below using specified hardware. 800-45-ULTRA www.ultra-site.com 8/31/2020 Page 8 of 10...
  • Page 9 FOOTINGS 12" 20 1/4" Estimated Required Concrete: 7 - 50lb Bags of Concrete Mix 20" 18" 18" 12" 12" 800-45-ULTRA www.ultra-site.com 8/31/2020 Page 9 of 10...

  • Page 10: Overall Dimensions

    OVERALL DIMENSIONS 24" 23 5/16" 20 1/16" 22 5/16" 20" GROUND LEVEL 800-45-ULTRA www.ultra-site.com 8/31/2020 Page 10 of 10...
