- Page 1 Model # 158-R8 12/20/2017 Page 1 of 14...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 3/8" x 1-1/4" 5/16" x 1" #14 x 1" Carriage Bolt Machine Bolt Wood Screw 3/8" x 2-1/4" Carriage Bolt 5/16" Washer 3/8" Washer 5/16" Hex Nut 3/8" Hex Nut 800-45-ULTRA www.ultra-site.com 12/20/2017 Page 4 of 14...
-
Page 5: Tools Required

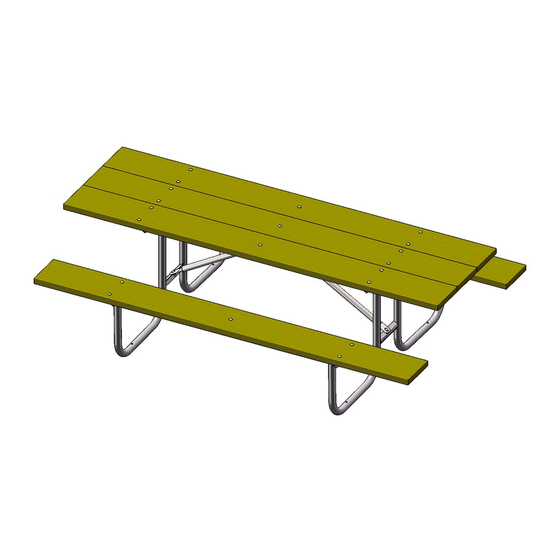

TOOLS REQUIRED 1/2" & 9/16" 1/2" & 9/16" Level Wrench Socket Wrench Tape Measure Drill with Phillips Bit 800-45-ULTRA www.ultra-site.com 12/20/2017 Page 5 of 14... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 158-R8 8’ PORTABLE PICNIC TABLE WALK-THROUGH DESIGN Top & Seats: Minimum of 96% commingled post-consumer or post-industrial recycled plastic. With a maximum of 4% due to various additives including color and UV stabilization to obtain desirable properties. Frame: 1-5/8”...
- Page 7 COMPONENTS ITEM NO. PartNo DESCRIPTION Qty. W158-1 158-1 wood frame XXX96-2x10-ST 2 x 10 Recycled Plastic Seat/Top Plank (8') 01-04-0507 center c channel 3 slot (new) 01-04-0508 wood table center bracket 01-04-0509 33-3/16" wood brace 01-04-0515 8' seat front recycled plastic superstructure angle 2 01-04-0516 8' seat back recycled plastic superstructure angle 2 01-04-0518...
- Page 8 SUPERSTRUCTURE IDENTIFICATION C-Channel Cut-Out 8' Top Superstructure Angle Two Holes 8' Seat Front Superstructure Angle Center Slot with Two Holes 8' Seat Back Superstructure Angle 800-45-ULTRA www.ultra-site.com 12/20/2017 Page 8 of 14...
- Page 9 STEP 1 Insert the 3/8" x 2-1/4" Carriage Bolts through 3 Recycled Planks for the top. Place the Table Top Center Strips and Center Cross Spacer Plate on the corresponding hardware like shown. Attach the Center Cross Spacer Plate with a #14 x 1" Wood Screw. 800-45-ULTRA www.ultra-site.com 12/20/2017...
- Page 10 STEP 2 Slide the Top Superstructure Angles on the Top Angle of the 158 Frames. The Slots in the superstructure shall be lined up with the outer slots in the Top Angle of the 158 Frames. Slide the Center C-Channel through the middle slot of the Top Superstructure. Attach partial assembly to the Top boards aligning with the hardware previously installed.
- Page 11 STEP 3 Attach the 33-3/16" Braces to the 158 Frames and the Wood Table Center Bracket using the specified hardware. Braces will attach to the center hole of the Wood Table Center Bracket. 800-45-ULTRA www.ultra-site.com 12/20/2017 Page 11 of 14...
- Page 12 STEP 4 Assemble the Front and Back Seat Superstructure Angles together using the specified hardware. Repeat for both Seats. 800-45-ULTRA www.ultra-site.com 12/20/2017 Page 12 of 14...
- Page 13 STEP 5 Slide the Seat Superstructure Angle Assembly onto the 158 Frames as shown. The Back Seat Superstructure angle will point toward the center of the the table. Attach the Seat Superstructure Angles and Recycled Planks to the 158 Frames using the specified hardware.
-
Page 14: Overall Dimensions
OVERALL DIMENSIONS 96" 57 1/4" 9 1/2" 28 1/2" 30 1/8" 18" 800-45-ULTRA www.ultra-site.com 12/20/2017 Page 14 of 14...
