Summary of Contents for Playcore barkpark BARK-478SM

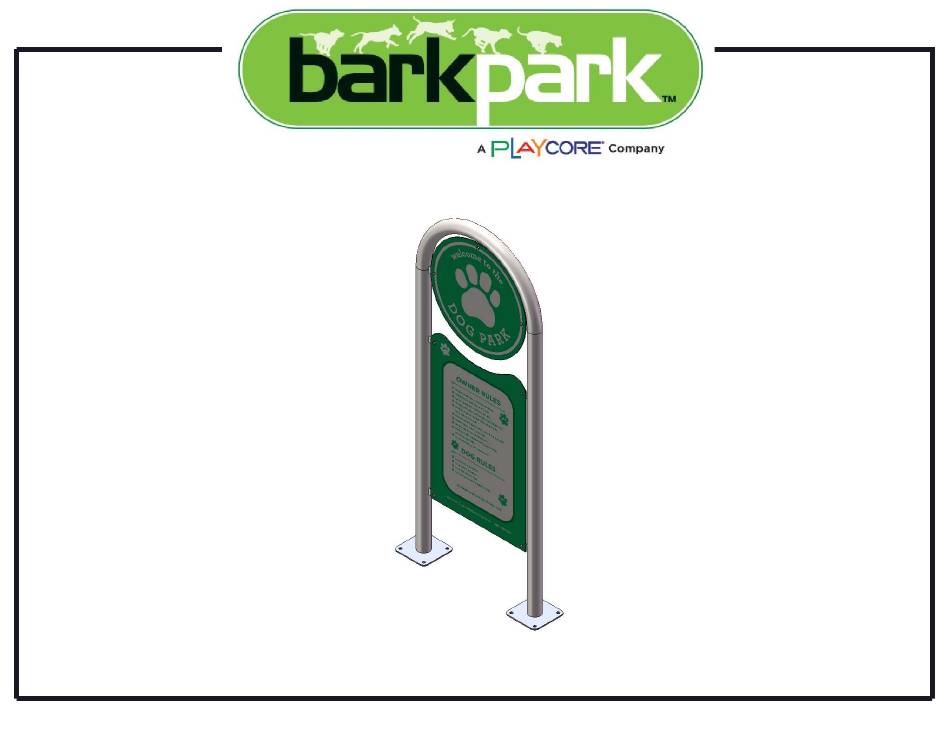

  • Page 1 Model # BARK-478SM 4/3/2017 Page 1 of 9...
  • Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
  • Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
  • Page 4 HARDWARE 5/16" x 1" Machine Bolt 5/16" Flat Washer 5/16" Kep Nut 800-45-ULTRA www.barkparkproducts.com 4/3/2017 Page 4 of 9...
  • Page 5: Tools Required

    TOOLS REQUIRED 1/2" Wrench 1/2" Socket Wrench Tape Measure Level 800-45-ULTRA www.barkparkproducts.com 4/3/2017 Page 5 of 9...
  • Page 6 ULTRA SITE PRODUCT SPECIFICATIONS BARK- 478SM SURFACE MOUNT PREMIUM WELCOME SIGN - 1 SIDED Sign Material: 12 gauge aluminum precision cut with a graphic applied. Frame Material: Frame is made from 2-7/8" Diameter Zinc Tube. Surface Mount Plates are made from 1/4" Steel Plate. All electrically MIG welded.
  • Page 7 COMPONENTS BLUE SIGN COLOR OPTION ITEM NO. PartNo DESCRIPTION Qty. 01-08-0196(Green Sign) "Rules" Sign 01-08-0257(Blue Sign) 01-08-0197(Green Sign) "Welcome" Sign 01-08-0258(Blue Sign) P-01-08-0203 Bark 478 Arch Post Assembly - SM 33-05-0001 5/16" x 1" Machine Bolt (Zinc) 33-02-0001 5/16" Zinc Plated Washer 33-01-0001 5/16"...
  • Page 8 STEP 1 Attach the Rules Sign and the Welcome Sign to the Arch Post Assembly using the specified hardware. 800-45-ULTRA www.barkparkproducts.com 4/3/2017 Page 8 of 9...
  • Page 9: Overall Dimensions

    OVERALL DIMENSIONS 37" 31 13/16" 2 7/8" 80 3/16" 12 3/4" 8" 800-45-ULTRA www.barkparkproducts.com 4/3/2017 Page 9 of 9...
