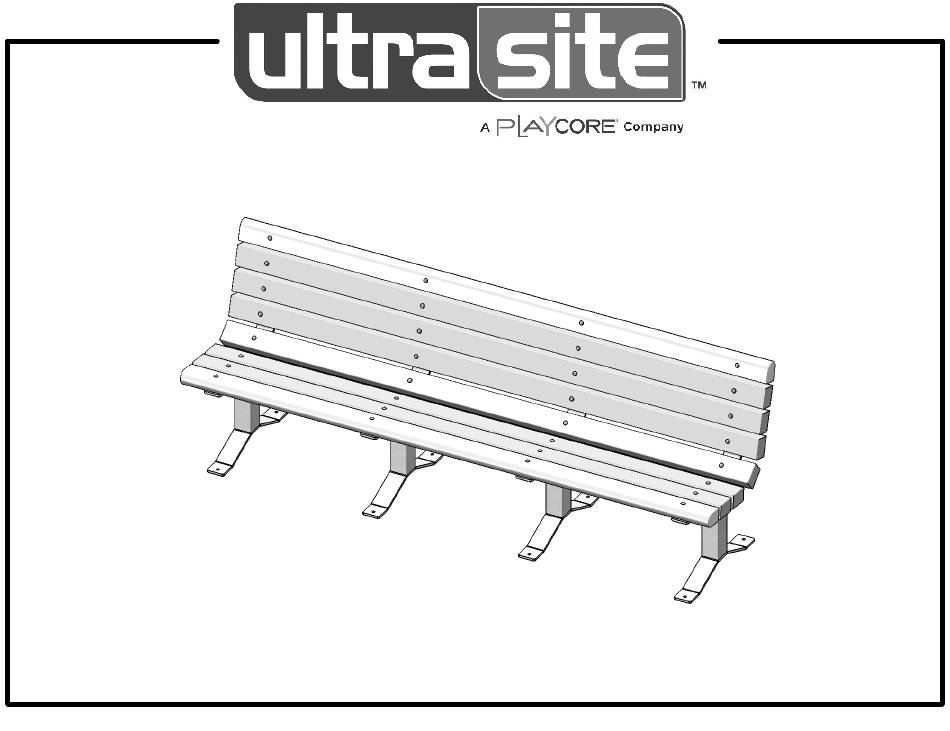

- Page 1 Model # 982SM-R38...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 3-1/4" Carriage Bolt 5/16" Washer 5/16" Hex Nut 800-45-ULTRA www.ultra-site.com...
- Page 5 TOOLS REQUIRED 1/2" Wrench Level 1/2" Socket Wrench Tape Measure 800-45-ULTRA www.ultra-site.com...
- Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 982SM-R38 SURFACE MOUNT BENCH WITH BACK Seats & Back: 3x4 planks are made from a minimum of 96% post-consumer or post-industrial recycled plastic. Contains UV stabilizers to prevent fading. Frame: 3” x 3” square x 11 gauge structural steel tubing. Seat/back and surface mount plate are fabricated from 3/8” steel plate. All electrically MIG welded.
- Page 7 COMPONENTS Attach the 8' Recycled Planks to the 982 Frames using specified hardare. ITEM NO. PartNo DESCRIPTION P-W982SM 982 SM frame BRN96-3x4-B, 3 x 4 Brown Recycled Bench Plank (8'), 3 X 4 Cedar CDR96-3x4-B, Recycled Bench Plank (8'), 3 x 4 Green Recycled Bench GRN96-3x4-B, or Plank (8'), or 3 x 4 Grey Recycled Bench Plank (8') GRY96-3x4-B...
- Page 8 OVERALL DIMENSIONS 95" 23 5/16" 35 1/8" 18" 800-45-ULTRA www.ultra-site.com...
