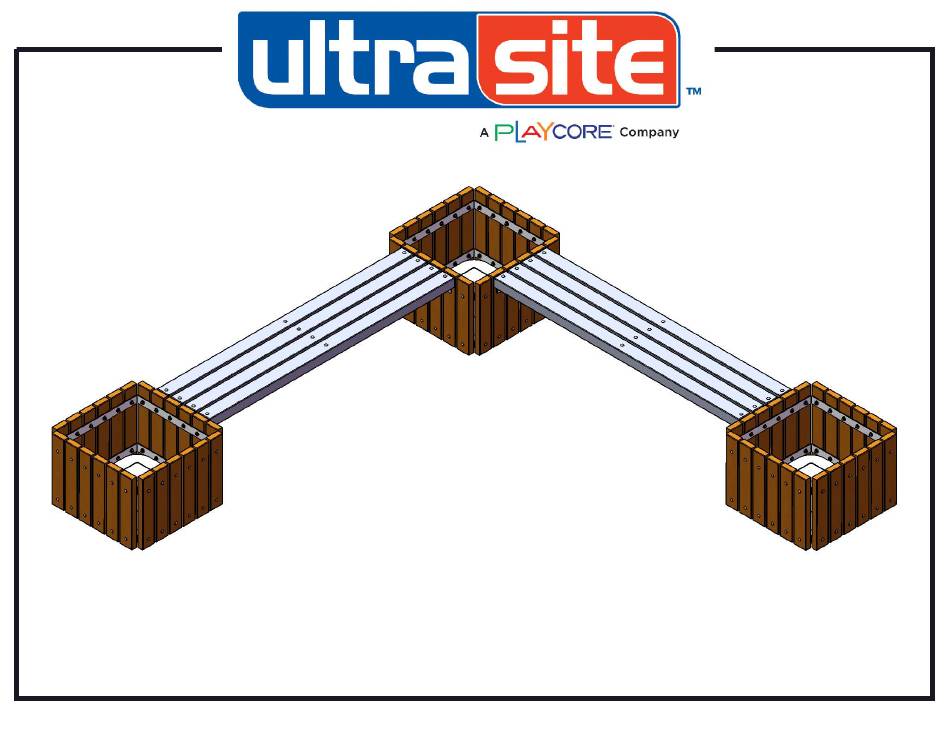

- Page 1 Model # 993-R6 1/25/2017 Page 1 of 11...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 2-1/4" Carriage Bolt 5/16" x 3-1/2" Carriage Bolt 5/16" Washer 5/16" Hex Nut 800-45-ULTRA www.ultra-site.com 1/25/2017 Page 4 of 11...
-
Page 5: Tools Required

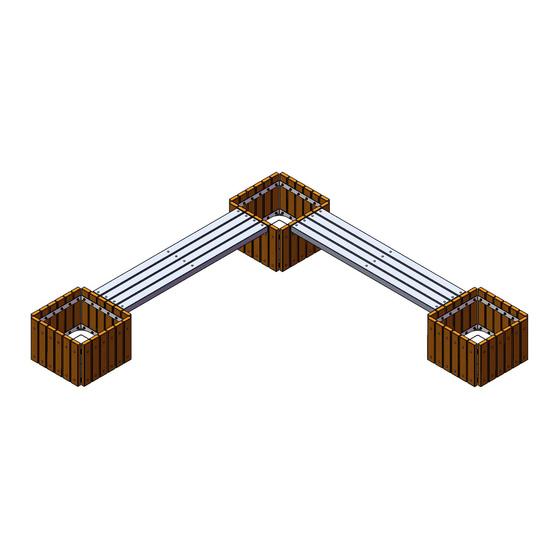

TOOLS REQUIRED 1/2" Wrench Level 1/2" Socket Wrench Tape Measure 800-45-ULTRA www.ultra-site.com 1/25/2017 Page 5 of 11... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 993-R6 BACKLESS BENCH with THREE PLANTERS Seat: 3x4 planks are made from a minimum of 96% post-consumer or post-industrial recycled plastic. Contains UV stabilizers to prevent fading. Frame: Seat support is fabricated from 3/16” angle. Planters: 2x4 planks are made from a minimum of 96% post-consumer or post-industrial recycled plastic. Contains UV stabilizers to prevent fading.
- Page 7 COMPONENTS ITEM NO. PartNo DESCRIPTION P-01-01-0243 planter bench attachment angle BRN72-3x4-PB, CDR72-3x4PB, GRN72-3x4-PB, 3 x 4 Recycled Planter Bench Plank (6') or GRY72-3x4- P-01-04-0118 952 recycled center angle P-01-01-0248 6' Recycled Planter Bench Angle (71 1/2") BRN18-2x4-PL, 2 x 4 Brown Recycled Planter Plank (18"), 2 X 4 Cedar CDR18-2x4-PL, Recycled Planter Plank (18"), 2 x 4 Green Recycled GRN18-2x4-PL,...
- Page 8 STEP 1 Attach the 18" Recycled Planks to the Bottom Ring Assembly and the L Bracket Assembly using specified hardware for each Planter. Be sure to leave 2 adjacent sides unbolted on 1 of the Planters (as shown above) and 1 side unbolted for the other 2 Planters to attach the benches. 800-45-ULTRA www.ultra-site.com 1/25/2017...
- Page 9 STEP 2 Attach the 6' Recycled Planks to the Bench Attachment Angles and the 952 Center Angle and attach the 952 Bench Angles as shown using specified hardware. 800-45-ULTRA www.ultra-site.com 1/25/2017 Page 9 of 11...
- Page 10 STEP 3 Attach the assembled Benches to the Planters using specified hardware. 800-45-ULTRA www.ultra-site.com 1/25/2017 Page 10 of 11...
-
Page 11: Overall Dimensions
OVERALL DIMENSIONS 26 3/4" 72" 26 3/4" 26 3/4" 15 1/2" 90° 72" 26 3/4" 125 7/8" 18" 800-45-ULTRA www.ultra-site.com 1/25/2017 Page 11 of 11...
