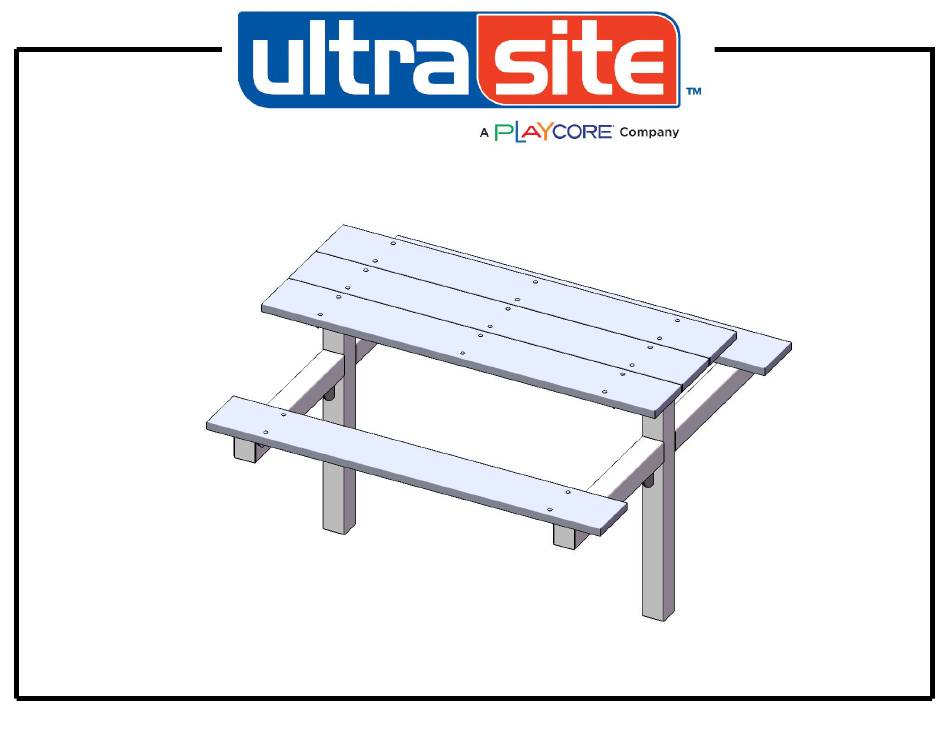

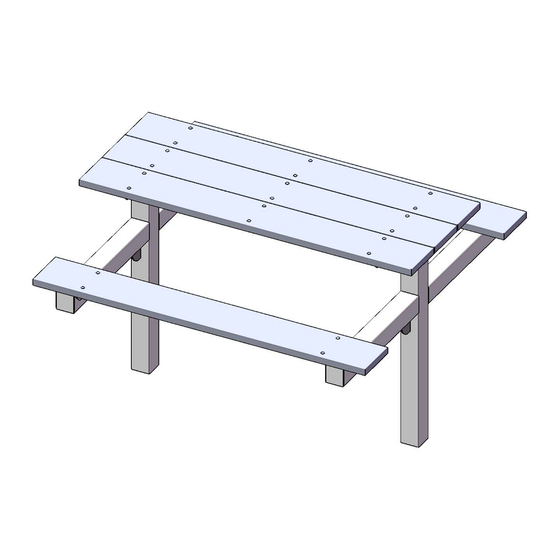

- Page 1 Model # 347S-R6 5/7/2013 Page 1 of 9...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 2-1/4" Carriage Bolt 5/16" Washer 5/16" Hex Nut 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 4 of 9...
-
Page 5: Tools Required
TOOLS REQUIRED Level 1/2" Wrench 1/2" Socket Wrench Tape Measure 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 5 of 9... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 347S-R6 6’ INGROUND PICNIC DESIGN Top & Seats: Minimum of 96% commingled post-consumer or post-industrial recycled plastic. With a maximum of 4% due to various additives including color and UV stabilization to obtain desirable properties. Frame: 4 x 4 x 11 gauge structural steel square tubing. Tubing is capped with a 4 x 4 x 3/16” steel flat bar. Arms are supported with 6” x 6”...
- Page 7 COMPONENTS Attach the Seat and Top Planks to the 347 Frames as shown using specified hardware. ITEM NO. PartNo DESCRIPTION P-W347S 347S wood frame BRN72-2x10-T, 2 x 10 Brown Recycled Table Plank (6'), 2 x 10 Ceder CDR72-2x10-T, Recycled Table Plank (6'), 2 x 10 Green Recycled Table GRN 72-2x10-T, Plank (6'), or 2 x 10 Gray Recycled Table Plank (6') or GRY72-2x10-T...
- Page 8 FOOTINGS 12" X2 Estimated Required Concrete: 9 - 50lb Bags of Concrete Mix 58 3/8" 18" 18" 24" 24" 12" 12" 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 8 of 9...
-
Page 9: Overall Dimensions
OVERALL DIMENSIONS 72" 66 1/4" 28 1/4" 9 1/4" 30 1/8" 18" 47 1/2" Ground Level 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 9 of 9...
