- Page 1 Model # 337S-R6 5/7/2013 Page 1 of 11...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 3/8" Washer 7/16" Washer 3/8" Hex Nut 5/16" x 2-1/4" Machine Bolt 7/16" Hex Nut 5/16" Washer 3/8" x 4" Carriage Bolt 5/16" Hex Nut 7/16" x 5-1/2" Machine Bolt 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 4 of 11...
-
Page 5: Tools Required

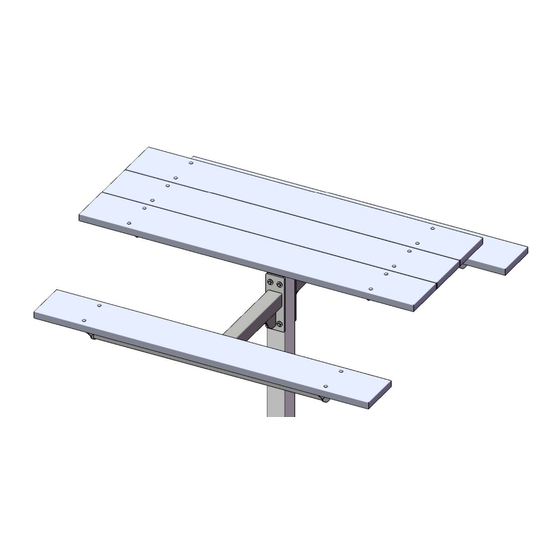

TOOLS REQUIRED 1/2", 9/16" 1/2", 9/16" and Level & 11/16" Wrench 11/16" Socket Wrench Tape Measure 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 5 of 11... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 337S-R6 RECTANGULAR INGROUND TABLE Top & Seats: Minimum of 96% commingleg post-consumer or post-industrial recycled plastic. With a maximum of 4% due to various additives including color and UV stabilization to obtain desirable properties. Frame: Main support column is 4”x 4”x 11 gauge pre-galvanized structural steel tubing. A 1/4” precision punched plate is welded to the top of the main column for the lateral table support arm.
- Page 7 COMPONENTS ITEM NO. PartNo DESCRIPTION 337S Post Assembly W337-72-T 6' 337 Top Wood Bracket Assembly W337-72-S 337 6' wood arm assem 33-02-0002 3/8" Zinc Plated Washer 33-02-0013 7/16" Zinc Plated Washer 33-02-0001 5/16" Zinc Plated Washer 33-05-0023 3/8" x 4" Machine Bolt (Zinc) 33-01-0002 3/8"...
- Page 8 STEP 1 Attach the 377 Top Bracket Assemy and the 337 Arm Assemblies to the 337 Post using specified hardware. 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 8 of 11...
- Page 9 STEP 2 Attach the 6' Planks to the Top Bracket and Arm Assemblies using specified hardware. 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 9 of 11...
-
Page 10: Overall Dimensions
OVERALL DIMENSIONS 12" Estimated Required Concrete: 5 - 50lb Bags of Concrete Mix 20" 24" 12" 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 10 of 11... - Page 11 OVERALL DIMENSIONS 72" 65" 28 1/4" 9 1/4" 30 1/8" 18 5/16" 50 1/8" Ground Level 800-45-ULTRA www.ultra-site.com 5/7/2013 Page 11 of 11...
