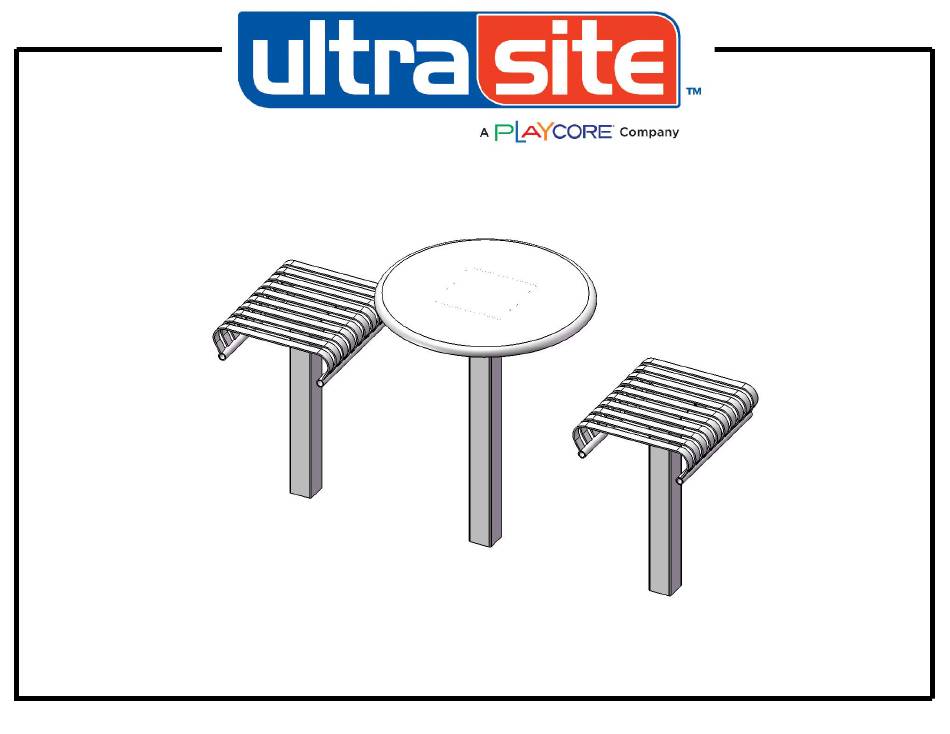

- Page 1 Model # 30SH2-S 4/8/2013 Page 1 of 9...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 1" Machine Bolt 5/16" Washer 5/16" Kep Nut 800-45-ULTRA www.ultra-site.com 4/8/2013 Page 4 of 9...
-
Page 5: Tools Required
TOOLS REQUIRED Level 1/2" Wrench 1/2" Socket Wrench Tape Measure 800-45-ULTRA www.ultra-site.com 4/8/2013 Page 5 of 9... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 30SH2-S INGROUND SOLID TABLE W/ 2 SLAT SEATS Top & Seats: 11 gauge steel flat, spun to form. Seat slates are fabricated from a ¼” plate. The understructure /attachment plates are fabricated from 7 gauge x 1-1/2” flat bar. Top is additionally supported to the outer frame with 7 gauge x 1-1/2” flat bar. All electrically MIG welded.
- Page 7 COMPONENTS Attach the 36" Round Table to the Table Post and the 24" Slat Seats to the Seat Posts as shown using specified hardware. ITEM NO. PartNo DESCRIPTION V30S-T 30 Inground Table Post V30S-S 30 Inground Seat Post SN36-T 36" Round Solid Spun Top P-01-04-0240 Hamilton Table Seat w/out back 24"...
- Page 8 FOOTINGS 12" X4 Estimated Required Concrete: 10 - 50lb Bags of Concrete Mix 18" 18" 18" 18" 12" 12" 12" 800-45-ULTRA www.ultra-site.com 4/8/2013 Page 8 of 9...
-
Page 9: Overall Dimensions
OVERALL DIMENSIONS 24" 21 3/16" 36" 86 15/16" 36" 29 13/16" 18" Ground Level 800-45-ULTRA www.ultra-site.com 4/8/2013 Page 9 of 9...
