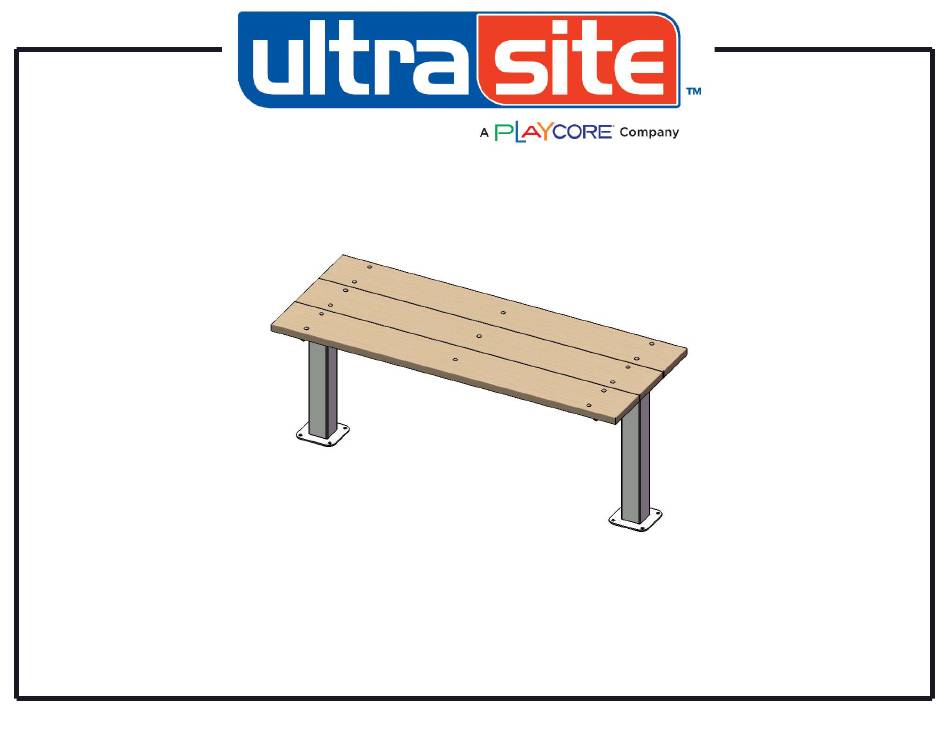

- Page 1 Model # 349SMU-W6 10/23/2018 Page 1 of 8...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 3/8" x 2-1/4" Carriage Bolt 3/8" Washer 3/8" Hex Nut 800-45-ULTRA www.ultra-site.com 10/23/2018 Page 4 of 8...
- Page 5 TOOLS REQUIRED 9/16" Wrench 9/16" Socket Wrench Tape Measure Level 800-45-ULTRA www.ultra-site.com 10/23/2018 Page 5 of 8...
- Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 349SMU-W6 6’ SURFACE MOUNT UTILITY TABLE Top & Seats: Pressure Treated- 2" x 10" No. 1 Southern Yellow Pine pressure treated lumber. Redwood Stain- 2" x 10" No. 1 Southern Yellow Pine with a redwood stain wood preservative. Untreated- 2"...
- Page 7 COMPONENTS Attach the Wood Planks to the Top Legs as shown using specified hardware. ITEM NO. PartNo DESCRIPTION Qty. W349SM-T Wood 349SM Top Leg XXX72-2x10-T1 2 x 10 Pressure Treated/Untreated/Redwood Stained Top Plank (6') 3 33-06-0113 3/8" x 2-1/4" Carriage Bolt (Galv) 33-02-0010 3/8"...
- Page 8 OVERALL DIMENSIONS 72" 28 1/4" 30" 800-45-ULTRA www.ultra-site.com 10/23/2018 Page 8 of 8...
