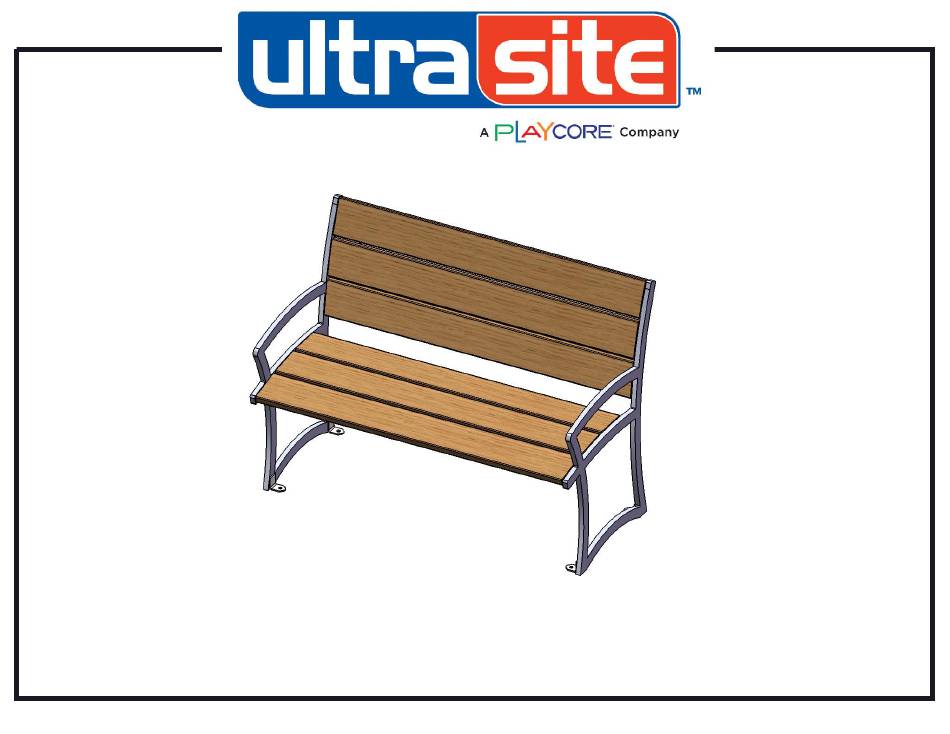

- Page 1 Model # 71-I4 2/3/2017 Page 1 of 7...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 1" Lag Bolt 5/16" Flat Washer 800-45-ULTRA www.ultra-site.com 2/3/2017 Page 4 of 7...

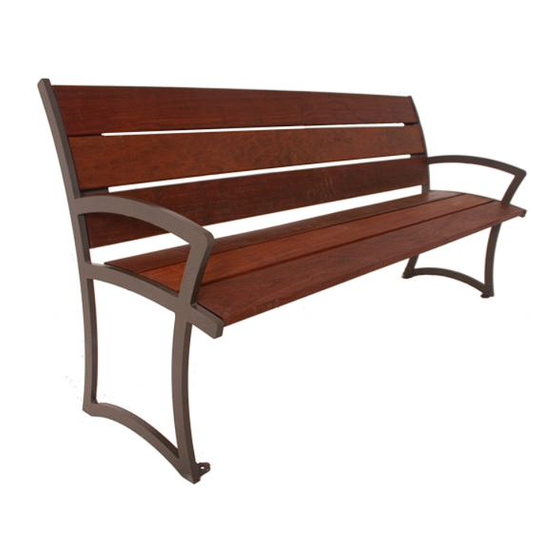

- Page 5 ULTRA SITE PRODUCT SPECIFICATIONS 71-I4 PORTABLE BENCH WITH BACK Seats: Seats are made from 1-1/4” x 6" Ipe wood. Reinforced with 7 gauge thick support ribs. Legs are fabricated from 3/4” steel plate with 7 gauge attachment plates. Mounting plates shall be made from 7 gauge steel. All electrically MIG welded. Coating: Steel is sandblasted to near white condition.
- Page 6 OVERALL DIMENSIONS Attach the Ipe Wood Planks to the Madison Endframes and the Attachment Plate using the specified hardware. ITEM NO. PartNo DESCRIPTION Qty. 01-01-0653 madison w/ back RH endframe wood-welded 1 01-01-0654 madison w/ back LH endframe wood-welded 1 01-01-0643 5/4"...
- Page 7 OVERALL DIMENSIONS 26 5/16" 36 1/4" 18 3/4" 49 3/4" 800-45-ULTRA www.ultra-site.com 2/3/2017 Page 7 of 7...
