Elite Screens Starling Tab-Tension CLR 3 Series User Manual

_______________________________________________________________________________________________________________________________

Product Description

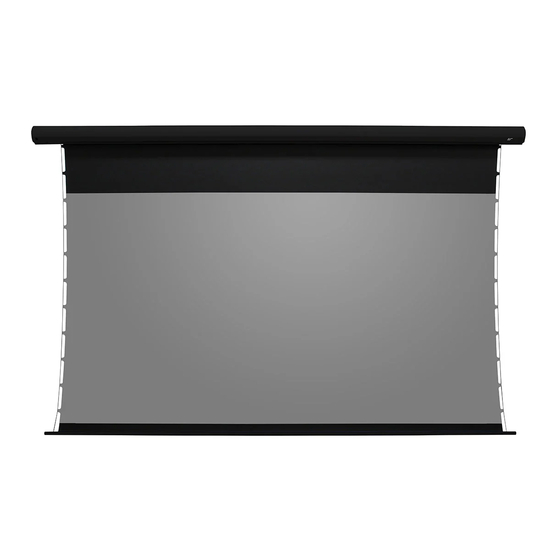

The Starling Tab-Tension CLR®/ CLR® 3 Series is an electric projection screen that uses Elite Screens' Ceiling Light
Rejecting® technology. The CLR® is an optical lens front projection material designed to filter and absorb overhead
light while directing table-top mounted ultra-short throw projection. Its best for family rooms, educational facilities,
conference rooms or any applications in which incident light is a factor.
Elite Screens allows a 1.5% tolerance within the viewing surface for expansion and contraction of the
screen materials over time.

Screen Maintenance

Dust and dirt on the projection screen surface will affect the quality and performance of the projection image. For
optimal results we advise to pay attention to the following instructions.
1) The screen surface has a horizontal lens structure. DO NOT wipe the screen up and down or in a circular
motion. Wipe very gently from left to right only.
2) Please clean the dust on the screen surface with a soft brush or microfiber cloth (rough towel or cloth may
damage the screen's surface).
3) Gently wipe the screen with a lightly moistened white lint free cloth with water or with a neutral detergent
(1 mL/0.33 oz) mixed with water (1000 mL/33.8 oz).
Notes: The following precautions should always be followed to avoid damaging the material, which is not
covered under warranty.
•
Don't touch the screen material to avoid leaving fingerprints.
•
Don't point to the screen material with a fingertip or other sharp objects to prevent damage to the material.
•
Don't use acetone, benzene, alcohol and any other organic solvents to clean the screen material. Using such
chemicals will permanently damage the screen
Important Safety & Warning Precautions
Make sure to read this user's guide and follow the procedures below.
Caution: The screen's Black Top Drop is already set to its maximum drop limit. There is NO extra black drop
material in the roller. Please be aware that altering the vertical limit switch to drop the screen material off the roller
voids your warranty with Elite Screens
for hardwire installations) to this unit are prohibited and will void your warranty.
For more information, please contact our Technical Support Department at
•
Please retain this user's guide for future reference.
•
To avoid damaging the unit, do not use with any unauthorized accessories not recommended by the
manufacturer.
•
Handle the unit carefully during transportation to avoid any damages.
•
To ensure safe and reliable operation, make sure the power connection is secure.
•
The power source should be close to the unit and easily accessible.
•
Do not install the unit on uneven, or inclined surfaces.
•
To avoid electrical shock or product damage, do not install this device in a damp place.
•
Do not place any heavy objects over the power cord.
•
Position the power cord properly to avoid creating a trip hazard.
Rev. V07182023DT (DSxxxx)
Starling Tab-Tension CLR®/CLR® 3 Series
Ceiling/Ambient Light Rejecting (CLR®/ALR) Electric
®
. Unapproved changes or modifications (except for cutting the power cord
1
Wall/Ceiling Projection Screen
User's Guide – E/H Type (RC1 V1.0)
