FTE101UH2-CLR
101"
16:9
FTE101XH2-CLR
101"
16:9
FTE121UH2-CLR
121"
16:9
FTE121XH2-CLR
121"
16:9
FTE101UH2-CLR
101"
16:9
FTE101XH2-CLR
101"
16:9
FTE121UH2-CLR
121"
16:9
FTE121XH2-CLR
121"
16:9
Note: Data Error may be +/- 1"
The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a
manufacturer may offer product advice, it may be taken or disregarded at the integrator's discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
3/7/2022

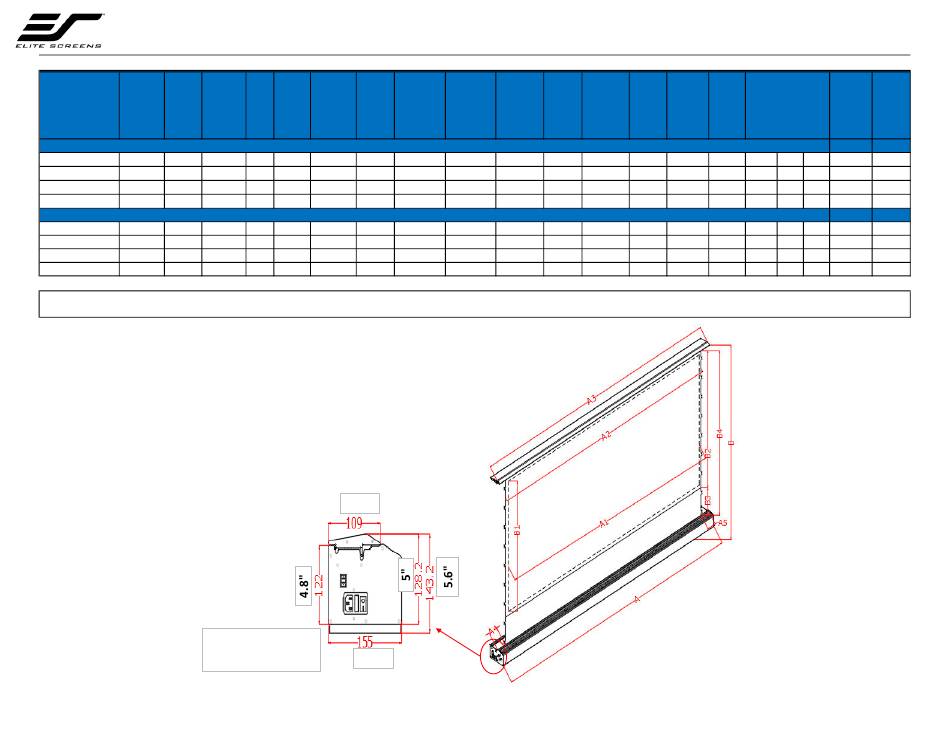

Kestrel Tab-Tension 2 CLR ® Dimensions Table
Case
Viewable
Screen
Screen
Gain
Length
Width
Width
Material
(A)
(A1)
(A2)
CLR® 3
0.8
97.2
88.0
88.9
CLR® 3
0.8
97.2
88.0
88.9
CLR® 3
0.8
114.7
105.5
106.0
CLR® 3
0.8
114.7
105.5
106.0
CLR® 3
0.8
2469
2236
2257
CLR® 3
0.8
2469
2236
2257
CLR® 3
0.8
2912
2679
2693
CLR® 3
0.8
2912
2679
2693
4.3"
Unit of Measure:
mm /
inch
6.1"
Distance
Distance
Top Cover
between
between
Overall
Length
right end
left end to
Height
(A3)
to fabric
fabric
(B)
(A4)
(A5)
Unit: inch
97.0
3.8
3.4
65.4
97.0
3.8
3.4
65.4
114.5
3.6
3.2
78.6
114.5
3.6
3.2
78.6
Unit: mm
2464
96
87
1660
2464
96
87
1660
2907
92
81
1996
2907
92
81
1996
www.elitescreens.com
Bottom
Viewable
Fabric
Screen
Black
Packing Dims
Height
Height
Height
Border
(B1)
(B2)
(B4)
(B3)
49.5
51.7
8.0
59.7
103.4 10.8 10.2
49.5
51.7
8.0
59.7
103.4 10.8 10.2
60.9
73.0
12.0
73.0
120.7 10.8 10.2
60.9
73.0
12.0
73.0
120.7 10.8 10.2
1258
1314
203
1517
2625
1258
1314
203
1517
2625
1548
1853
305
1853
3065
1548
1853
305
1853
3065
Net
Gross
(LxWxH)
Weight
Weight
Lbs
Lbs
57.3
70.6
57.3
70.6
66.1
77.6
66.1
77.6
Kgs
Kgs
275
260
26.0
32.0
275
260
26.0
32.0
275
260
30.0
35.2
275
260
30.0
35.2
FTE-CLR
Advertisement
Table of Contents
Related Manuals for Elite Screens Kestrel Tab-Tension 2 CLR
Summary of Contents for Elite Screens Kestrel Tab-Tension 2 CLR
- Page 1 Note: Data Error may be +/- 1" The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.

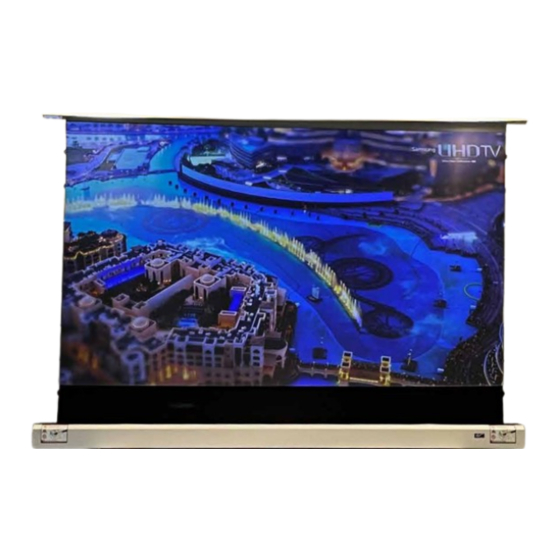

- Page 2 The Kestrel Tab-Tension 2 CLR® is an electric floor-rising projector screen with Ceiling Light Rejecting® technology to combat the washout effect from overhead lighting in bright room environments. The StarBright CLR® material is configured in a tab-tensioned format to ensure a taut, flat, and ripple-free projection surface suitable for ultra-short throw projectors.
-
Page 3: Important Safeguards
Kestrel Tab-Tension 2 CLR Series ® ® Floor Rising Ceiling/Ambient Light Rejecting (CLR /ALR) Tab-Tensioned Motorized Screen User’s Guide IMPORTANT SAFEGUARDS Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. - Page 4 User’s Guide Kestrel Tab-Tension 2 CLR Series ® Do not use this unit under the following circumstances. • Disconnect the power cord under the conditions of heavy rain, wind, thunder, or lightning. • Avoid direct Sunshine, rain shower and moisture.
-
Page 5: Fcc Regulatory Compliance
User’s Guide Kestrel Tab-Tension 2 CLR Series ® FCC Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device is susceptible to receiving interference that may cause undesired operation. -
Page 6: Parts Identification
User’s Guide Kestrel Tab-Tension 2 CLR Series ® PARTS IDENTIFICATION Front of screen Material ® Tab/Strings Bottom black masking border Power terminal / Power switch Back of screen Closing Panel/Lid Cross-rising spring scissor mechanism Case/Housing Feet Note: Please always store the screen flat horizontally. Never store the screen in a vertical position as it will permanently damage the screen’s structure, shift the material, and cause... -
Page 7: Screen Operation
1. After ensuring the power outlet & screen are compatible (voltage), plug the power cord into the power outlet. 2. Once the screen has power, you’ll be able to control it using any of the 4 methods described below. 4 ways to control your Kestrel Tab-Tension 2 CLR Screen ®... - Page 8 User’s Guide Kestrel Tab-Tension 2 CLR Series ® 4. USB RF wireless trigger (Item D): The RF wireless trigger (D) can synchronize your projector’s power cycle to the screen’s UP/DOWN operation. ※ The trigger has been synchronized to your electric screen.
- Page 9 User’s Guide Kestrel Tab-Tension 2 CLR Series ® Notice to Installer: PROPER PROJECTOR PLACEMENT The StarBright CLR ® is exclusively for tabletop/bottom mounted ultra-short throw projectors. See illustrations below for limits and criteria. 1) Tabletop mounted ultra-short throw projection illustration...
- Page 10 Prevent injury or damage to the screen when an object interferes with the screen’s descend during its operation. The screen is equipped with an anti-pinch safety feature which prevents the closing panel/lid to stop when it detects an object ® For more information, technical support or your local Elite Screens http://www.elitescreens.com/ contact, please visit www.elitescreens.com...
- Page 11 Kestrel Tab-Tension CLR® Series Floor Rising Ceiling/Ambient Light Rejecting (CLR®/ALR) Tab-Tensioned Motorized Screen User’s Guide IMPORTANT SAFEGUARDS Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. Caution: The screen’s Black Bottom Drop is already set to its maximum drop distance.
- Page 12 WARNING Individual modifications to this product are prohibited and will void the manufacturer’s warranty. Please contact the Elite ProAV Customer Service Team with any questions. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 13 PARTS IDENTIFICATION Front of screen Top black masking border DarkUST Material Tab/Strings Bottom black masking border Power terminal/ Power switch Closing Panel/Lid Back of screen Cross-rising spring scissor mechanism Case/Housing Feet Note: Please always store the screen flat horizontally. Never store the screen in a vertical position as it will permanently damage the screen’s structure and void the warranty.
- Page 14 SCREEN OPERATION Electric Current: Depending upon region, your Elite ProAV Screen will operation 110v, or 220v voltage. 1. After ensuring the power outlet & screen are compatible (voltage), plug the power cord into the power outlet. 2. Once the screen has power, you’ll be able to control it using any of the 4 methods described below. 4 ways to control your Kestrel Tab-Tension CLR®...
-
Page 15: Notice To Installer
Notice to Installer: Proper Projector Placement for StarBright CLR®. The StarBright CLR® is exclusively for table- mounted ultra-short throw projectors as illustrated in example 1 below. Overhead placement or a standard projector will make the image very dark, on account of the screen’s absorbent layer deflecting light that is not aligned with its reflective angle. - Page 16 CHARGING THE RF/IR REMOTE CONTROL Charge the RF or IR remote by plugging the Micro USB Charging cable (Item E) into any USB power source and into the left side of your RF or IR Remote Control. While charging, you will see a solid red light above the touch sensitive buttons.
-
Page 17: Care & Use
Screen Material Maintenance Care General Cleaning Instructions Care & Use Proper care and use will maximize the life of the material and bring you years of enjoyment. Care for the following materials: AcousticPro 1080P2, AcousticPro 1080P3, AcousticPro UHD, CineWhite ® , CineWhite ®... - Page 18 • Don’t point to the screen material with sharp objects to prevent damage to the material. • Don’t use acetone, benzene, alcohol and any other organic solvents to clean the screen material. Using such chemicals will permanently damage the screen. For a local Elite Screens contact or Technical Support, Please visit www.elitescreens.com...
